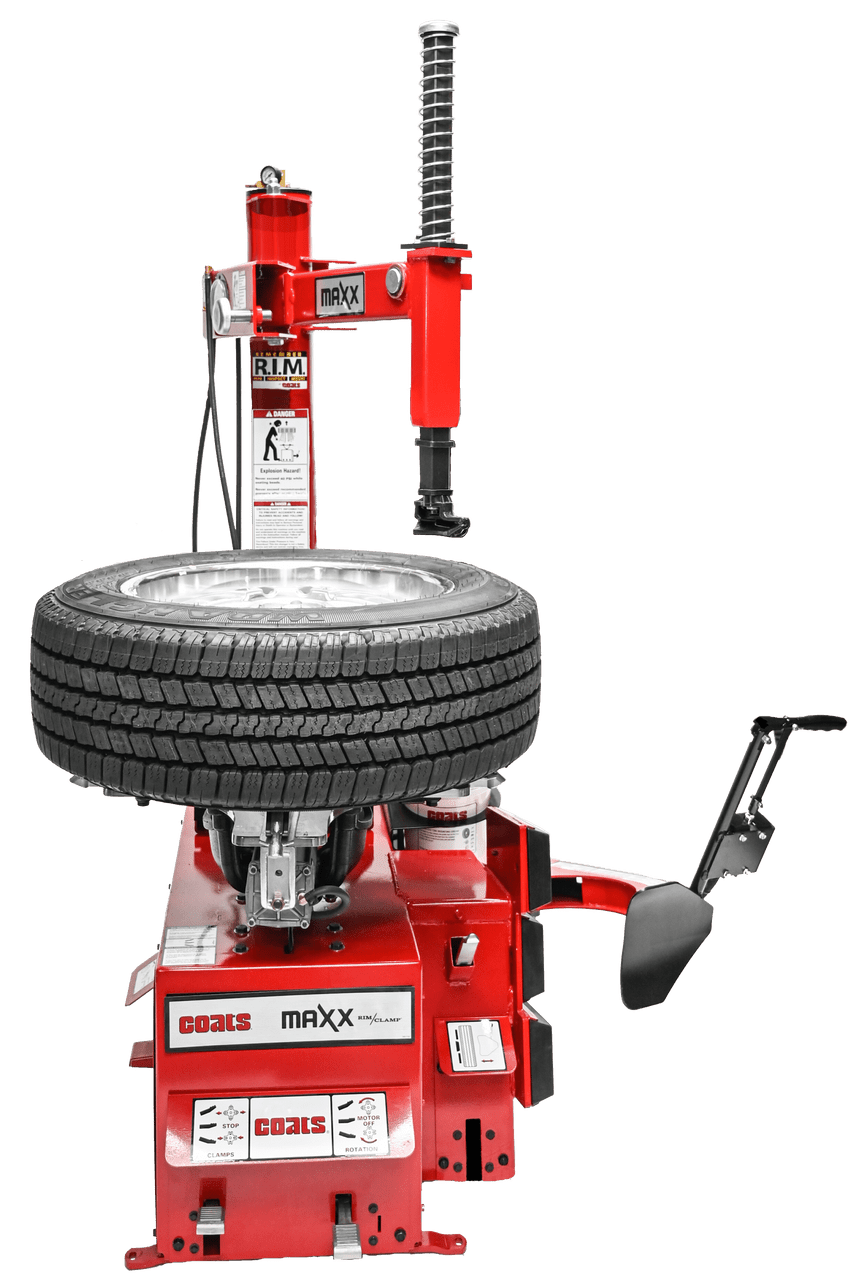

Coats MAXX50 Maxx 50 Tire Changer

The Coats Maxx picks up where the X-Series left off but goes further. This unit has been completely redesigned from the ground up based on extensive customer R&D and represents what it takes to make it in the high-volume tire business.

Features:

• Tested up to 250,000 bead breaking cycles for ultimate durability in the harshest working environments.
• Seal difficult assemblies with ease with more air, more quickly.
• Save time by not having to index the tabletop when working on large assemblies, reducing pedal presses and allowing techs to keep moving.
• Maxx can grow along side your business with our field-upgradable machines.

Specifications:

• Wheel Handled | Alloy, Steel for Car & Light Truck
• Rim Diameter | 6-24"
• Maximum Tire Diameter | 50"
• Maximum Rim Width | 16"
• Bead Loosening Width | Up to 22" Wide
• Wheel Clamping System | 4 Clamps, Air Cylinder Operated
• Bead Seating Air Volume | 5.4 Gallons in Tower
• Electric Drive System | 110V Electric Motor
• Footprint | 74”w x 81”h x 44”d
• Ship Weight | 750 lbs. Low center of gravity for stability
• Warranty | 3 Year Parts, 6 Months Labor

Included Accessories:

• 85009048 Paste Lube Bracket & Brush
• 8183061 Polymer Duckhead
• 8184926 Steel Clamps
