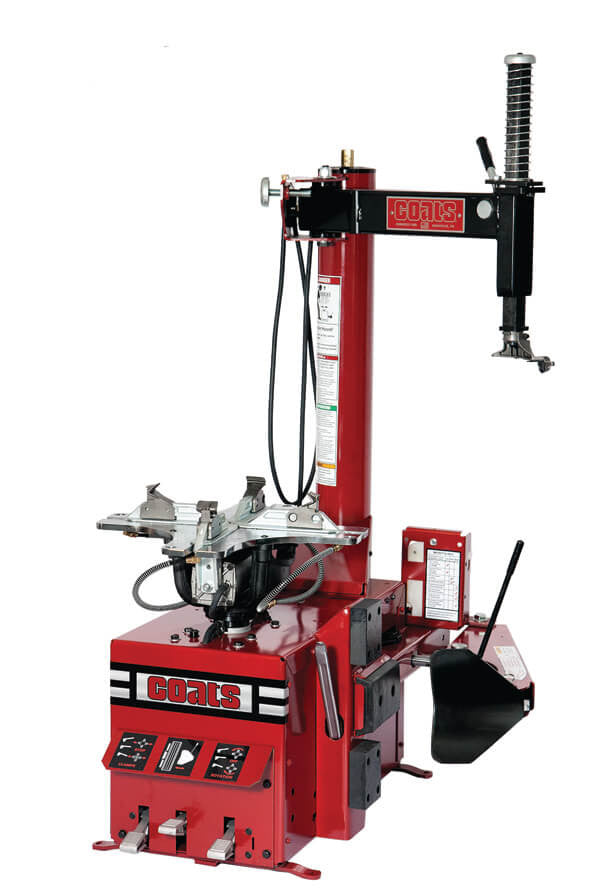

Coats RC-45 Tire Changer

Reliable. Dependable. Durable.

BUILT UPON LEGENDARY COATS STANDARDS – BUILT TO LAST.
The Coats RC Series Rim Clamp tire changers are built upon the standards of the legendary Coats Rim Clamp tire changer. Updated for today's high-speed, general service repair shop, the RC Series will execute day after day, which your shop not only demands, but also deserves.

Top Features:

• MANUAL SWING ARM | The Manual Swing Arm is easily adjusted so that the Coats Duckhead Mount/Demount Tool is properly fitted to the tire rim.
• BUILT-IN BEAD SEALING JETS | Quickly seals beads while tabletop inflation provides a faster workflow.
• CONVENIENTLY PLACED FOOT PEDALS | Provide precise control over every step of the changing process. The pedals are ideally placed for fluid technician movements while mounting and demounting tires.

Features:

• INFLATION GAUGE | The easy-to-read gauge accurately displays tire pressure and includes a damage resistant Lexan faceplate. You can easily inflate from 0 to 60 PSI, with a built-in pressure limiter, ensuring technician safety.
• COMPACT CHASSIS | The machine fits easily into limited space applications with its small footprint.
• POWERFUL 1 HP MOTOR | The air and electric drive system provides ample power. The air motor allows for advanced wheel control.

Specifications:

• Wheel Handled | Alloy and Steel for Car and Light Truck
• Rim Diameter | 6" - 24" External
• Maximum Tire Diameter | 50" Max
• Maximum Rim Width | 10.5" Max
• Bead Loosening System | Foot Control, Up to 10.5" Wide
• Wheel Clamping System | 4 Clamps, Air Cylinder Operated
• Mount/Demount Mechanism | Swings Away for Better Access and Durability
• Helper Devices | N/A
• Bead Seating Air Volume | 3.4 Gallons in Tower
• Inflation Gauge | 0 - 60 psi
• Air Supply Gauge | 0 - 300 psi
• Air Drive System | 1.5 HP Air Motor, 110 - 175 psi, 15 scfm (Air Model Only)
• Electric Drive System | 1 HP Electric Motor, 115 V, 60 Hz, 15amp (Electric Model Only)
• Footprint | 35"w x 44"d x 70"h
• Ship Weight | 600 lbs.
• Warranty | 1 Year Parts, 6 Months Labor
• Part Number:
• Air Model | 85609949
• Electric Model | 8560994901

Accessories (Included):

• *8182961 | Duckhead Mount/Demount Tool Inserts - 2

Optional Accessories (Sold Separately):

• 8183606 | Bead Loosener Shoe Socks - 2
• 85009048 | Paste Lube Bracket & Brush
• 8183710 | Paste Lube
• 85607787 | Grip-Max Plus Clamps - 4
• 8560716108 | Grip-Max Plus Grips - 8
• 8184432 | Grey High Spoke Duckhead Mount/Demount Tool
• 85608959 | Hybrid Duckhead Mount/Demount Tool
• 85000783 | Lift Tool Socks - 10
• 85610105 | Premium Storage Cabinet
• 8183061 | Plastic Duckhead Mount/Demount Tool
• 85609077 | Manual Bead Depressor Kit
• 8183604 | Steel Clamp Booties
• 85607770 | EL-X Express Lane Inflation System
• 85608609 | Point of Use Lift System
• 85606545 | Auxiliary Bead Sealer (ABS)
