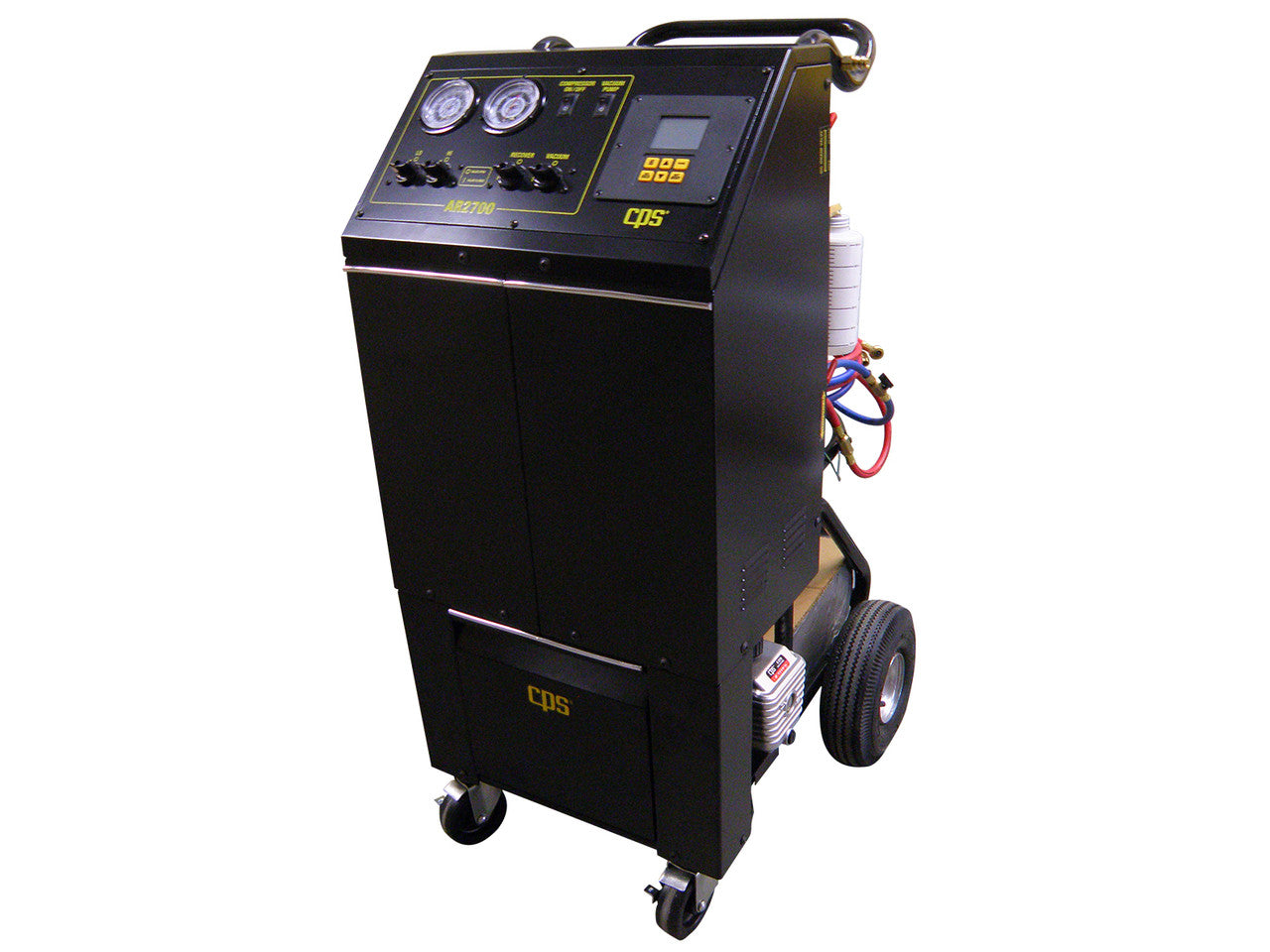

CPS AR2700TA

Semi-Automatic simple to use Recovery, Recycle, Evacuate, and Recharge machine. Built for the working man. Comes with a 50 lb tank.

Features:

• Semi-Automatic simple to use Recovery, Recycle, Evacuate, and Recharge machine. Built for the working man.
• AR2700TA: RRR system for large capacity applications.
• Utilizes manual ball valves in place of solenoids making the AR2700TA impervious to contamination and sealants.
• Simple operation for oil waste and air purge.
• Microprocessor-controlled recharge makes the AR2700TA accurate to 1/10 oz or 4 grams.
• Easy to read high and low-pressure gauges.
• High-efficiency VP6D 6 CFM vacuum pump will dehydrate the system to 50 microns.
• All steel durable construction.
• The AR2700TA can be programmed for 50LB, 90LB, 40 Kilogram tanks.
• Comes with a 50Lbs tank included with the purchase of an AR2700.
• 115 Volts, 50/60 Hz, Single phase, PSI/KPa gauges.
• 1-year warranty.

Specifications:

• Compressor | 12.67 cc Twin Cylinder Oil-less
• Tank Size | 50 lbs
• Heater Band | Yes
• Condensor | Yes
• Dimensions | 22"w x 24.5"d x 42"h
• Weight | 120 lbs/54.5 kg (not including tank)
• Operating Range | 320F (00C) to 1200 F (490 C)
• Power | 115 VAC 60 Hz 1Ph
• Power Consumption | 500 W
• Suction Pressure Gauge | -30 inch Hg to 125 PSIG
• Discharge Pressure Gauge | 0 to 500 PSIG
• Filtration | 16 cubic inch drier w/ moisture indicator
• Manual Control Valves | Ball Type Valves to control HI, LO, Recover, and Vacuum
• Charging Valve | 12 VDC Solenoid Valve
• Construction | 1” Heavy duty tubular frame construction; 10” pneumatic wheels, 4.5” swivel casters
• Overload Pretection | 15A Thermal Breaker
• High Pressure Shut-off | 450 PSIG (30 bar)
• Refrigerants* | R134a, R12, R22, R502, R4040a, R402a, R401a, R407c, R409a
• Refrigerant | Single
• Pack Size | 43” X 25 ½” X 28” (1092.2 x 647.7 x 711.2 mm)
• Shipping Box Size | 43”h x 25-½”w x 28”d (1092.2 x 647.7 x 711.2 mm)
• Quantity Of Packs/Shipping Box | 1
• Shipping Box Weight | 230 lbs
• Product Warranty | 1 year
