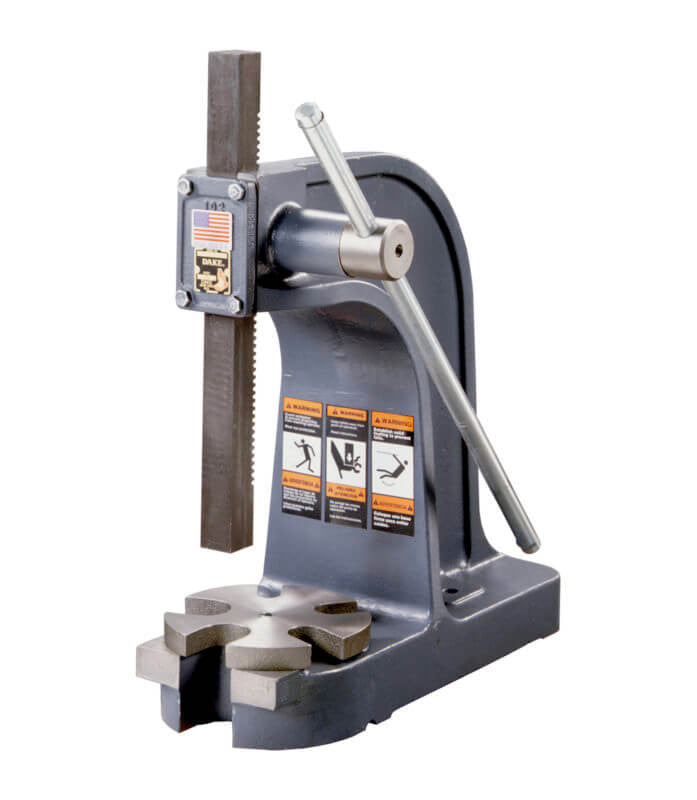

Dake 901006 Model 1 3 Ton Single Lever Slotted Table Arbor Press

The most heavy duty arbor press in our single leverage line, this 3 ton press features a slotted table plate and base opening. Add an optional pedestal to make this machine a favorite in your shop.

Features:

• Shimmed ram cap permits take-up for potential wear.
• Smooth action gears permit finite ram control.
• Friction Brake
• Adjustable handle allows convenient handle positioning.
• Base opening and slotted table plate for arbor work.

Standard Equipment:

• Cast Iron Base
• Ram
• Slotted Table Plate
• Adjustable Handle

Model Options (Sold Separately):

• Pedestal

Specifications:

• Model Number | 1
• Part Number | 901006
• Capacity | 3 Ton
• Leverage Ratio | 36:1
• Ram Size | 1.25" x 1.25" x 16.5"
• Maximum Diameter Work | 14"
• Throat | 7"
• Largest Arbor | 2"
• Maximum Ram to Table | 11.5"
• Minimum Ram to Table | 10.75"
• Capacity Over Table | 11.5"
• Capacity Over Table Plate | 10.75"
• Base Length | 18"
• Base Width | 7.25"
• Height | 19"
• Weight | 130 lbs
