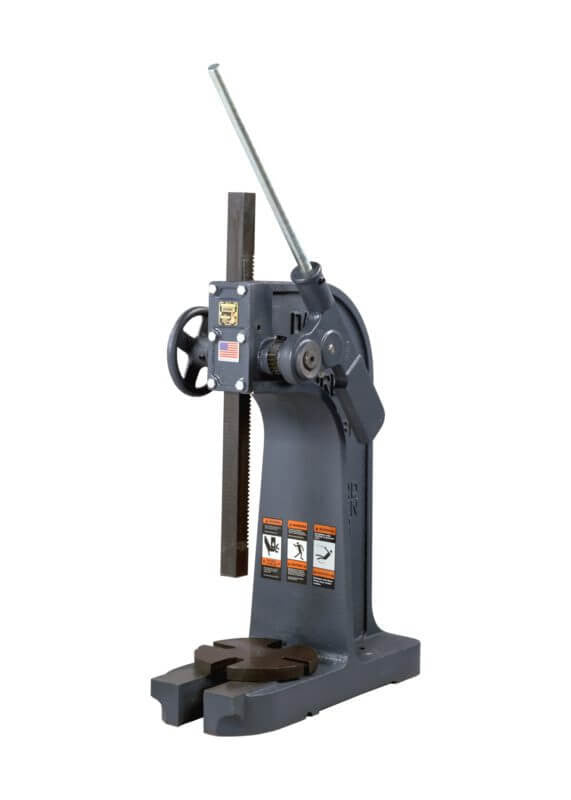

Dake 902002 Model 1-1/2B 3 Ton Ratchet Lever Arbor Press

3 ton ratchet lever arbor press that is designed for broaching. An optional pedestal is available.

Features:

• Ratchet device permits lever to be used in most convenient position.
• Counterweight returns lever quickly after downstroke.
• Handwheel advanced ram to work quickly.

Standard Equipment:

• Cast Iron Base
• Handwheel
• Ram
• Notched Table Plate
• Counter weight

Specifications:

• Model Number | 1-1/2B
• Part Number | 902002
• Capacity | 3 Ton
• Leverage Ratio | 48:1
• Ram Size | 1-1/4" x 1-1/4" x 24-1/2"
• Maximum Diameter Work | 14"
• Throat | 7"
• Largest Arbor | 2"
• Maximum Ram to Table | N/A
• Minimum Ram to Table | N/A
• Capacity Over Table | 18-1/4"
• Capacity Over Table Plate | 17-1/2"
• Base Length | 21"
• Base Width | 8-1/4"
• Height | 28"
• Weight | 196 lbs

Model Options (Sold Separately):

• 903002 Pedestal
