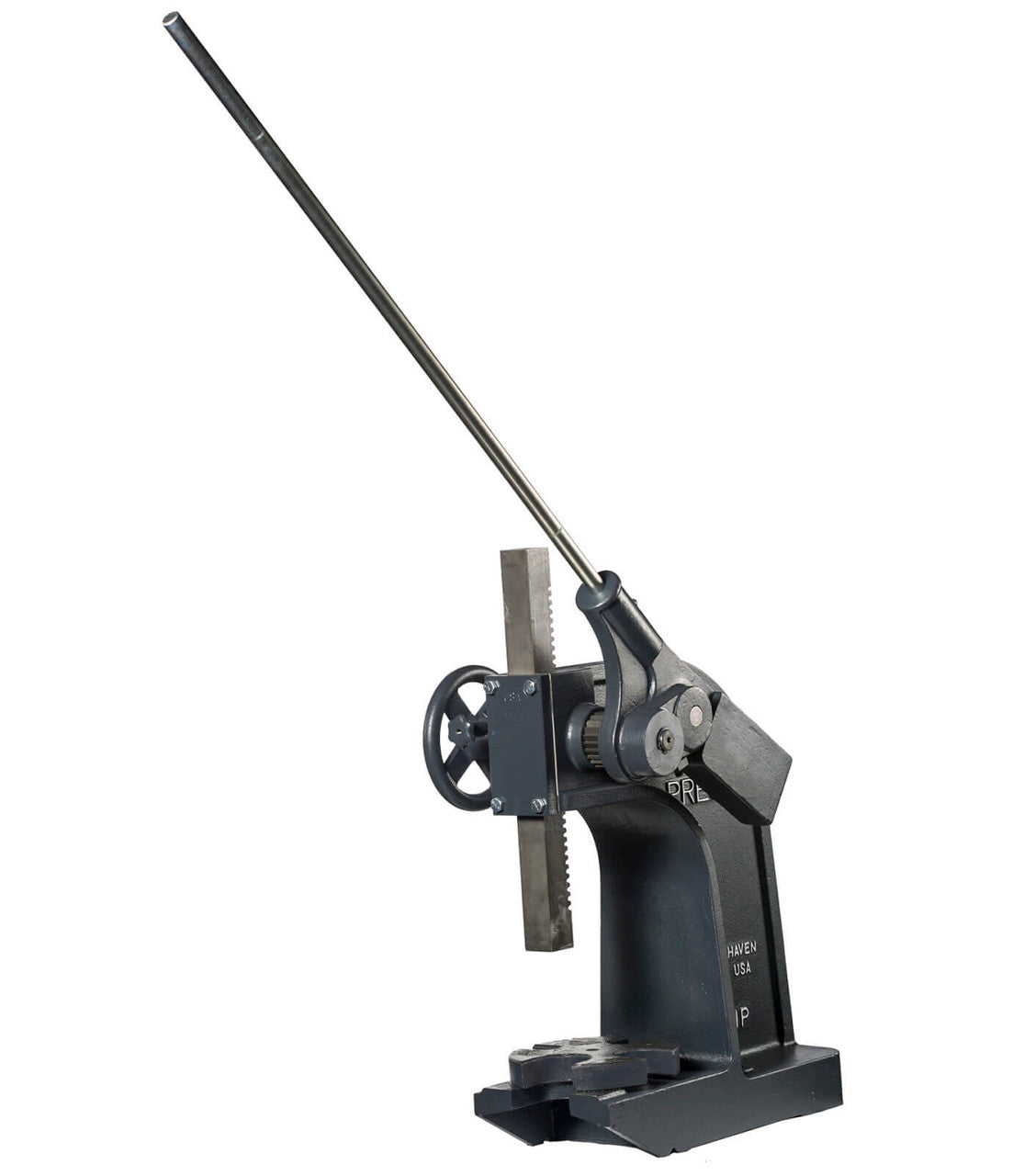

Dake 902004 Model 3A 5 Ton Ratchet Lever Arbor Press

This 5 ton ratchet lever arbor press features a handwheel, counter weight, and is designed to fit the right position for your job. Add an optional pedestal to complete this set up.

Features:

• Ratchet device permits lever to be used in most convenient position.
• Counterweight returns lever quickly after downstroke.
• Handwheel advanced ram to work quickly.

Standard Equipment:

• Cast Iron Base
• Handwheel
• Ram
• Notched Table Plate
• Counter weight

Specifications:

• Model Number | 3A
• Part Number | 902004
• Capacity | 5 Ton
• Leverage Ratio | 55:1
• Ram Size | 2" x 2" x 23"
• Maximum Diameter Work | 20"
• Throat | 10"
• Largest Arbor | 4"
• Maximum Ram to Table | N/A
• Minimum Ram to Table | N/A
• Capacity Over Table | 16"
• Capacity Over Table Plate | 14-1/2"
• Base Length | 24"
• Base Width | 10"
• Height | 28-1/2"
• Weight | 450 lbs

Model Options (Sold Separately):

• Pedestal
