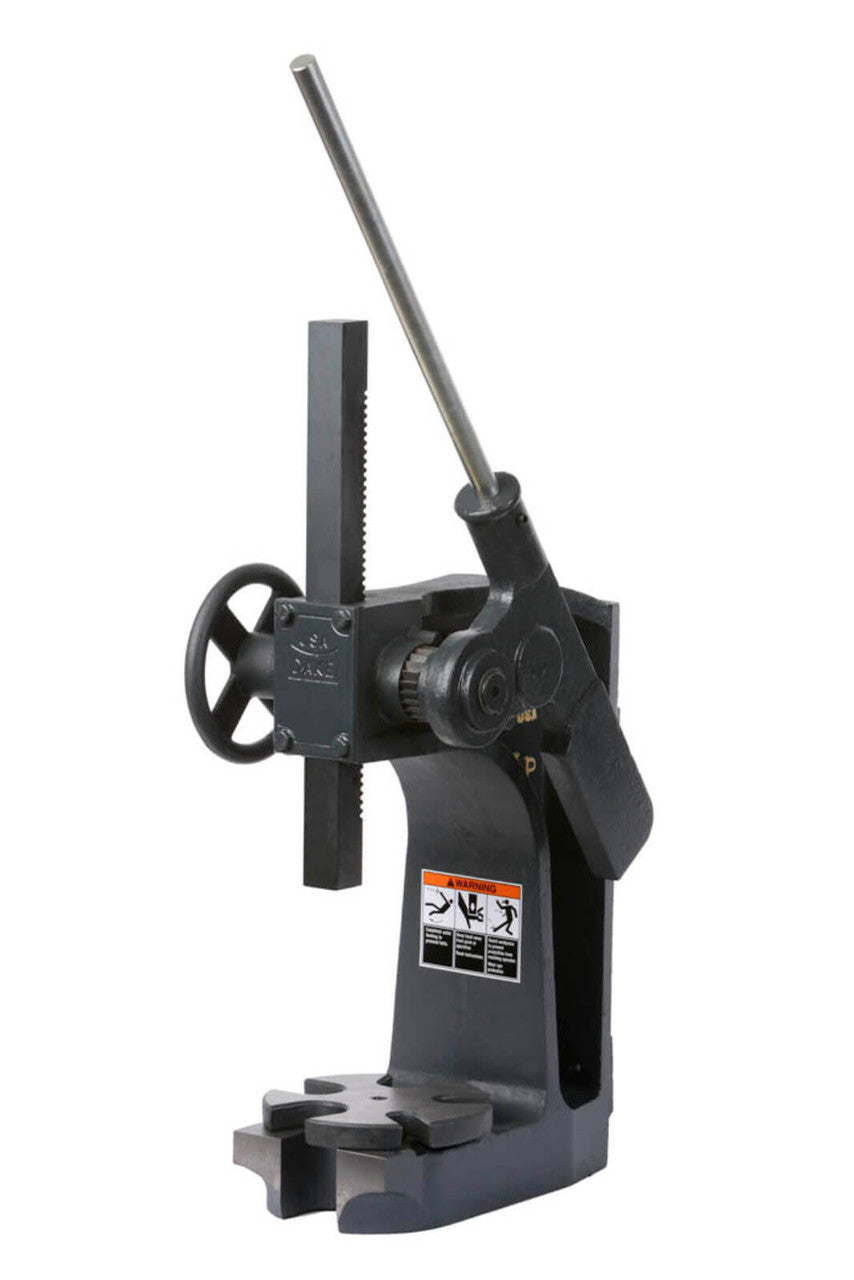

Dake 902007 Model 1-3/4 3 Ton Fixed Table Ratchet Lever Arbor Press

The side mount model of the ratchet lever series offers 3 tons of pressing capacity and a friction brake.

Features:

• Ratchet device permits lever to be used in most convenient position.
• Counterweight returns lever quickly after downstroke.
• Handwheel advanced ram to work quickly.
• Mounts to side of press

Standard Equipment:

• Cast Iron Base
• Handwheel
• Ram
• Notched Table Plate
• Counter weight

Specifications:

• Model Number | 1-3/4
• Part Number | 902007
• Capacity | 3 Ton
• Leverage Ratio | 48:1
• Ram Size | 1-1/4" x 1-1/4" x 16-1/2"
• Maximum Diameter Work | 14"
• Throat | 7"
• Largest Arbor | 2"
• Maximum Ram to Table | N/A
• Minimum Ram to Table | N/A
• Capacity Over Table | 11-1/2"
• Capacity Over Table Plate | 10-3/4"
• Base Length | N/A
• Base Width | N/A
• Height | 18-1/2"
• Weight | 125 lbs
