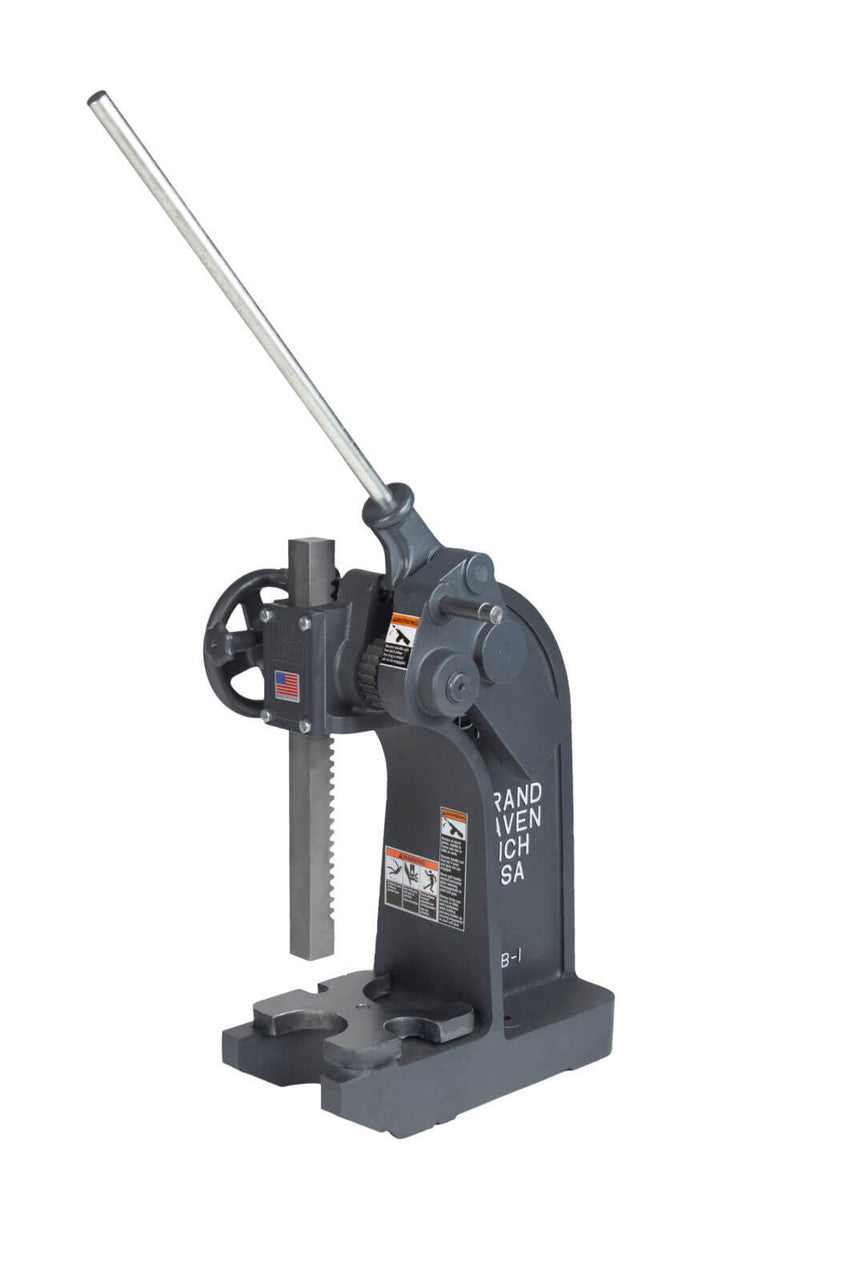

Dake 903001 Model 2B Compound Leverage Arbor Press

This 6 ton compound leverage arbor press features a 5.5” maximum arbor. A reinforced spine design adds rigidity to the press body. The frame is machined for maximum stability and drilled to permit bench or pedestal mounting. A sliding pin easily converts the press from compound to single leverage. Table and slotted table plate are flat and parallel to provide accurate support.

Features:

• Compound leverage mechanism allows greater pressure application with minimum effort.
• Sliding pin easily converts press from compound to single leverage.

Standard Equipment:

• Cast Iron Frame
• Ram
• Slotted Table

Specifications:

• Model Number | 2B
• Part Number | 903001
• Capacity | 6 Ton
• Leverage Ratio | 66:1
• Ram Size | 1-1/2" x 1-1/2" x 19"
• Maximum Diameter | 15-1/2"
• Throat | 7-3/4"
• Largest Arbor | 5-1/2"
• Maximum Ram to Table | 15"
• Minimum Ram to Table | 14"
• Capacity Over Table | N/A
• Capacity Over Table Plate | N/A
• Base Length | 20"
• Base Width | 8.25"
• Height | 26"
• Weight | 280 lbs

Model Options (Sold Separately):

• Pedestal
