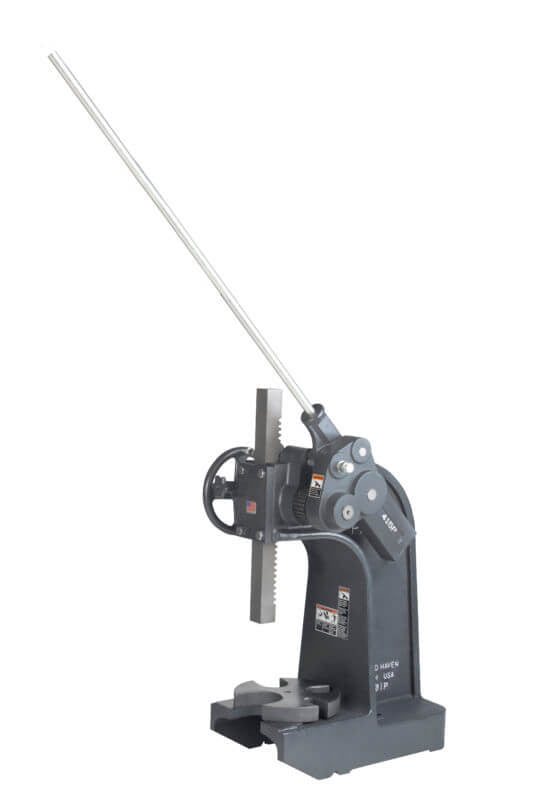

Dake 903005 Model 3 12 Ton Fixed Table Compound Leverage Arbor Press

This 12 ton compound leverage arbor press features a cast iron frame and incorporates a reinforced spine design which adds rigidity to the press body. The frame is machined for maximum stability and drilled to permit bench or pedestal mounting. A sliding pin easily converts the press from compound to single leverage. Table and slotted table plate are flat and parallel to provide accurate support.

Features:

• Compound leverage mechanism allows greater pressure application with minimum effort.
• Sliding pin easily converts press from compound to single leverage.

Standard Equipment:

• Cast Iron Frame
• Ram
• Slotted Table

Specifications:

• Model Number | 3
• Part Number | 903005
• Capacity | 12 Ton
• Leverage Ratio | 112:1
• Ram Size | 2" x 2" x 24"
• Maximum Diameter | 20"
• Throat | 10"
• Largest Arbor | 5-1/4"
• Maximum Ram to Table | 19"
• Minimum Ram to Table | 17-1/4"
• Capacity Over Table | N/A
• Capacity Over Table Plate | N/A
• Base Length | 25-1/2"
• Base Width | 13"
• Height | 35-1/2"
• Weight | 640 lbs

Model Options (Sold Separately):

• Pedestal
