Dake 905050 Model 5-050 50 Ton Elec-draulic I Press

This 50 ton single-acting electric-hydraulic press offers a 40 IPM ram advance speed, 7 IPM ram pressing speed and a 2 horsepower motor.

Features:

• Movable work-head is roller mounted on ball bearings for off-center work.
• Safety valve protects against overloads.
• Adjustable table permits easy vertical movement by means of self-locking hoist.
• Single-acting cylinder provides fast, reliable pressing and internal spring return.
• Variable ram speed allows fingertip control of ram movement for precise pressure control.
• Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve.
• Stroke indicator ensures accurate ram control.

Standard Equipment:

• Frame
• 2 Forged Steel V-Blocks
• Flat Ram Nose
• Pressure Gauge
• Self-locking Table Hoist
• Workhead
• 2 Steel Table Plates
• V-ram Nose
• Stroke Indicator
• Safety Relief Valve

Specifications:

• Model Number | 5-050
• Part Number | 905050
• Capacity | 50 Ton
• Operation | Electric
• Horsepower | 2
• Voltage | 220V/440V, 3PH
• Width Between Uprights | 32-3/4"
• Width Between Table Channels | 7-1/4"
• Minimum Ram to Table | 5"
• Maximum Ram to Table | 40"
• Ram Travel | 10"
• Screw Travel | N/A
• Horizontal Workhead Travel | 14-3/8"
• Footprint | 43-1/2" x 36"
• Height | 87"
• Weight | 1320 lbs
• Base | 43-1/2" x 36"
• Ram Advance Speed | 40 ipm
• Pressing Speed | 7 ipm
• RPM | 1,800
• Air Pressure | N/A

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
• .

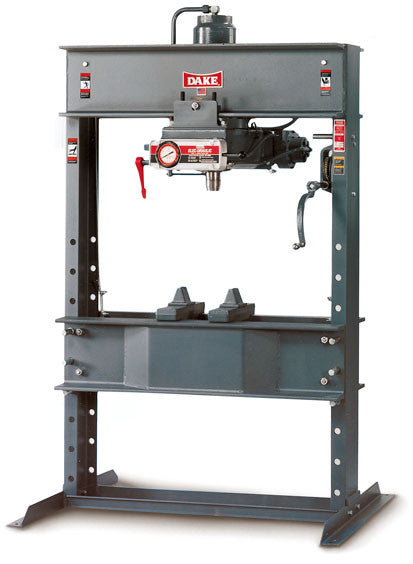

• *** Photo shown is model 5-075. There may be slight product variations not shown in photo. ***
