Features:

• Electric operation provides smooth, consistent pressing action.
• Single-acting cylinder provides fast, reliable pressing and internal spring return.
• Rapid ram approach quickly moves ram to work to save production time.
• Variable ram speed allows fingertip control of ram movement for precise pressure control.
• Moveable workhead is roller mounted on ball bearings for off-center work.
• Rapid ram return starts ram return as soon as release valve is opened and may be stopped at any point by closing the valve.
• Safety valve protects against overloads.
• Stroke indicator ensures accurate ram control.
• Adjustable table permits easy vertical movement by means of self-locking hoist.

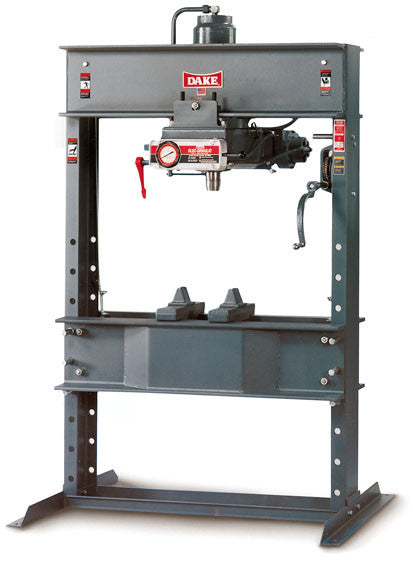

Shop Press Standard Equipment:

• Frame
• Workhead
• Two forged steel v-blocks
• Two forged steel table plates
• Flat ram nose
• V-ram nose
• Motor - 2, 3 hp - 230/460-3-60
• Stroke indicator
• Pressure gauge
• Safety relief valve
• Self-locking table hoist

Specifications:

• Model | 5-150
• Capacity (tons) | 150 tons
• Horsepower | 2
• RPM | 1800
• Ram Speed (inches per minute) Advance/Press | 16 (advance) 2-3/4 (Press)
• Width between uprights | 48"
• Width between table channels | 12-1/4"
• Minimum ram to table | 10"
• Maximum ram to table | 30"
• Ram travel | 16"
• Horizontal work head travel | 24-3/4"
• Base | 66" x 42"
• Height | 95"
• Weight | 3000 lbs
