Features:

• Hand operation for economical performance.
• Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve.
• By-pass hole prevents excessive ram extension.
• Adjustable table permits easy vertical movement by means of self-locking hoist.
• Rapid screw traverse of ram permits quick, easy movement of the ram by means of a convenient handwheel.
• Movable work head is roller mounted on ball bearings for off-center positioning (except 25H)

Dake Press Standard Equipment:

• Two forged steel V-blocks
• Two forged steel table plates (25H has two combination table plates with V-blocks)
• Flat ram nose
• V-ram nose (n/a on 25H)
• Pressure gauge and self-locking

Specifications:

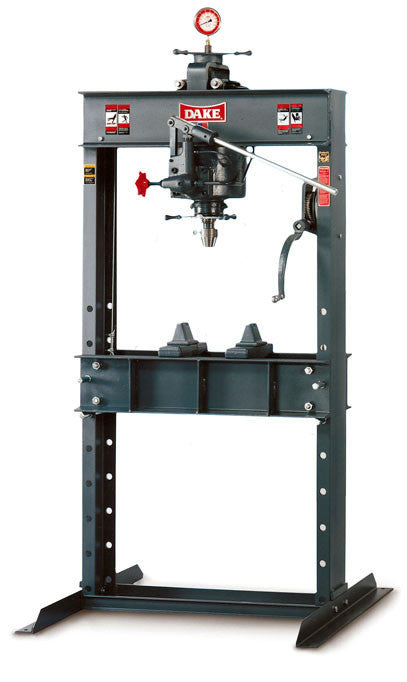

• Model | 50 H
• UOM | EACH
• Capacity | 50 tons
• Width between uprights | 32-3/4"
• Width between table channels | 7-1/4"
• Minimum ram to table | 5"
• Maximum ram to table | 40"
• Ram travel | 4"
• Horizontal work head travel | 20-3/4"
• Screw travel | 7"
• Horsepower | N/A
• Ram speed advance (ipm) | N/A
• Ram speed press (ipm) | N/A
• Voltage | N/A
• Length | 43-1/2"
• Width | 36"
• Height | 85"
• Weight | 810 lbs
