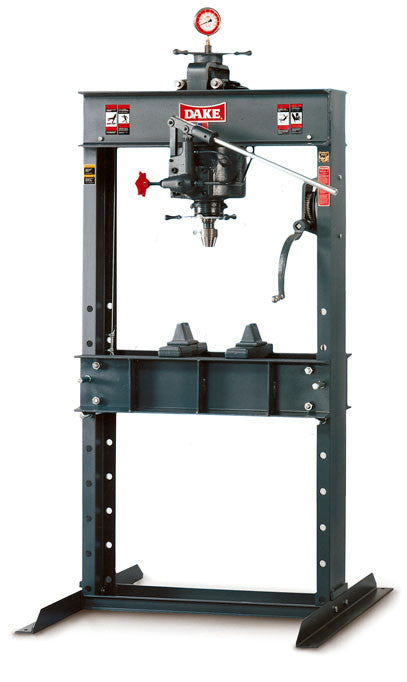

Dake 75H 75 Ton Capacity Hydraulic Press - Hand Operated 4 1/2" Stroke

Our most popular selling hand operated hydraulic press model. These hand operated hydraulic presses feature rapid ram return, by-pass hole, and rapid screw traverse of ram, along with an adjustable table, and movable workhead.

Dake Shop Press Features:

• Hand operation for economical performance.
• Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve.
• By-pass hole prevents excessive ram extension.
• Adjustable table permits easy vertical movement by means of self-locking hoist.
• Rapid screw traverse of ram permits quick, easy movement of the ram by means of a convenient handwheel.
• Movable workhead is roller mounted on ball bearings for off-center positioning (except 25H)

Dake 07003 Standard Equipment:

• Two forged steel V-blocks
• Two forged steel table plates (25H has two combination table plates with V-blocks)
• Flat ram nose
• V-ram nose (n/a on 25H)
• Pressure gauge and self-locking

Dake 907003 Specifications:

• Model | 75H
• UOM | Each
• Capacity | 75 tons
• Width between uprights | 44"
• Width between table channels | 8-1/4"
• Minimum ram to table | 6"
• maximum ram to table | 36"
• Ram travel | 4-1/2"
• Horizontal workhead travel | 29-5/8"
• Screw travel | 7"
• Horsepower | N/A
• Ram speed advance (ipm) | N/A
• Ram speed press (ipm) | N/A
• Voltage | N/A
• Length | 55"
• Width | 36"
• Height | 87"
• Weight | 1245 lbs
