Features:

• Electric operation provides smooth, consistent pressing action.
• Double-acting cylinder permits pulling as well as pressing ram action.
• Variable ram speed allows fingertip control of ram movement for precise pressure control.
• Safety valve protects against overloads.
• H-frame mounted control allows convenient control of press when workhead is out of operator’s reach.
• T-ring seals prevent pressure loss.
• Adjustable table permits easy vertical movement by means of self-locking hoist.
• Optional bolt flange for tooling attachment may be substituted for flat ram nose.

Standard Equipment:

• Frame
• Double-acting workhead
• Two forged steel v-blocks
• Two forged steel table plates
• Flat ram nose
• Motor - 2, 7-1/2, 10hp - 230/460-3-60
• Pump
• Pressure gauge
• Safety relief valve
• 4-way throttling valve
• Self-locking table hoist

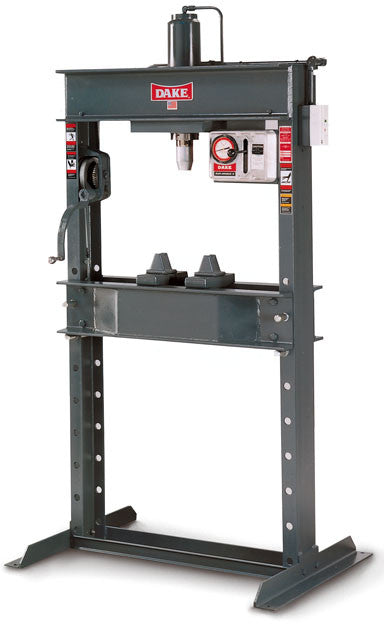

Dake 08025 Specifications:

• Model | 8-025
• Capacity (tons) Press/Pull | 25/10 tons
• Horsepower | 2
• RPM | 1800
• Ram Speed (inches per minute) press/return | 15/35
• Width between uprights | 32-3/4"
• Width between table channels | 7-1/4"
• Minimum ram to table | 11-3/4"
• Max. ram to table | 46-3/4"
• Ram Travel | 10"
• Base | 43-1/2" x 36"
• Height | 83"
• Weight | 1060 lbs
