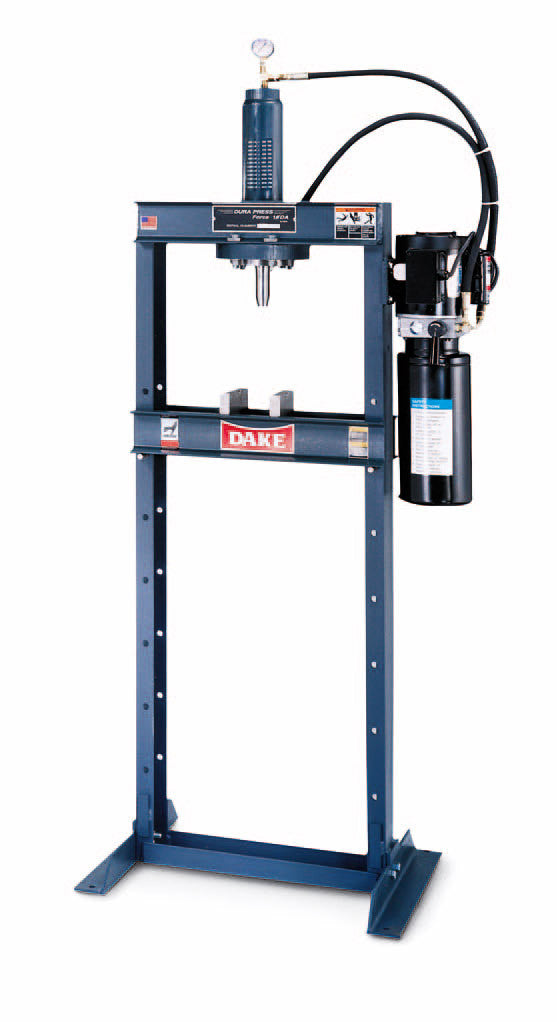

Dake Force 10DA 10-ton Electrically Operated H-frame, 110v-1 ph

Single Phase Dura-Presses 10 ton electrically operated hydraulic dura-press powered by a 110V motor. Table height adjusts for proper positioning. The three-point lever provides single-handed control over ram movement. A double-acting cylinder moves the ram during the downstroke and the return, providing smooth movement in both directions and enabling precise positioning.

Features:

• Electric power unit has convenient single phase, 110 volt operation for greater portability.
• Lever control ram advance for easy operation.
• Double acting cylinder allows for convenient positioning of ram.
• Sturdy, welded channel iron frame for durability.
• Quiet, low pressure hydraulic components for greater efficiency and smooth pressing.
• One hand ram positioning with 4-way valve hydraulic control.

Model Options:

• Remote Pressure Relief Valve

Standard Equipment:

• Frame
• Safety Relief Valve
• 2 Combination Table Plate/V-Blocks
• Pressure Gauge

Specifications:

• Number |  909205
• Capacity | 10 ton
• Operation | Electric
• Horsepower | 1
• Voltage | 110V, Single Phase
• Width between uprights | 20”
• Width between table channels | 4”
• Minimum ram to table | 4"
• Maximum ram to table | 40”
• Ram travel | 10"
• Screw Travel | n/a
• Horizontal workhead travel | n/a
• Footprint | 29-3/4” x 24"
• Height | 80"
• Weight | 300 lbs
• Base | 29-3/4” x 24"
• Ram advance speed | n/a
• Pressing speed | 20 ipm
• RPM | 3,450
• Air Pressure | n/a
