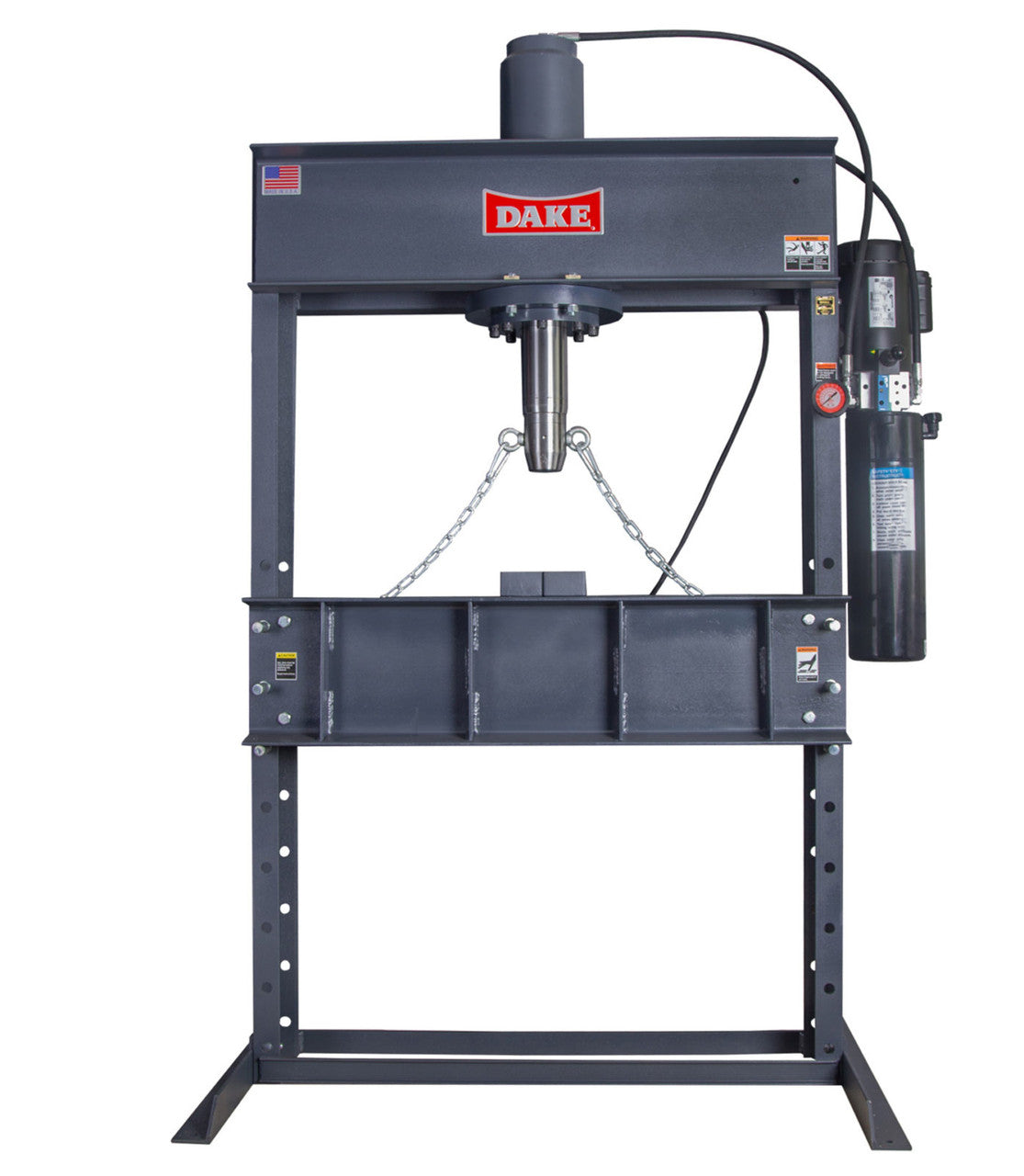

Dake Force 50DA 50 Ton Hydraulic Press | 2HP, 110V

Features:

• Electric power unit has convenient single phase, 110 volt operation for greater portability.
• Lever control ram advance for easy operation.
• Double acting cylinder allows for convenient positioning of ram.
• Sturdy, welded channel iron frame for durability.
• Quiet, low pressure hydraulic components for greater efficiency and smooth pressing.
• One hand ram positioning with 4-way valve hydraulic control

Model Options:

• Remote Pressure Relief Valve
• Check Valve
• Traversing Head
• Two Hand Operation
• Certified Gauge
• Side Mounted Arbor Press

Standard Equipment:

• Frame
• Safety Relief Valve
• 2 Combination Table Plate/V-Blocks
• Pressure Gauge
• Lifting Chain

Specifications:

• Model | FORCE 50DA
• Number | 909250
• Capacity | 50 tons
• Operation | Electric
• Horsepower | 2
• Voltage | 110V/220V, Single Phase 110V
• Width between uprights | 44”
• Width between table channels | 8-1/4”
• Minimum ram to table | 10”
• Maximum ram to table | 41-3/4”
• Ram travel | 16”
• Screw Travel | n/a
• Horizontal workhead travel | n/a
• Footprint | 55” x 36"
• Height | 94”
• Weight | 1,330 lbs
• Base | 55” x 36"
• Ram advance speed | n/a
• Pressing speed | 11 ipm
• RPM | 3,450
• Air Pressure | n/a
