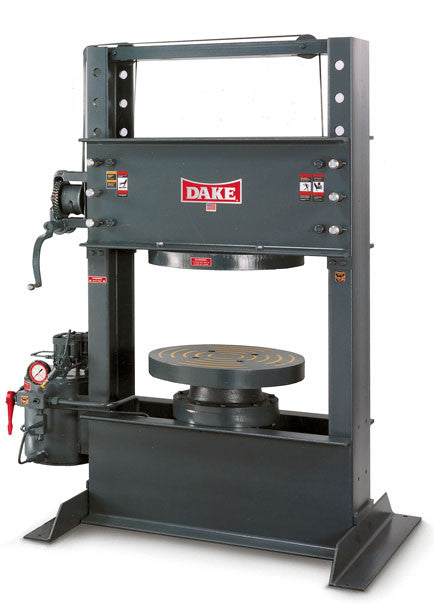

Dake 33-493 150 Ton Electric Powered Hydraulic Forklift Tire Press
*** Actual Product May Differ From Image Shown ***
Features:
-
150 ton capacity for handling large fork lift tires.
-
Large 7 3⁄4” ram provides platen stability and longer seal life.
-
Upper movable head channel provides 15” of travel for easy set-up.
-
Easily removable pins allow head channel to be set in four different positions.
-
Pressing rings in diameters and face widths for all standard tire sizes. Contact factory for availability.
- Eliminates outside servicing delays and truck downtime.
-
220/440 volt 3 Phase (Please specify which voltage you require)
Optional Equipment:
-
Larger capacities available upon request
-
Additional ram stroke
-
Special frame sizes
-
Different size pressing rings
Specifications:
- Model | 33-493
- Capacity (tons) | 150
- Motor Horsepower | 2
- Ram Speed (inches per min.) Advance/Return | 2 3/4 Gravity
- Width between uprights | 36"
- Maximum Daylight | 30"
- Ram Travel | 12"**
- Head Channel Travel | 15"
- Platen Diameter | 25"
- Overall Height | 80"
- Floor Space | 57" x 43"
- Weight | 3000 lbs
**Limit switch stops ram at end of stroke.
