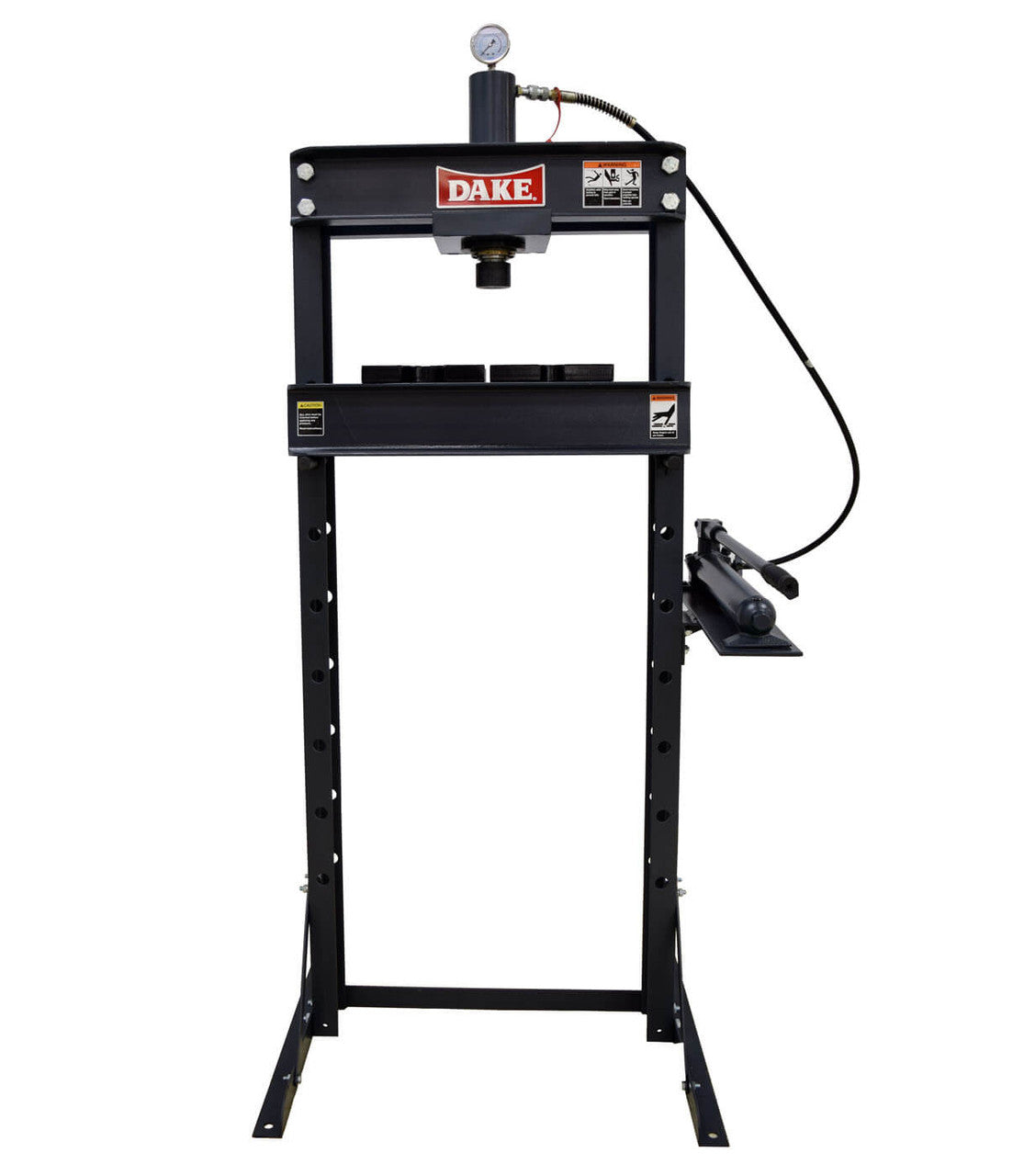

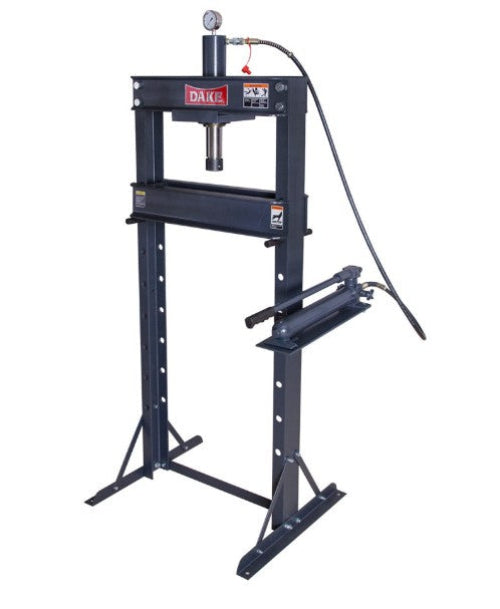

Dake F-10 10-Ton Hydraulic Press - Hand Operated 6" Stroke

Dake’s line of utility presses might look small but they are extremely durable. These manual powered presses are the perfect addition for any home or hobby shop. The F-10 model is a 10 ton capacity floor press. For custom applications, a traversing head and removable nose piece come standard. Each press comes complete with table plates, gauge, and manual. These quality utility presses are guaranteed to last for years.

Features:

• Fast, efficient single speed hand pump with adjustable mounting for maximum ergonomic operation.
• Convenient top mounted gauge reads in tons and psi to monitor pressure.
• Table can be adjusted for maximum or minimum vertical opening to accommodate a variety of work pieces and to minimize required ram travel.
• Large diameter, single acting polished piston with internal spring return to eliminate external pinch points.
• The hydraulic pressing cylinder can be relocated right or left of center for unusual work pieces.

Standard Equipment:

• Frame
• Flat Ram Nose
• Combination Table Plates/V-Blocks
• Step Reduced Ram Nose

Specifications:

• Number | 972210
• Capacity | 10 tons
• Operation | Manual
• Horsepower | n/a
• Voltage | n/a
• Width between uprights | 16-3/4”
• Width between table channels | 3”
• Minimum ram to table | 4”
• Maximum ram to table | 38”
• Ram travel | 6”
• Screw Travel | n/a
• Horizontal workhead travel | left/right of center
• Footprint | 24" x 28"
• Height | 60”
• Weight | 225 lbs
• Base | 24” x 28”
• Ram advance speed | 1/8" per stroke
• Pressing speed | n/a
• RPM | n/a
• Air Pressure | n/a

Optional Equipment:

• Dake 840 Air Pump
