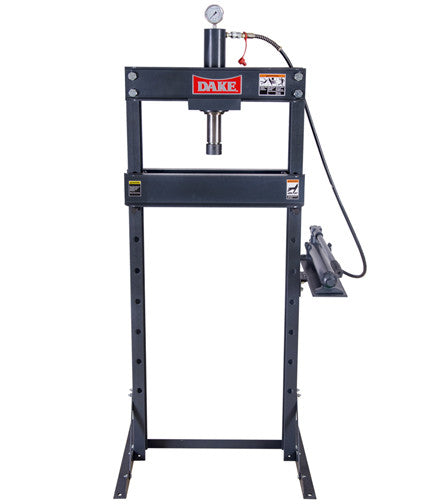

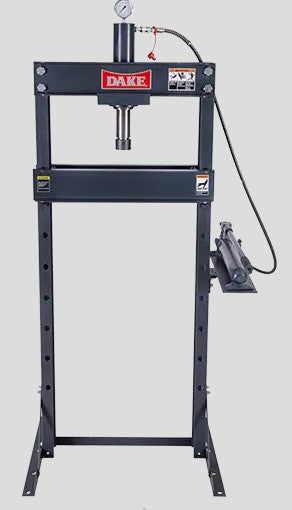

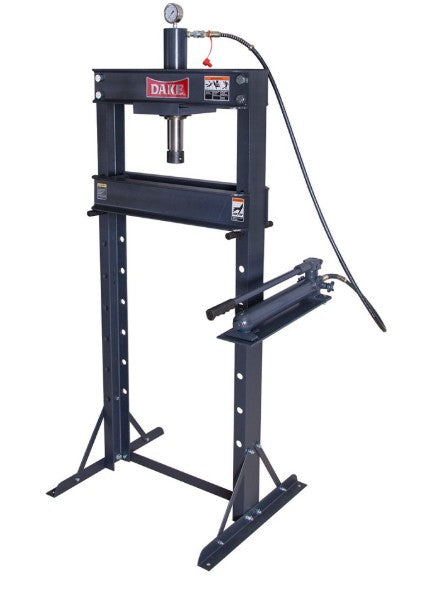

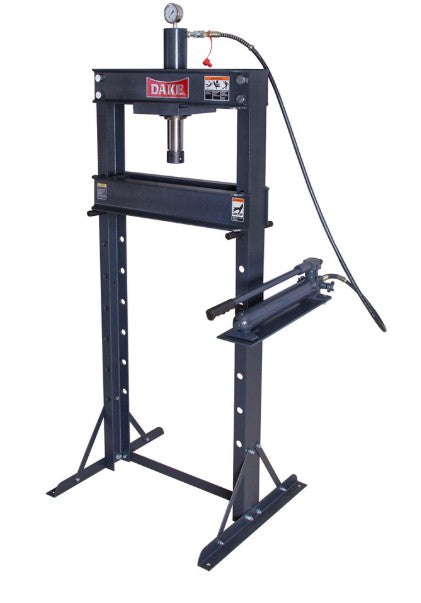

Dake F-20 20 Ton Utility Hydraulic Press

Dake’s line of utility presses might look small but they are extremely durable. The perfect addition for any home or hobby shop. The F-20 model is a 20 ton capacity floor press with a quick, 2-speed pump. For custom applications, a traversing head and removable nose piece come standard. Complete with table plates, gauge, and manual.

Features:

• Heavy steel channel frame and table
• Long 8” stroke
• Self-contained fast, efficient two speed hand operated pump conveniently located
• Traversing head L/R for off center pressing applications
• Removable nose piece to allow for custom nose piece installation
• Table can be adjusted for maximum or minimum vertical opening to accommodate a variety of work pieces and to minimize required ram travel
• Large diameter, single acting polished piston with internal spring return to eliminate external pinch points
• Comes complete with table plates, gauge, and owner’s manual

Standard Equipment:

• Steel channel and frame
• Traversing head
• Removable nose piece
• Table plates
• Gauge
• Step nose piece

Specifications:

• Model | F-20
• Number | 972220
• Capacity | 20 ton
• Operation | Manual
• Horsepower | n/a
• Voltage | n/a
• Width between uprights | 22"
• Width between table channels | 4"
• Minimum ram to table | 4"
• Maximum ram to table | 39"
• Ram travel | 8"
• Screw Travel | n/a
• Horizontal workhead travel | left/right of center
• Footprint | 34" x 26"
• Height | 70"
• Weight | 283 lbs
• Base | 34" x 26"
• Ram advance speed | 3/16" per stroke
• Pressing speed | n/a
• RPM | n/a
• Air Pressure | n/a

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ship by truck and extra shipping charges will apply to ship to a non-commercial address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
