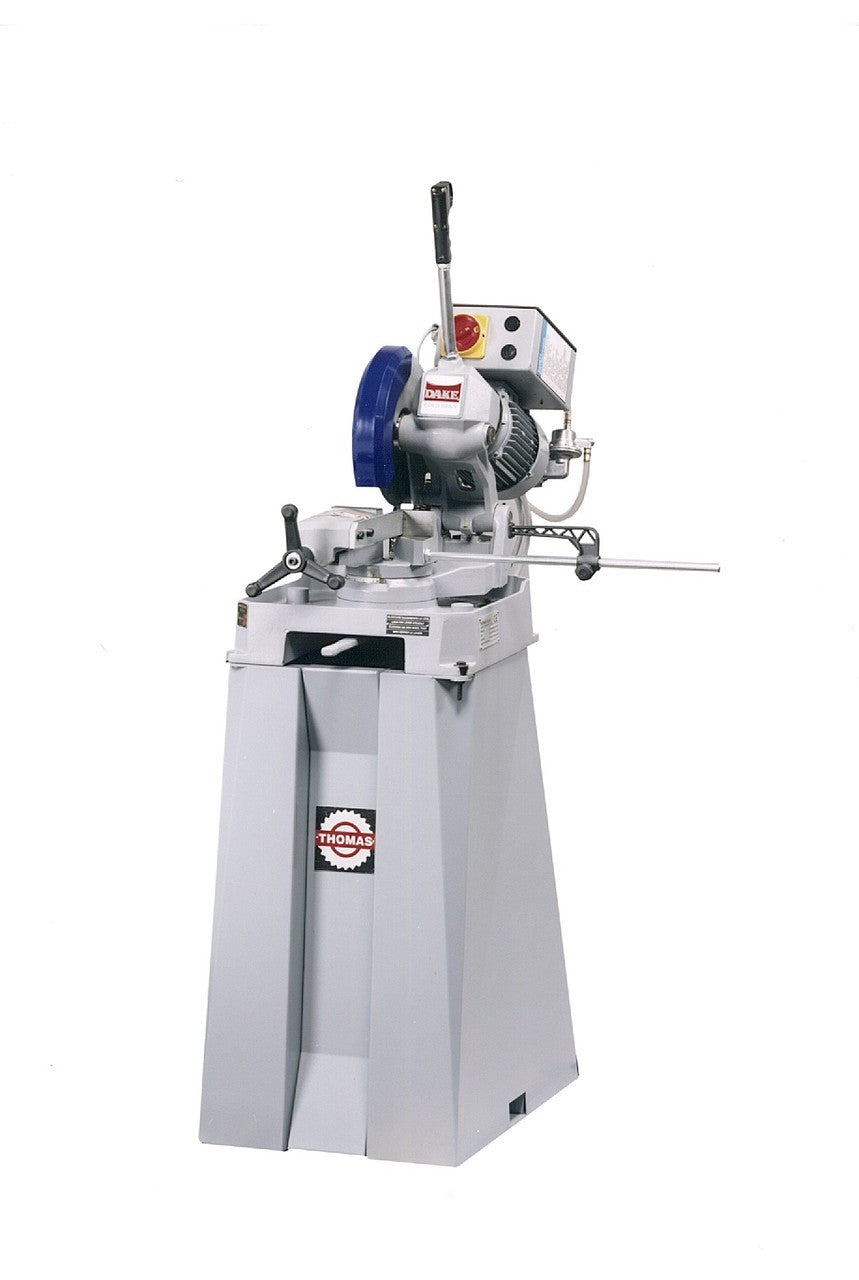

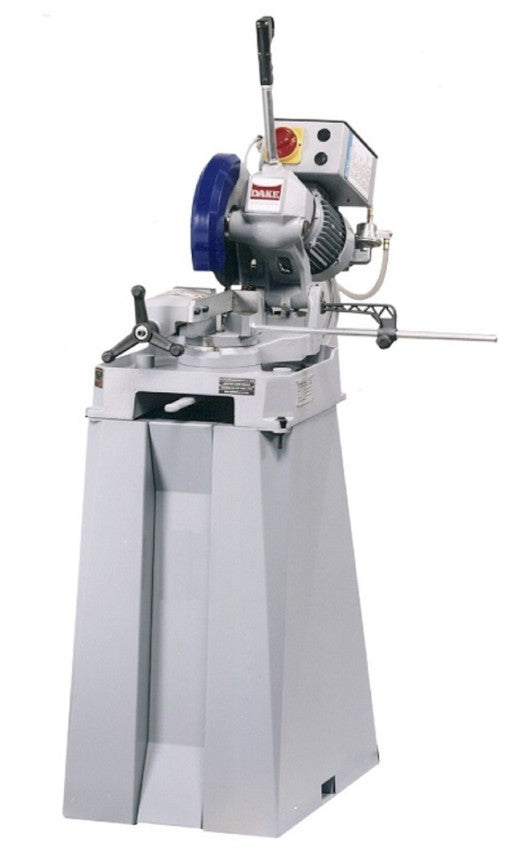

Dake TECHNICS 250 Manual Cold Saw, 10" blade

Manual cold saw with a head that will rotate 45º left and right for mitering. This saw is designed to cut without sparks and will leave the metal cool to the touch. A mechanical coolant pump with flow control is included.

Features:

• Head rotates 45º right and left of center for mitering.
• Dependable oversized spindle and gear assembly with steel spindle and bronze gear.
• Reliable mechanical coolant pump with flow control adjustment.
• Hardened and ground spindle shaft to prevent failure.

Standard Equipment:

• Blade
• Pedestal Base
• Tool Kit
• Gallon of Coolant
• Adjustable Positive Stop

Model Options (Sold Separately):

• Blade starter pack (3 10" blades)
• 78" Loading table
• 78" Unloading table

Specifications:

• Number | 974250-1
• Voltage | 110V, Single Phase
• Horsepower | 1.2
• Cutting Ability | Ferrous/non-ferrous/plastics
• Maximum blade diameter | 10"
• Maximum vise opening | 4"
• Maximum feed vise opening | n/a
• Maximum Angle | 45° right/left
• Slotting | No
• Phase | 1
• Speeds | 44 rpm
• Weight | 378 lbs
• Solid round 90˚ capacity | 1-1/4"
• Solid round 45˚ capacity | 1”
• Tube 90˚ capacity | 2-3/4"
• Tube 45˚ capacity | 2-3/8"
• Square 90˚ capacity | 2-1/2”
• Square 45˚ capacity | 2-1/8”
• Rectangle 90˚ capacity | 3-7/8” x 1-3/4”
• Rectangle 45˚ capacity | 2-1/2” x 1-7/8”
• Work height | 37”
• Height | 61”
• Width | 21”
• Depth | 35”
