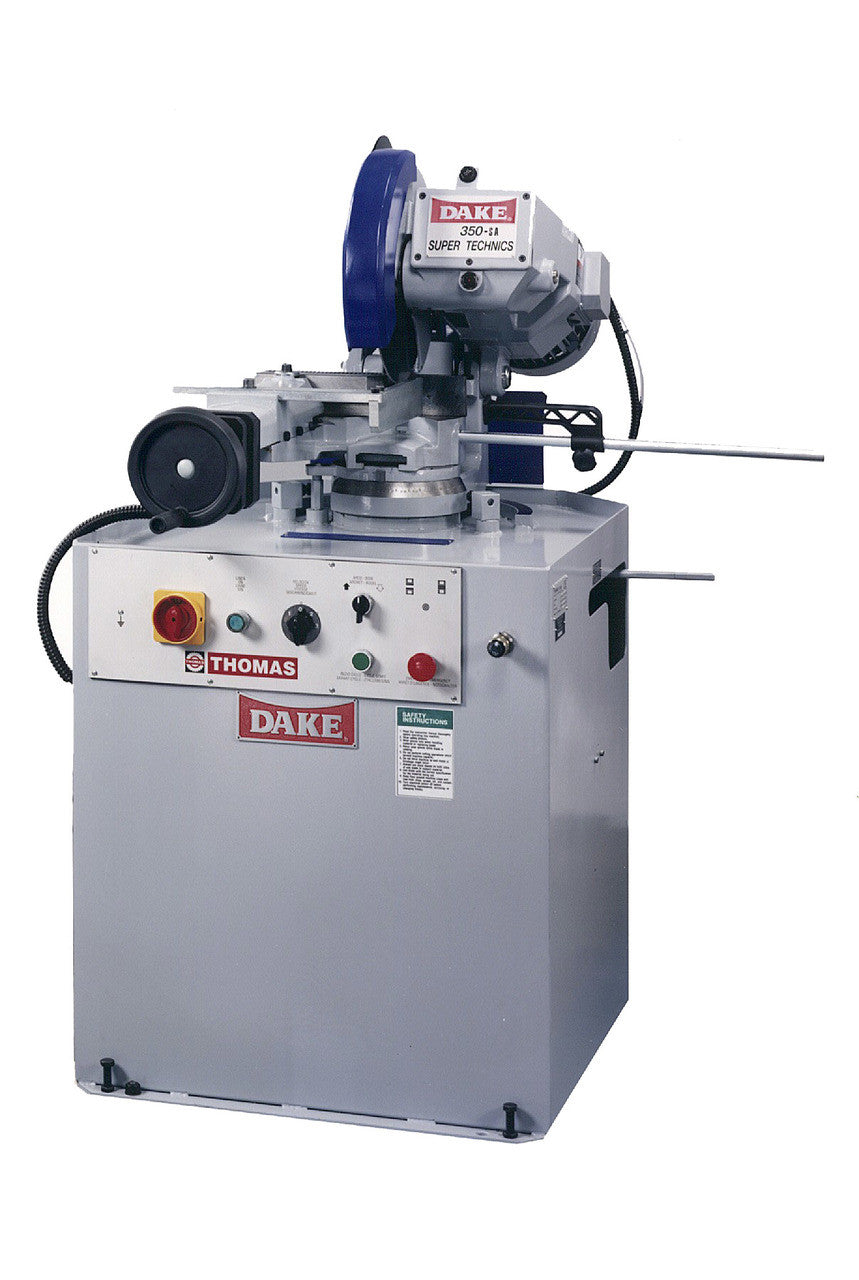

Dake 350SA 14" Semi-Automatic Cold Saw

Semi-Automatic Cold Saw Converts to Automatic. Start with push button semi-automatic and upgrade to automatic feed

Features:

• Modular design can be configured as semi-automatic or automatic
• Push button or foot switch activation to avoid operator fatigue
• Oversized pedestal base to reduce vibration
• Shroud enclosed feed cylinder with sliding cams for fast cutting stroke adjustment
• Head rotates 45 degrees right and 60 degrees left of center for easy miter cutting
• Additional ball bearing support of hardened and ground spindle shaft to prevent failure
• Bronze worm gear with tapered roller bearing support
• Adjustable pneumatic vise with sliding gib to true up clamping under blade with 1/4 stroke
• Removable hardened, serrated vise jaw faces
• Adjustable clutch for more efficient operation and longer blade life

Standard Equipment:

• Blade
• Gallon of coolant
• Adjustable positive stop
• Tool kit for changing blades
• Instruction and service manual
• Saw blade selector calculator

Optional Equipment:

78" loading and unloading tables
Retrofit feed to convert from semi-automatic has 23 1/2" feed that can be indexed up to 9 times with adjustable shuttle speed and vernier fine length adjustment.

Specifications:

• Model | Technics 350SA
• Maximum Blade Diameter | 14"
• Motor Horsepower | 3.5 max
• Speeds | 22/44/88 RPM
• Weight | 890 lbs
