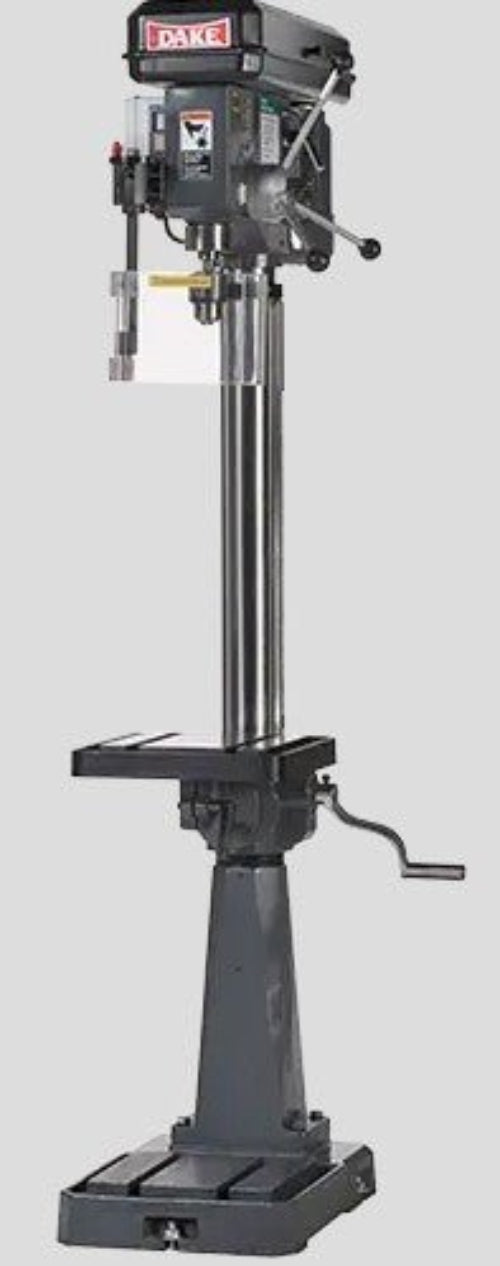

DAKE 977200-1 SB-16 Floor Model Drill Presses

A locking handle hub with convenient dial-in adjustment and an easy to read scale for fast, accurate, and repeatable depth setting changes. Large diameter sturdy spindle for rigid drilling has four bearing points for smooth operation. Bench and floor models both have machined table and base surfaces with t-slots for mounting and fixturing. Quick release belt tensioning for fast, easy speed changes. CE safety electrical package features push button on/off switch, emergency stop button, low voltage controls, thermal overload, and interlock safety switch for belt cover. Massive cast head, machined column, and sturdy cast base reduces vibration. Quick bit changes with standard Morse Taper (MT), common adaptors or standard keyed chuck. Handle has 3 spokes with spring return for precise operator control and ergonomic operation.

Standard Equipment:

• 1/2 Keyed chuck
• Drift for bit removal
• Plexiglas chip and chuck guard

Specifications:

• Number | 977200-1
• Drill Capacity | 5/8"
• Horsepower | 1/2
• Motor | 110V/220V/440V
• Spindle Taper | MT2
• Working Diameter | 14-1/8"
• Number of Speed | 9
• Spindle Speed Ranger | 240-3400 RPM
• Electrics | CE 120 Volt
• Spindle Travel | 3-1/8"
• Column Diameter | 3-1/8"
• Table Depth | 11-3/4"
• Table Width | 11-3/4"
• Base Depth | 19-5/8"
• Base Width | 12-1/2"
• Spindle to Table | 28-1/2"
• Spindle to Base | 49-1/4"
• OverAll Height | 64"
