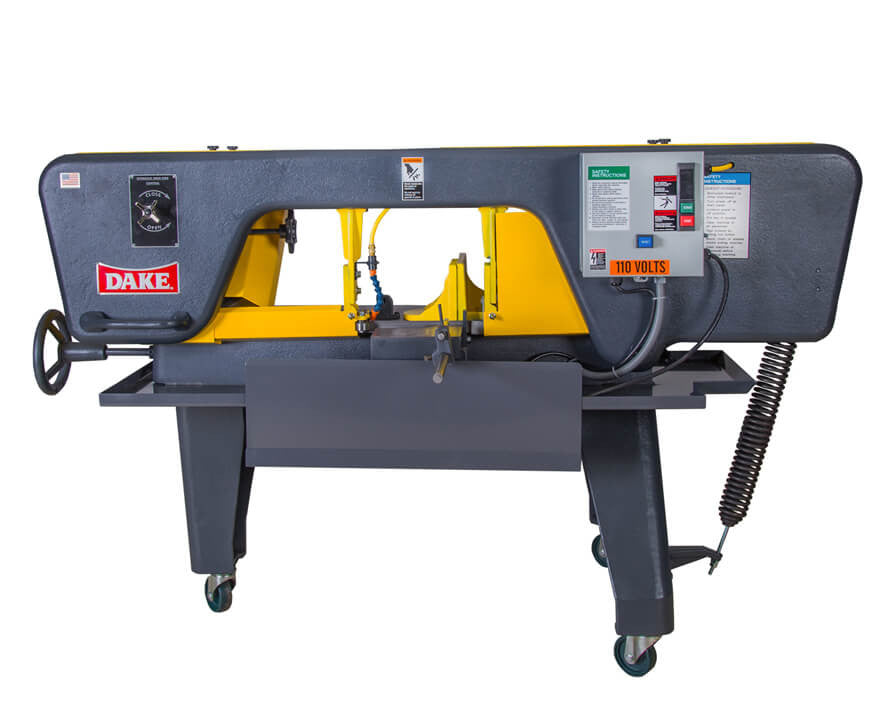

Dake JH10W1 Heavy Duty Horizontal Band Saw

Heavy duty, American made, horizontal bandsaw with a dual cast head frame for large capacity cutting. Also featuring a three point suspension, adjustable eccentric roller blade guides, centralized controls, four-speed drive, 45º swivel vise jaws, and heavy 16” blade wheels.

Features:

• Heavy duty, American made medium production saw, comes with one standard Bi-metal blade.
• Hydraulic controlled, gravity head feed, for hands free cutting. Hydraulically variable head feed control for regulation of head feeding rate. Machine automatically shuts off after cut is complete.
• Cast two-piece head frame and large pivot bar, for extreme rigidity and long life.
• Gear box is driven via “V” belt and step pulleys for fast speed changes.
• Low voltage switches. Thermo over load protection, Magnetic starter switch low voltage protection.
• Miters up to 45°
• Vise has quick release for quick change over of material sizes.
• Chip brush keeps the gullets of the blade clean.
• Cast legs are of a three-point design. This unique design lets the machine sit flat, even on uneven floor surfaces.
• The saw is fully guarded for operator safety.

Model Options (Sold Separately):

• Casters (Set of 3)
• Stock Stand
• 24” Discharge Table

Standard Equipment:

• Vise
• Magnetic Starter
• Blade Tension
• Frame Feed Control
• Flood Coolant System

Specifications:

• Model | JH10W1
• Number | 985017
• Capacity | 10" Rounds, 18" Flats
• Horsepower | 1
• Voltage | 110V/ 1PH
• Maximum Blade Speed | 270 fpm
• Blade Width | 1"
• Blade Length | 137"
• Blade Speeds | 50/90/160/270 fpm
• Solid Round 90˚ Capacity | 10"
• Solid Round 45˚ Right Capacity | 7"
• Solid Round 60˚ Right Capacity | N/A
• Solid Square 90˚ Capacity | N/A
• Solid Square 45˚ Right Capacity | N/A
• Solid Square 60˚ Right Capacity | N/A
• Solid Rectangle 90˚ Capacity | 4-1/2" x 18"
• Solid Rectangle 45˚ Right Capacity | 4" x 10"
• Solid Rectangle 60˚ Right Capacity | N/A
• Bed Work (area) | 11" x 18"
• Weight | 935 lbs
• Height | 75"
• Floor Space | 30" x 65"
• Floor Space Left to Right | N/A
• Floor Space Front to Back | N/A
• Floor to Bed | 23-3/4"
