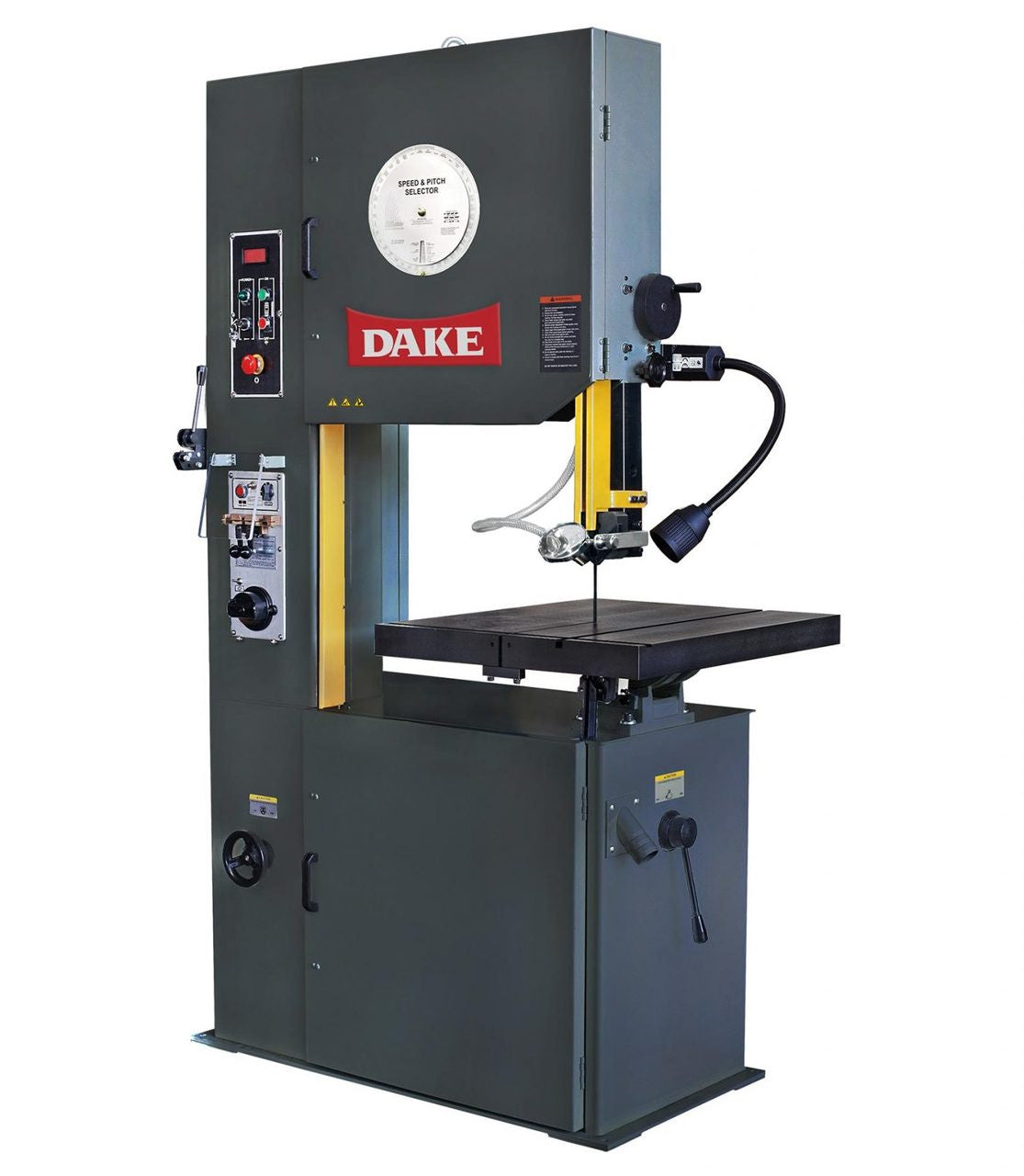

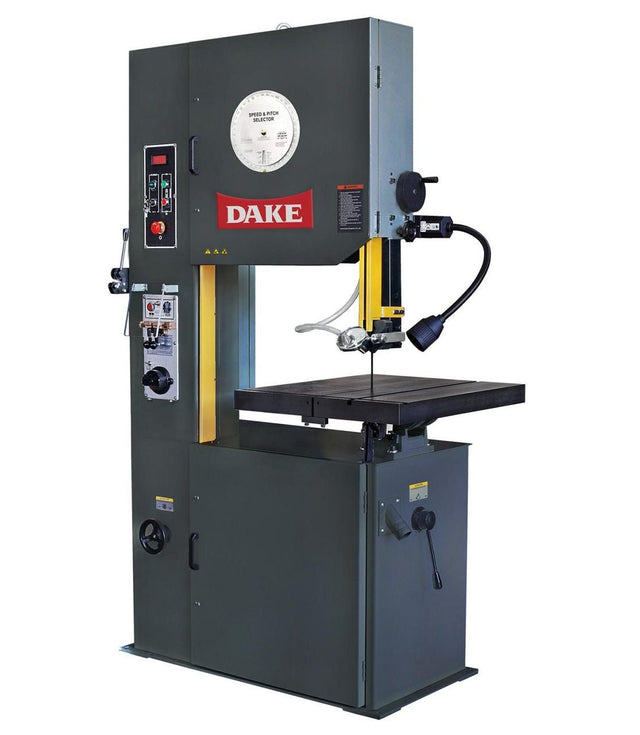

Dake V-26 Industrial Vertical Bandsaw, 26" Throat

This heavy duty vertical bandsaw is designed for large production pieces. A 26" capacity, multi-tilting table, and variable speeds offer cutting capabilities for many applications. Additional features include a digital tachometer, speed and pitch selector, door interlocks, and a work light. Complete with a built in welder/grinder/cutter this saw is sure to get the job done.

Features:

• Variable Speeds with 50 - 415 feet per minute in low range and 550 - 5,000 feet per minute in the high range
• 26" saw for intermediate-size workpieces
• Adjustable Table
• Digital speed indicator for clear readout
• Work light comes standard for increased visibility
• Low voltage controls, main power lock out switch and door limit switches
• Heavy cast, tilting table with chip clearance grooves
• Built in blade welder with grinder and shear to easily fix broken blades

Model Options:

• 440V with a transformer
• Mist system

Standard Equipment:

• Heavy Duty Frame
• Rip Fence
• Work Light
• Blade Welder / Grinder / Shear
• Speed Indicator (Digital Readout)
• Blade Tension Indicator
• Digital Tachometer
• Chip Blower & Blade Brush
• 1 Standard Blade

Specifications:

• Model | V-26
• Number | 987031-2
• Horsepower | 3
• Voltage | 220V/440V*; 3 Phase
• Blade width | 1/4"-1"
• Blade length | 184 1/4"
• Blade speed | Low 50-415/High 550-5000 fpm
• Worktable travel distance | n/a
• Band wheels number | 2
• Band wheels size | 26 1/4"
• Throat size (band to column) | 26"
• Maximum work height | 13"
• Work table dimensions | 23 1/2" x 27 1/2"
• Worktable tilt | 45° R / 10°L
• Worktable height | 39 3/8"
• Machine height | 84"
• Machine floor space | 51" x 32"
• Weight | 1540 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ship by truck and extra shipping charges will apply to ship to a non-commercial address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
• *440V model requires step-down transformer for operation (part number: 300674)
