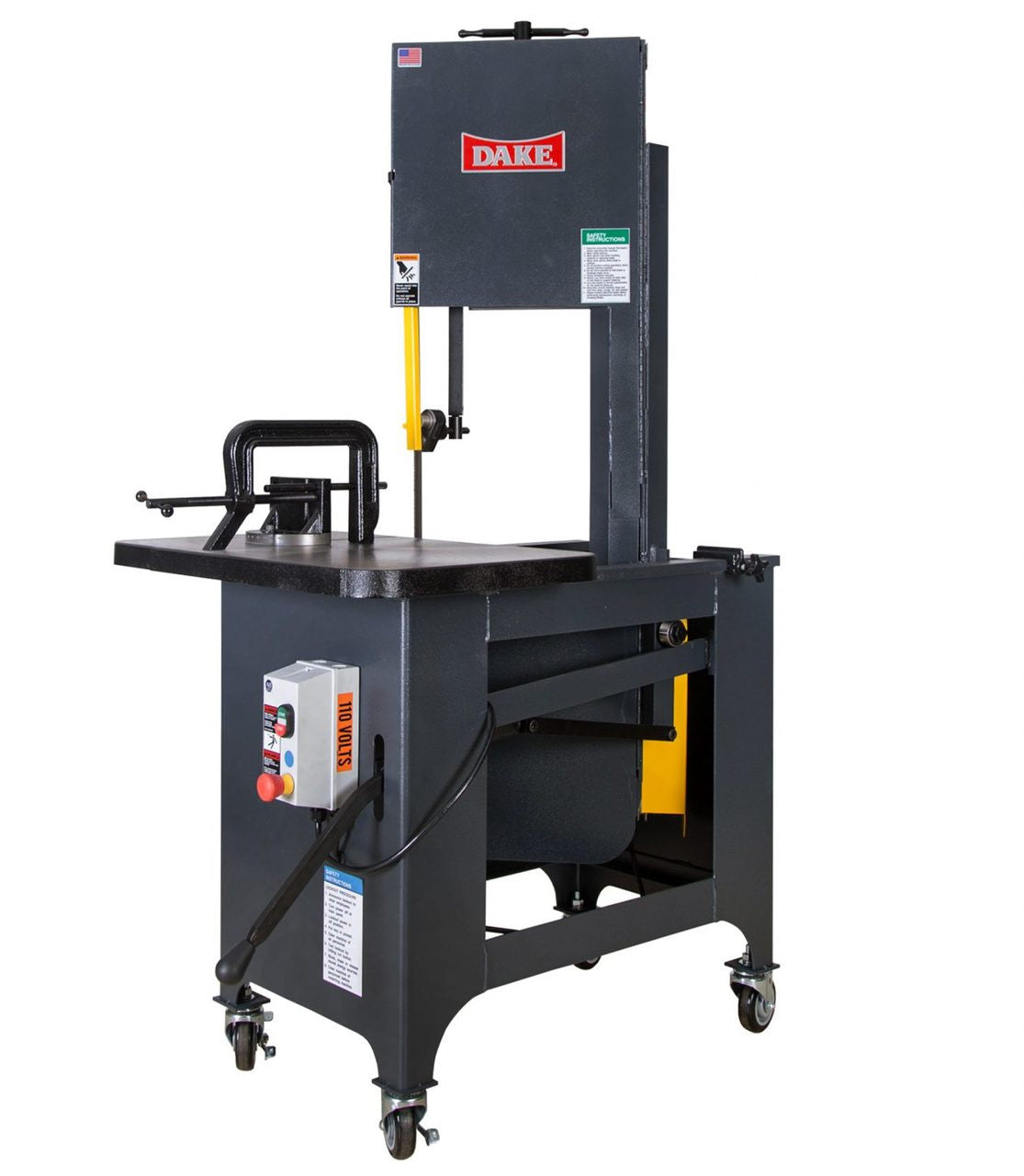

Dake SXC Work-A-Matic Bandsaw | 110V Single Phase

The Dake Work-A-Matic vertical bandsaw is a gravity feed saw that allows for hands-free operation.

Features:

• Gravity feed. The blade feeds into the material by gravity, which allows for hands-free operation.
• Fast set up. Effortless changes between a cut off saw, contour saw and rip saw. Fast set up makes it ideal for production.
• Low voltage controls with thermal overload and E-stop for emergency stop and start situations.
• Frame and base are heavy duty welded steel for rigidity. Built to handle the toughest environments.
• Variable feed rate system with hydraulic feed regulator that features a convenient front mounted flow control valve.
• Four blade speeds and infinitely adjustable blade pressure.
• Enclosed guarding for step pulley and bottom wheel assembly.

Standard Equipment:

• C-Clamp Assembly
• One Standard Blade
• Steel Base
• Cutting Chart
• Head Lock
• Miter Gauge
• Hydraulic Feed Control

Model Options (Sold Separately):

• Heavy Duty Locking Caster
• Work Lamp

Specifications:

• Model | SXC
• Number | 988040
• Horsepower | 1
• Voltage | 110V, Single Phase
• Blade width | ¼”-¾”
• Blade length | 120"
• Blade speed | 70/140/270/540 fpm
• Blade Travel | 9"
• Band wheels number | 2
• Band wheels size | 14" diameter
• Mitering | 45°
• Maximum work height | 14-1/2"
• Work table dimensions | 29" x 18"
• Worktable tilt | Fixed
• Worktable height | 36-1/2"
• Machine height | 66"
• Machine floor space | 29” x 40”
• Weight | 810 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

• Does NOT include casters, part number 716725
