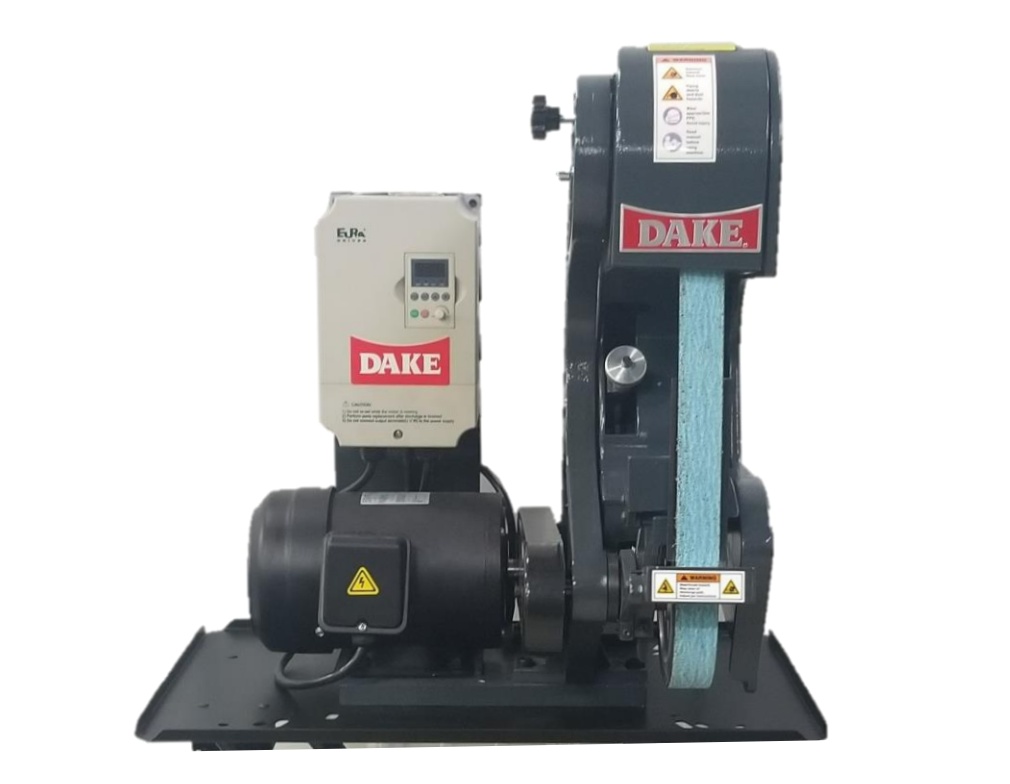

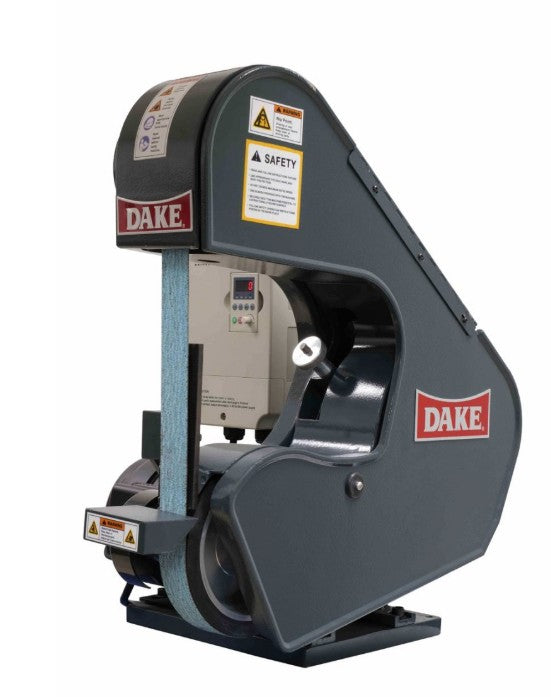

Dake BG-60V 3-Wheel Belt Grinder

*Tray not included

This 3-wheel belt grinder runs on 110 volts single-phase power and will work just about anywhere. This grinder accepts a 1.5" x 60" grinder belt with a 7" diameter contact wheel. Inverter-driven variable speeds range from 800 to 8000 fpm so that you can choose the correct speed for any application. Horizontal and vertical throat depth suits those larger or uncommon shaped parts. Recommended for smoothing over burrs on metal, chamfering edges for welding, and cleaning up castings, among other uses.

Features:

• 3-wheel belt grinder runs on 110 volts single-phase power and will work just about anywhere.
• Accepts a 1.5” x 60” grinder belt.
• 7” diameter contact wheel.
• Inverter-driven variable speeds range from 800 to 8000 fpm so that you can choose the correct speed for any
• application.
• Horizontal and vertical throat depth suits those larger or uncommon shaped parts.
• Fully sealed ball bearings prevent machine breakdowns.
• Comes standard with grinding tables for precision.
• Belt tension adjuster takes the hassle out of tension changes and belt replacement.
• Solid cast-aluminum structure ensures rigidity and vibration reduction.
• For the safety of the operator, rotating parts on this grinder are covered.
• 1 Year warranty.
• Recommended for smoothing over burrs on metal, chamfering edges for welding, and cleaning up castings,
• among other uses.

Specifications:

• Machine Type | MODEL BG-60V, 3 Wheel Grinder
• Motor | 1.5 hp (1.11kw)
• Voltage | 110V 60hz 1PH
• Belt Size | 60” x 1.5” (1524 x 38mm)
• Belt Speed | 800 – 8000 fpm (244 – 2438mpm) Electronic Variable Speed Control
• Shipping Weight | 75 Lbs.
• Shipping Dimensions | 46” x 23” x 23”

Standard Equipment:

• 60 Grit Grinding Belt
• Variable Speed Frequency Drive
