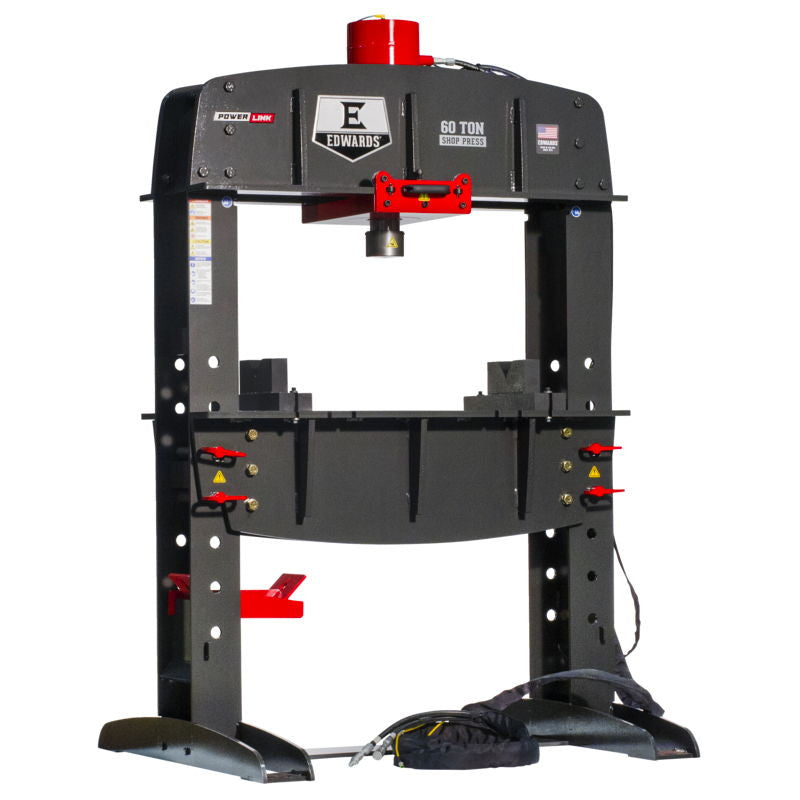

Edwards HAT8010 60 Ton Shop Press With 1 Phase 230 Volt Portable Power Unit

The Edwards Portable Power Unit is an additional power source for your Edwards PowerLink Hydraulic Tools. With several different power options the Portable Power Unit is compact, mobile, and is set up to accommodate all of Edwards' quick-connect Hydraulic Accessory Tools.

Features:

• FLEXIBILITY
• Rolling cylinder provides maximum adaptability
• Open-sided design allows longer material to pass through the frame
• Accepts a variety of standard and custom tooling
• PRODUCTIVITY
• Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate
• Electric foot pedal with integrated jog control
• 20’ quick-connect hoses for simple “plug & play” operation
• SAFETY
• Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket
• PERFORMANCE
• Pressure gauge provides accurate measurements allowing for easy repeatable parts production

Specifications:

• Rating | 60 tons
• Cylinder | 4"
• Stroke | 12-1/4"
• Minimum Ram Speed (In./Sec) | .330
• Minimum Return Speed (In./Sec) | .456
• Work Table | 39-1/4" x 42"
• Steel Frame Thickness | 1/2"
• Product Dimensions | 48" x 54" x 86"
• Shipping Dimensions | 48" x 54" x 90"
• Weight | 1900 lbs

Additional Models (Sold Separately):

• HAT8020 | 60 Ton Shop Press and Portable Power Unit 3 Phase, 230 Volt
• HAT8030 | 60 Ton Shop Press and Portable Power Unit 3 Phase, 460 Volt

Attachments and Accessories (Sold Separately):

• PRB06-1 | Six Piece Press Tooling Set for 60 & 110 Ton Shop Presses
• PRB12 | 12” Press Brake Tooling
• PRB18 | 18” Press Brake Tooling
• PRB24 | 24” Press Brake Tooling
• PRB32 | 32” Press Brake Tooling
• PR135 | Press Brake Back Gauge
• PRB60 | Press Brake Mounting Kit for 60 Ton Shop Press
• PR231 | V-Block Base - 60 Ton Shop Press

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck.  Additional shipping charges will apply to ship to a Non-Commercial Address. (Liftgate Delivery is not an option on this product.  You must provide a way to get it off of the truck.)
• *** Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate
