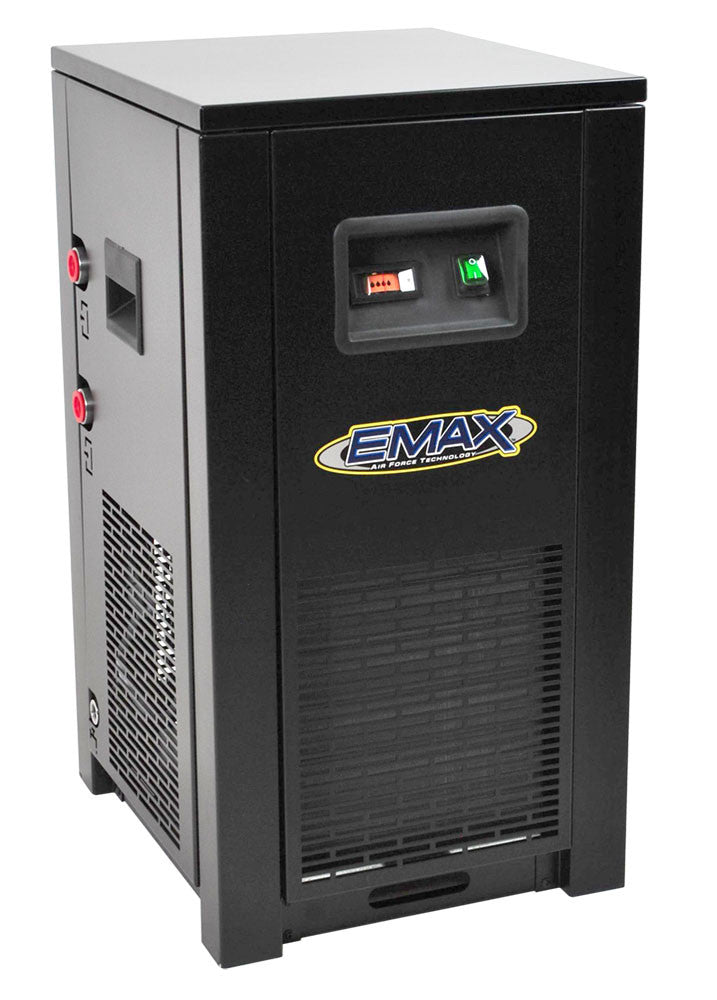

Emax EDRCF1150058 58 CFM Refrigerated Air Dryer

Our EMAX air dryer is the only energy efficient dryer systems with aluminum refrigerated air inner cooler. The air is filtered of all solid particles 0.01 micron and larger. Clean, dry compressed air leaving the dryer minimizes maintenance and repair and also reduces internal dryer contamination. We designed them with Non-corrosive inner and after cooler. Our dryers feature stainless steel heat exchanger for maximum dryer life and less maintenance. Emax Air dryers are UL-CSA approved scroll compressor & electric system for high efficiency and durability. They feature adjustable hot bypass for complete dryer function in low and high CFM flow preventing dryer freeze up.

Features:

• Purifies compressed air by chilling to condense moisture
• Condensate is drained carrying oil & dirt partials away from the air
• Auto drain system – eliminates the need for daily maintenance
• Refrigerant pressure – gauge clearly monitors performance of dew point temp (models under 400 CFM)
• PLC Display (models 400 CFM & above)
• Outlet air baffle heater – prevents condensation on outlet air piping
• Heavy duty steel cabinet
• Trouble free operation refrigerated air inlet inner cooler for high temp cooling
• Top mounted condenser & fan motor
• Environmentally friendly 134A refrigerant
• 5 year Warranty on the Heat Exchanger
• 2 year warranty on the unit

Keep Water, Oil, And Dirt Out of Your Compressed Air

Less corrosion of pipes and tools means less downtime
Avoid splotches & stains on your projects with proper filtration

Energy Efficient Aluminum Refrigerated Air Cooling System

Designed for maximum performance and efficiency

Rust Free, Stainless Steel Heat Exchanger

Maximum heat transfer, maximum dryer life & less maintenance

Refrigerated Air Inlet Inner Cooler

Provides trouble free operation for high temp cooling

Environmentally Safe

Uses 134A refrigerant to prevent damage to the ozone layer

Compact And Efficient

Great for a 10HP systems
58 CFM

Easy To Install

Uses 120V single-phase power, no special wiring needed

Added Features

Auto Drain System
Refrigerant Pressure Gauge
Outlet Air Baffle Heater

Specifications:

• CFM | 58
• Dimensions | 16"l x 18"w x 24"h
• Weight | 90 lbs
• Voltage | 60HZ, 115
• Amp Draw | 7.2
• Dew Point | 37-50°F
• Pipe Size, Inlet & Outlet | 3/4"
• Max Ambient Temp. | 122°F
• Refrigerant Type | R-134A
• Max Rated Inlet Temp | 140°F
• Dryer Drain | Built in automatic
• Dryer Filtration | Built in coalscing Filter
