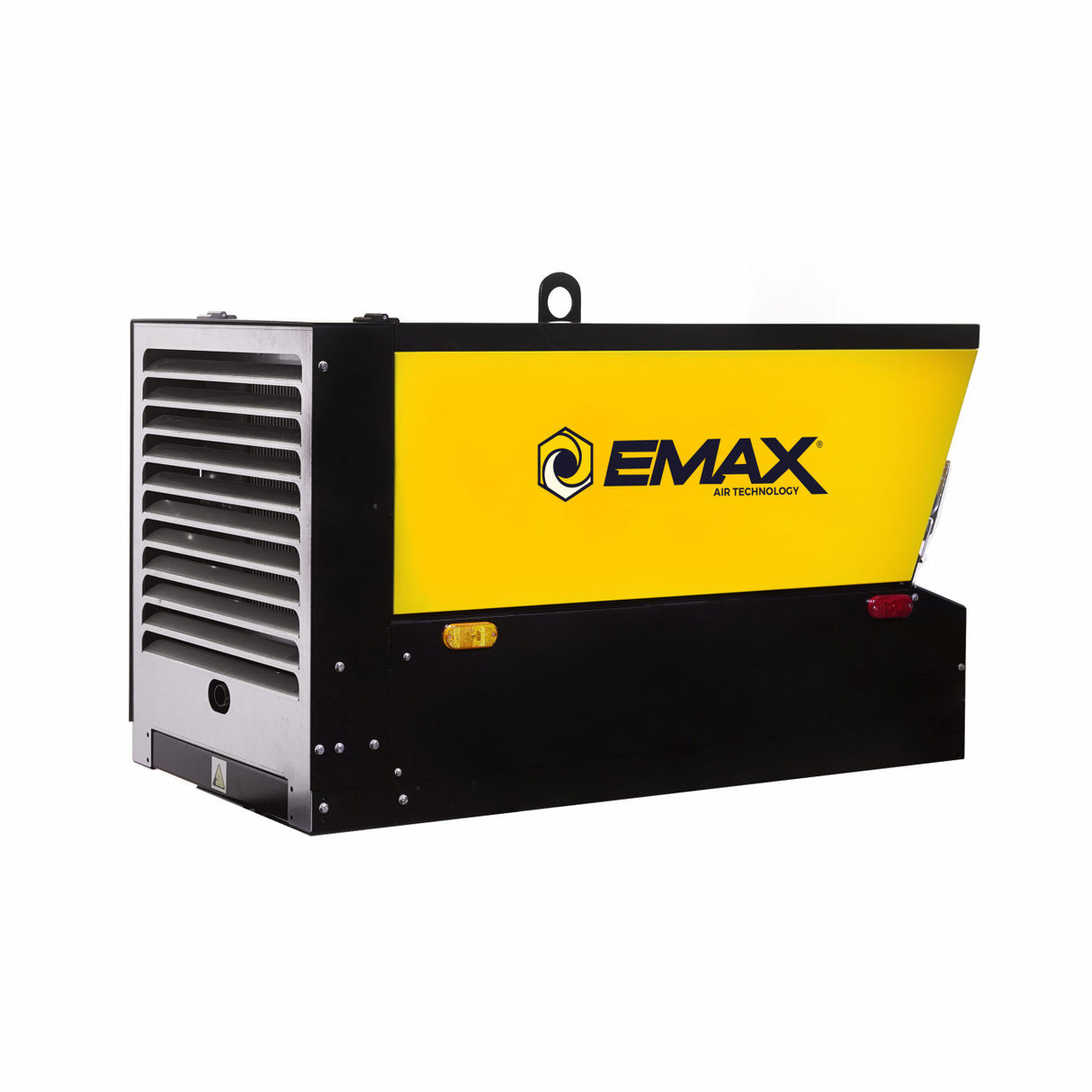

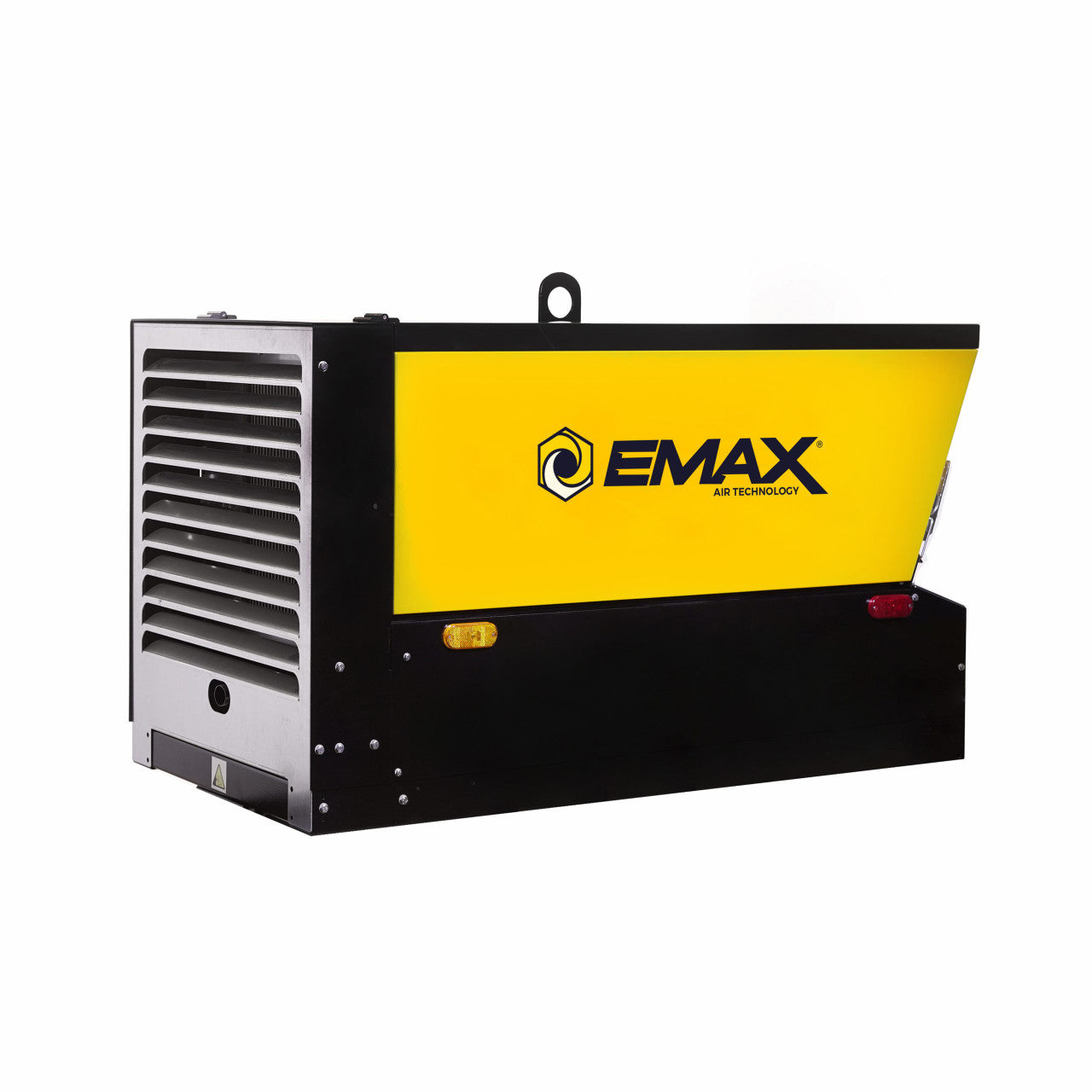

Emax EDS185ST 185 CFM  Diesel Rotary Screw Air Compressor

Features:

• Heavy duty but light weight and well balanced
• Quiet operating exhaust and weather-proof canopy 100% duty cycle
• Liquid cooled turbocharged 4 cyl top rated Kubota engine
• Cold weather starting glow plugs
• Variable speed on demand engine control reduces load for better fuel consumption
• Proven Italian made (since 1930s) rotary screw pump
• 100% duty cycle
• Easy spin on/off Mann brand fuel, oil and air filters
• Large radiator cooling capacity
• Trailer option that is dot certified for highway use (includes title for registration)
• Center position lifting ring for easy loading and unloading
• Hot dipped galvanized under suspension/grill, ball hitch attachment, tail light and instrument panel

Specifications:

• Free air delivery | 185 SCFM@100PSI
• Working pressure (adjustable 80/125) PSI | Set Pressure 7 Bar/100 PSI
• Fuel consumption at full load & full engine speed | 2.5 gal per hr
• Oil tank for storage and separation capacity | 4 gal
• Suction air filter with silencer, reusable standard cartridge | qty 2
• Compressed air outlets | (2) 3/4" and (1) 1" ball valve with quick disconnect
• Engine type | V 1505-T Stage V TIER IV
• Number of cylinders | 4
• Horsepower | 45
• Engine RPM – full load | 3000 RPM
• Engine RPM – idling | 1800 RPM
• Fuel type | Diesel
• Cooling type | Water
• Fuel Tank Capacity | 21 gal
• Compressor coupling type | direct
• Compressor oil capacity | 4 gal (15 liters)
• Battery | 12v
• Weight stationary mount | 1400 lbs

Warranty Options:

1 Year Standard
10 Year Air End Extended
Extended Lifetime Pump Warranty
3 Year Engine Warranty
