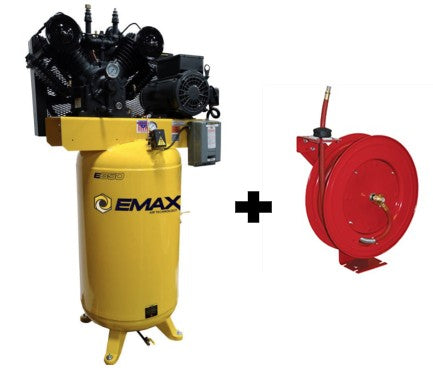

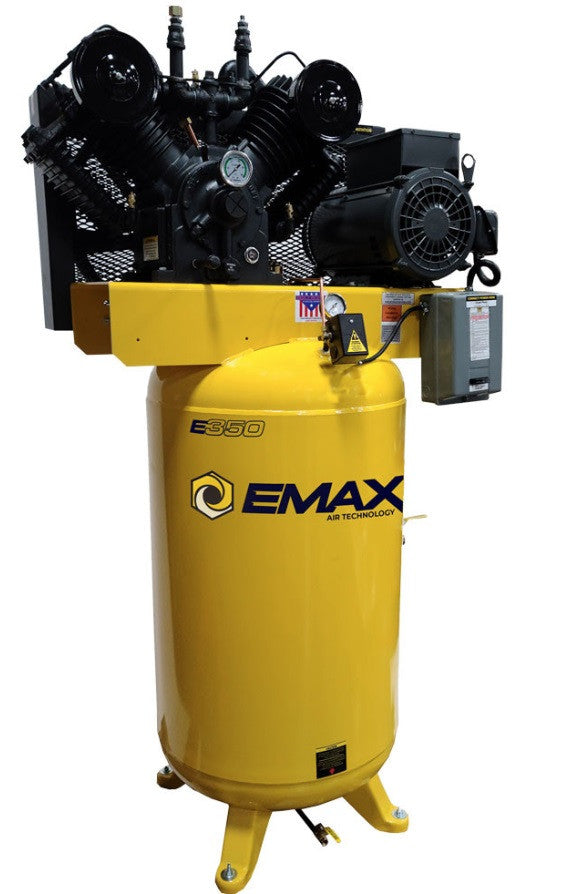

Emax EI07V080V1 E350 Series 7.5hp Compressor, 2 Stage, Pressure Lubricated, Single Phase, V4, 80 Gallon, Vertical

EMAX Industrial 7.5 HP 2 Stage V4, 1 Phase vertical 80 gal. Piston Air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This unit delivers 34 SCFM @ 100 PSI, top PSI of 175. Our unit features industrial ODP electric motors, condor pressure switch, manual ball valve tank drain, powder coated ASME tank 200PSI rating, all paired with all cast iron 70,000 Hr. rated patented pressure lubricated reciprocating pump. Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life rating. At the core of our Emax compressors is our pump. These pumps are SUPER quiet in operation and built to last! We start with a solid cast iron crankcase. Unlike some competitor’s aluminum body crankcases – our solid cast iron crankcase will ensure stable crankshaft alignment and will handle more work load under heavy load conditions. Our pump also features a precision balanced solid cast iron crankshaft with Timken-Style stainless steel roller bearings on the front and rear of the crankshaft to ensure smooth & efficient operation with less drag and less energy use.

Pump Features:

• All steel connecting rods with replaceable rod bearing inserts
• Re-usable oil filter
• Oil Pressure Gauge
• Eligible for lifetime pump warranty
• Removable 100% cast iron cylinders
• All cast iron cylinder heads
• Top quality compression and oil rings
• Precision ground pistons machined to tight tolerances ensures low oil carry over
• Premium “non-absorbent” gaskets prevent oil seepage from pump
• All cast iron flywheel with built-in fan
• Built-in head unloaders
• Built-in inter-cooler and after-coolers

Motor Features:

• Low RPM motors (1750 rpm)
• Large 1-3/8” output shaft
• High quality ball bearings on the front and rear of the motor shaft
• Large starting and running capacitors
• 15 Service Factor load. This means the motor can be pulled 15% over full load for more break horsepower
• Dynamically balanced armature for low vibration levels
• OSHA approved belt guard

More Features:

• Magnetic starter
• ASME code compliant air tank
• USA made and ASME code compliant in 50 states including California
• Top quality pressure switches with an adjustable screw which allows you to adjust your pressure higher or lower
• 100% brass check valves with Teflon Seating
• 100% brass ASME safety valves
• Top quality plumbing fittings are used to maintain proper sealing when connected to the tank
• High quality 100% brass ball valves are used for turning air on and off from the air receiver
• Extended tank water drain pipe plumbed out the front of the unit with a ¼” ball valve handle for easy tank draining
• Load-less starting

Specifications:

• CFM @ 100 PSI | 31
• Compressor Stage | 2
• Pump RPM | 640
• Pump Material | Solid Cast Iron
• Pump Model | APP4V1043TP
• Dimensions | 28"L x 42"W x 72"H
• Product Weight | 735
• Motor RPM | 1750
• Motor Phase | Single
• Voltage available | 230
• Tank Size | 80 Gallon
• Tank orientation | Vertical
• Tank Outlet Size | 3/4"
• Tank Drain | Manual
• Certifications | CSA, ASME,ETL
• Warranty | 1 Year Standard, 5 Year Extended, Lifetime Extended
• Running AMP | 32
• Recommended Breaker | 50 AMP
• Max PSI | 175
• Oil Capacity | 2.5 Quarts
• Drive Type | Belt Driven
• Tank Size | 80 Gallon

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
