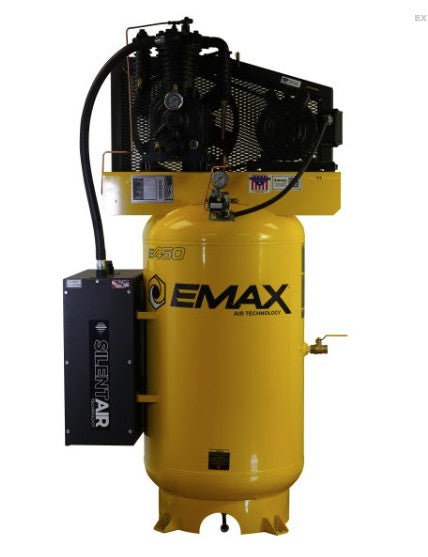

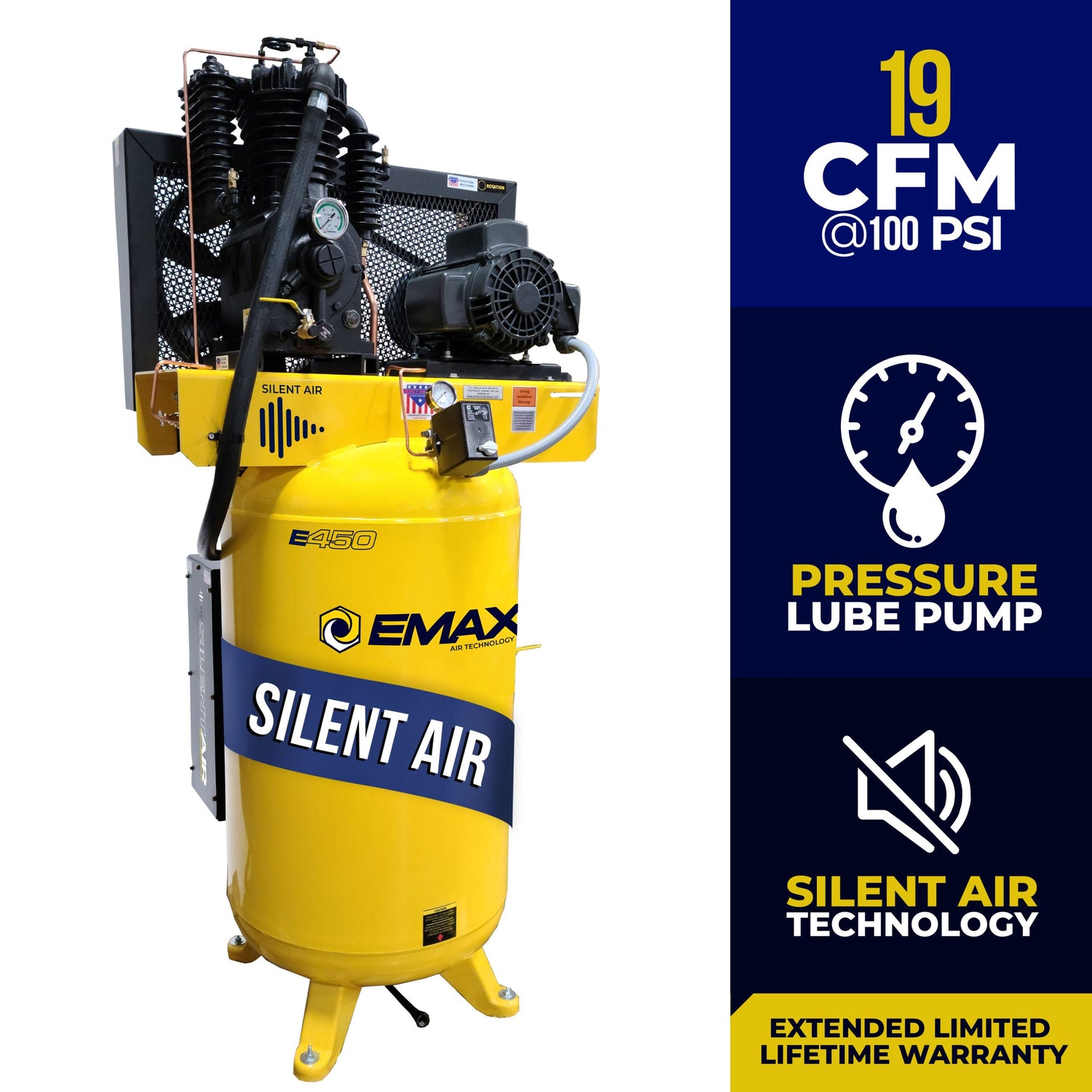

EMAX ESP05V080I1 E450 Series – 5 HP Air Compressor, 80 Gallon, 1 Phase, 2 Stage, Pressure Lubricated, Silent Air System

Engineered and manufactured in the USA.

The whisper series compressors reduce stationary compressor DBA ratings by as much as 25%. The Whisper can be installed and operated in all garage, farm shop, and industrial applications which eliminate the need for separate housing for the air compressor. The Whisper silent air systems are already installed on the back of the tank with brackets that are fabricated for easy removal and low profile. It also acts as a secondary filtration for cleaner air.

Features:

• All steel connecting rods with replaceable rod bearing inserts.
• Oil Pressure Gauge
• Eligible for lifetime pump warranty
• Removable 100% cast iron cylinders.
• All cast iron cylinder heads.
• “Disc valve design” intake and exhaust valves.
• Top quality compression and oil rings.
• Precision ground pistons machined to tight tolerances ensures low oil carry over.
• Premium “non-absorbent” gaskets prevent oil seepage from pump.
• All cast iron flywheel with built-in fan.
• Built-in head unloaders.
• Built-in inter-cooler and after-coolers.
• Large 1-3/8” output shaft
• High quality ball bearings on the front and rear of the motor shaft
• Large starting and running capacitors
• 15 Service Factor load.
• Dynamically balanced armature for low vibration levels

Specifications:

• CFM @ 100 PSI | 19
• Compressor Stage | Two
• Pump RPM | 800
• Pump Material | Solid Cast Iron
• Pump Model | APP2I0524TP
• Dimensions | 42"l x 34"w x 75"h
• Product Weigh | 620
• Motor RPM | 1750
• Motor Phase | Single
• Voltage available | 230
• Tank Size | 80 Gallon
• Tank orientation | Vertical
• Tank Outlet Size | 3/4"
• Tank Drain | Timed Automatic
• Certifications | CSA, ASME,ETL
• Warranty | 1 Year Standard, 5 Year Extended, Lifetime Extended
• Running AMP | 24
• Recommended Breaker | 40 AMP
• Max PSI | 175
• Oil Capacity | 2 Quarts
• Drive Type | Belt Driven
• Tank Size | 80 Gallon
