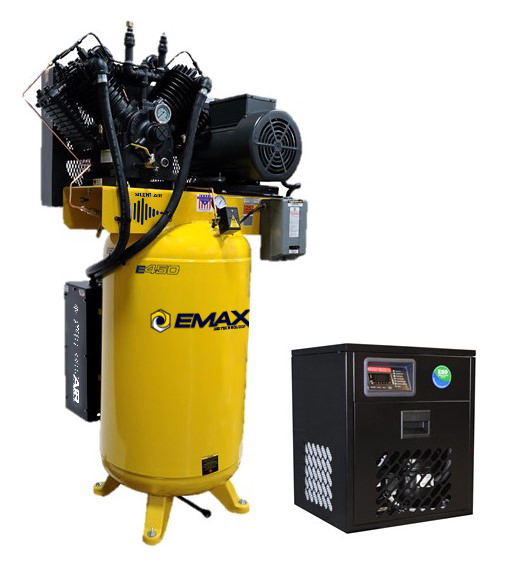

EMAX ESP07V080V1PK 7.5 HP Air Compressor with EDRCF1150030 30 CFM Air Dryer, 1 Phase, Silent Air System

Silent Air Piston Air Compressor

Engineered and manufactured in the U.S.A. The whisper series compressors reduce stationary compressor DBA ratings by as much as 25%! A noise suppression device was first conceived by EMAX engineers after feedback from competitor compressor users revealed a large number of complaints regarding the extreme noise level of their compressors in a work environment. Stationary air compressor noise levels typically require owners to incur the added expense of a building or structure to house the compressor in an attempt to reduce noise in the work environment. The Whisper can be installed and operated in all Garage, Farm Shop, and Industrial applications which eliminate the need for traditionally expensive and often inadequate separate buildings or structures to house the air compressor. The Whisper silent air systems are already installed on the back of the tank with brackets that are fabricated for easy removal and low profile.

The Whisper dissipates compressor intake noise by channeling the intake air through a series of baffle plates and pre-filter media within the silencer cabinet. As a result, the piston intake noise is trapped and dissipated within the silencer structure. As a result, the piston intake noise is trapped and dissipated within the silencer structure. It also acts as a secondary filtration for cleaner air.

This Bundle has our Emax Industrial Plus 7.5 HP 2 Stage Inline 1 Phase Vertical 80 Gallon Piston Air Compressor is designed for up to 50,000 hours of commercial or industrial use with proper maintenance. We have paired it with our environmentally friendly 30CFM Refrigerated air dryer.

30CFM REFRIGERATED AIR DRYER

EMAX air dryer is the only energy efficient dryer systems with aluminum refrigerated air inner cooler. The air is filtered of all solid particles 0.01 micron and larger. Clean, dry compressed air leaving the dryer minimizes maintenance and repair and also reduces internal dryer contamination. We designed them with Non-corrosive inner and after cooler. Our dryers feature stainless steel heat exchanger for maximum dryer life and less maintenance. Emax Air dryers are UL-CSA approved scroll compressor & electric system for high efficiency and durability. They feature adjustable hot bypass for complete dryer function in low and high CFM flow preventing dryer freeze up.

Features:

• Keep Water, Oil, And Dirt Out of Your Compressed Air
• Less corrosion of pipes and tools means less downtime
• Avoid splotches & stains on your projects with proper filtration
• Energy Efficient Aluminum Refrigerated Air Cooling System
• Designed for maximum performance and efficiency
• Rust Free, Stainless Steel Heat Exchanger
• Maximum heat transfer, maximum dryer life & less maintenance
• Refrigerated Air Inlet Inner Cooler
• Provides trouble free operation for high temp cooling
• Adjustable dual timer auto drain
• Aluminum Plate Heat Exchanger with 10 year warranty
• Built in Pre-filter replaceable .005 Micron Filter
• Active Coalescing Filter with replaceable .001 micron filter
• Great for a 5-7.5 HP systems
• 30 CFM
• Uses 120V single-phase power, no special wiring needed

**NOTE THIS PACKAGE DOES NOT COME WITH HYDRAULIC HOSE OF CONNECTION LINE**

Specifications:

• CFM @ 100 PSI | 31
• Compressor Stage | 2
• Pump RPM | 640
• Dimensions | 38"l x 42"w x 72"h
• Product Weight | 743 lbs
• Motor RPM | 1750
• Motor Phase | Single
• Voltage available | 230
• Tank Size | 80 Gallon
• Tank Outlet Size | 3/4"
• Tank Drain | Timed Automatic
• Noise Rating (DBA) | 64
• Warranty | 1 Year Standard, 5 Year Extended, Lifetime Extended
• Running AMP | 32
• Recommended Breaker | 50 AMP
• Max PSI | 175
• Oil Capacity | 2.5 Quarts
• Drive Type | Belt Driven
• Tank Size | 80 Gallon

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
