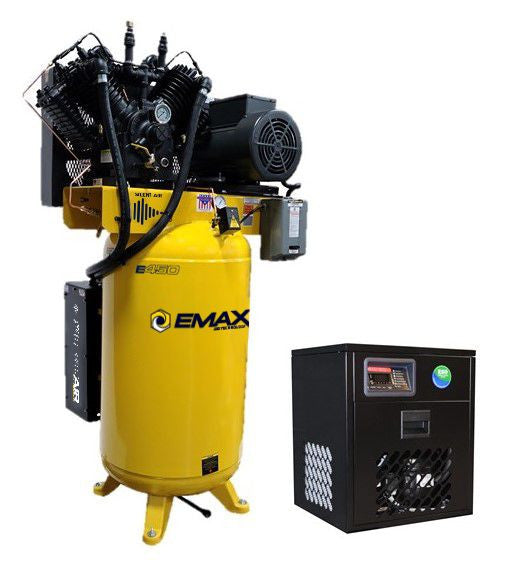

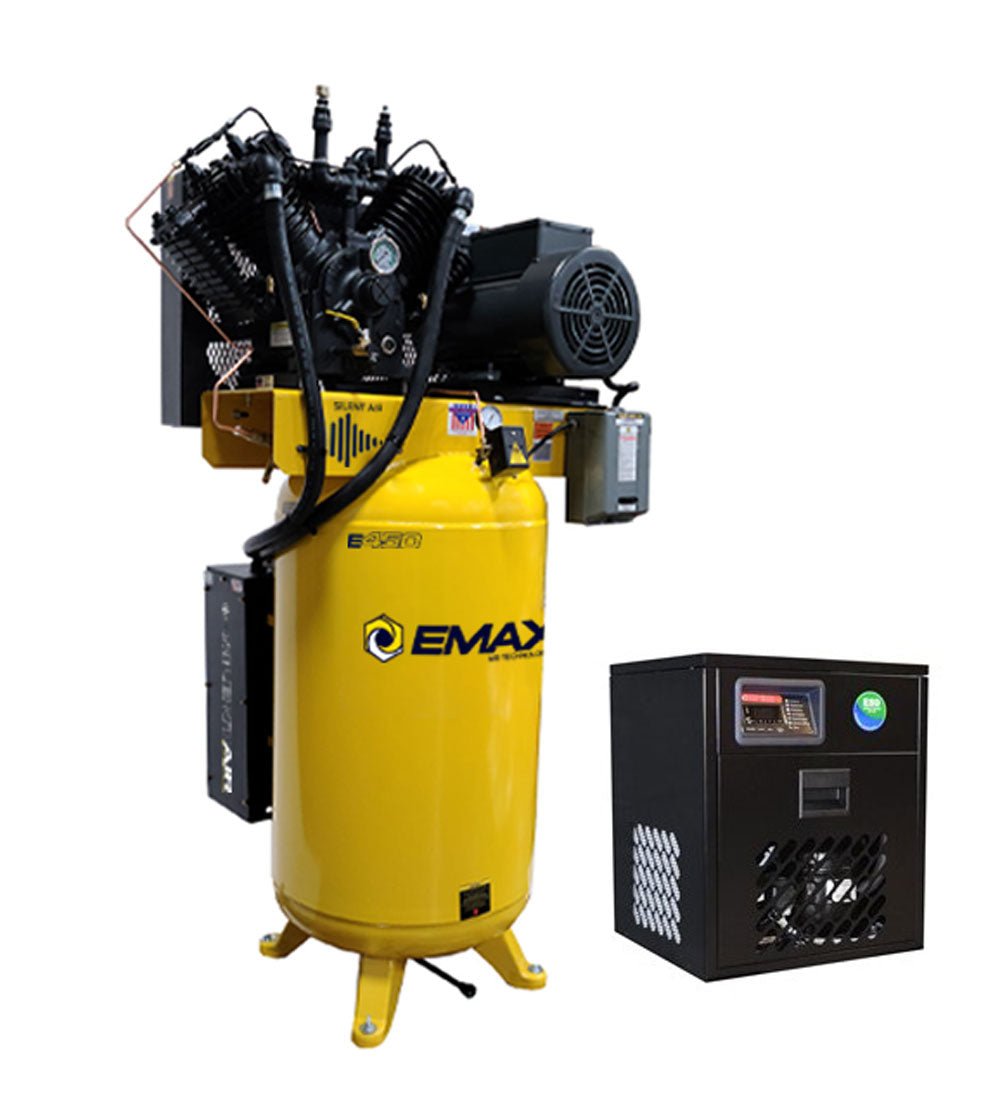

EMAX ESP10V080V1PK 10 HP Air Compressor with 58 CFM Air Dryer, 1 Phase, Silent Air System

Silent Air Piston Air Compressor

Engineered and manufactured in the U.S.A. The whisper series compressors reduce stationary compressor DBA ratings by as much as 25%! A noise suppression device was first conceived by EMAX engineers after feedback from competitor compressor users revealed a large number of complaints regarding the extreme noise level of their compressors in a work environment.   Stationary air compressor noise levels typically require owners to incur the added expense of a building or structure to house the compressor in an attempt to reduce noise in the work environment.   The Whisper can be installed and operated in all Garage, Farm Shop, and Industrial applications which eliminate the need for traditionally expensive and often inadequate separate buildings or structures to house the air compressor. The Whisper silent air systems are already installed on the back of the tank with brackets that are fabricated for easy removal and low profile.

The Whisper dissipates compressor intake noise by channeling the intake air through a series of baffle plates and pre-filter media within the silencer cabinet. As a result, the piston intake noise is trapped and dissipated within the silencer structure. As a result, the piston intake noise is trapped and dissipated within the silencer structure. It also acts as a secondary filtration for cleaner air.

Emax compressor has made it easier for you to select the equipment you need, whether you are working out of a garage or an industrial environment we have what you need. We have taken the guess work out of pairing the perfect refrigerated dryer by introducing our bundle packages. Emax has paired these dryers to fit the CFM requirements of the compressor you have chosen saving you time, money and giving you peace of mind.

This Bundle has our Emax Industrial Plus 10 HP 2 Stage V4 1 Phase Vertical 80 Gallon Piston Air Compressor is designed for up to 50,000 hours of commercial or industrial use with proper maintenance. We have paired it with our environmentally friendly 58CFM Refrigerated air dryer.

COMPRESSOR PUMP

At the core of our Emax compressors is our pump. These pumps are SUPER quiet in operation and built to last! We start with a solid cast iron crankcase. Unlike some competitor’s aluminum body crankcases – our solid cast iron crankcase will ensure stable crankshaft alignment and will handle more work load under heavy load conditions.

Pump also features a precision balanced solid cast iron crankshaft with Timken-Style stainless steel roller bearings on the front and rear of the crankshaft to ensure smooth & efficient operation with less drag and less energy use.

All steel connecting rods with replaceable rod bearing inserts. This allows our rods to be rebuilt! 99% of our competitors now use “throw-away” aluminum connecting rods in their pumps that have no re-build capability.

Removable 100% cast iron cylinders. These solid cast iron cylinders are more stable under heavy workloads and do not warp from heat. Most of our competitors are using aluminum cylinders with a pressed-in sleeve that warp under extreme heat. Our solid cast iron cylinders can “take the heat” and are designed to perform on heavy load demands.

Top quality compression and oil rings. Our rings ensure performance with low oil carry over (1-5 PPM).

58CFM REFRIGERATED AIR DRYER

Our EMAX air dryer is the only energy efficient dryer systems with aluminum refrigerated air inner cooler. The air is filtered of all solid particles 0.01 micron and larger. Clean, dry compressed air leaving the dryer minimizes maintenance and repair and also reduces internal dryer contamination. We designed them with Non-corrosive inner and after cooler. Our dryers feature stainless steel heat exchanger for maximum dryer life and less maintenance. Emax Air dryers are UL-CSA approved scroll compressor & electric system for high efficiency and durability. They feature adjustable hot bypass for complete dryer function in low and high CFM flow preventing dryer freeze up.

Features:

• Keep Water, Oil, And Dirt Out of Your Compressed Air
• Less corrosion of pipes and tools means less downtime
• Avoid splotches & stains on your projects with proper filtration
• Energy Efficient Aluminum Refrigerated Air Cooling System
• Designed for maximum performance and efficiency
• Rust Free, Stainless Steel Heat Exchanger
• Maximum heat transfer, maximum dryer life & less maintenance
• Refrigerated Air Inlet Inner Cooler
• Adjustable dual timer auto drain
• Aluminum Plate Heat Exchanger with 10 year warranty
• Built in Pre-filter replaceable .005 Micron Filter
• Active Coalescing Filter with replaceable .001 micron filter
• Compact And Efficient
• Great for a 10 HP system
• 58 CFM
• Uses 120V single-phase power, no special wiring needed

**NOTE THIS PACKAGE DOES NOT COME WITH HYDRAULIC HOSE OF CONNECTION LINE

Specifications:

• CFM @ 100 PSI | 38
• Compressor Stage | 2
• Pump RPM | 800
• Pump Material | Solid Cast Iron
• Pump Model | APP4V1043TP
• Dimensions | 38"l x 42"w x 72"h
• Product Weight | 810 lbs
• Motor RPM | 1750
• Motor Phase | Single
• Voltage available | 230
• Tank Size | 80 Gallon
• Tank orientation | Vertical
• Tank Outlet Size | 3/4"
• Tank Drain | Timed Automatic
• Certifications | UL,CSA, ASME,ETL
• Noise Rating (DBA)-66
• Warranty | 1 Year Standard, 5 Year Extended, Lifetime Extended
• Running AMP | 40
• Recommended Breaker | 60 AMP
• Max PSI | 175
• Oil Capacity | 2.5 Quarts
• Drive Type | Belt Driven
• Tank Size | 80 Gallon
