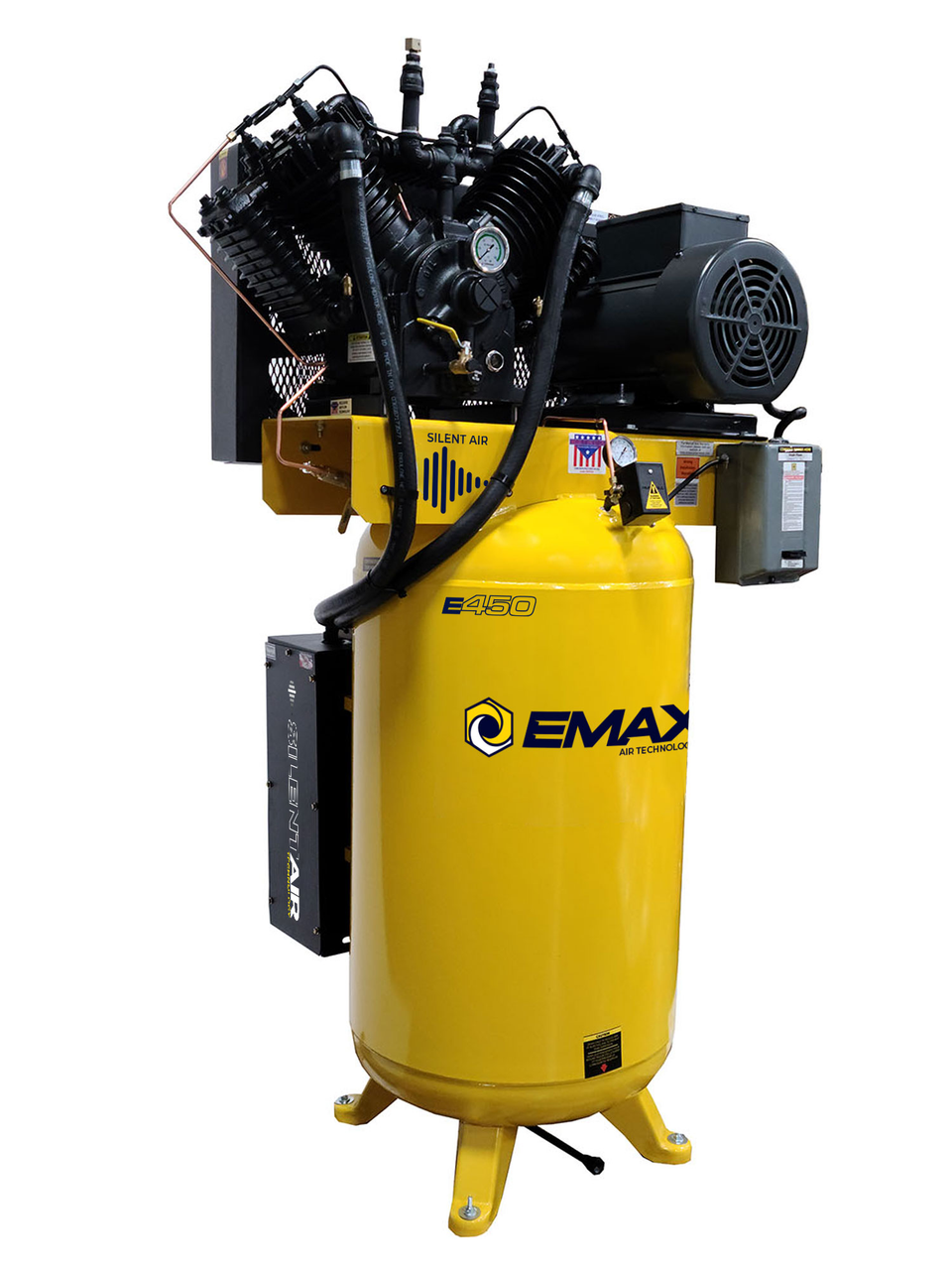

EMAX ESP10V080V3   10 HP Air Compressor, 80 Gallon, 3 Phase,2 Stage Pressure Lubricated, Silent Air System

Silent Air Piston Air Compressor

Engineered and manufactured in the U.S.A. The whisper series compressors reduce stationary compressor DBA ratings by as much as 25%! A noise suppression device was first conceived by EMAX engineers after feedback from competitor compressor users revealed a large number of complaints regarding the extreme noise level of their compressors in a work environment. Stationary air compressor noise levels typically require owners to incur the added expense of a building or structure to house the compressor in an attempt to reduce noise in the work environment. The Whisper can be installed and operated in all Garage, Farm Shop, and Industrial applications which eliminate the need for traditionally expensive and often inadequate separate buildings or structures to house the air compressor. The Whisper silent air systems are already installed on the back of the tank with brackets that are fabricated for easy removal and low profile.

The Whisper dissipates compressor intake noise by channeling the intake air through a series of baffle plates and pre-filter media within the silencer cabinet. As a result, the piston intake noise is trapped and dissipated within the silencer structure. As a result, the piston intake noise is trapped and dissipated within the silencer structure. It also acts as a secondary filtration for cleaner air.

Features:

• All steel connecting rods with replaceable rod bearing inserts. This allows our rods to be rebuilt! 99% of our competitors now use “throw-away” aluminum connecting rods in their pumps that have no re-build capability.
• Re-usable oil filter
• Oil Pressure Gauge
• Eligible for lifetime pump warranty
• Removable 100% cast iron cylinders. These solid cast iron cylinders are more stable under heavy workloads and do not warp from heat. Most of our competitors are using aluminum cylinders with a pressed-in sleeve that warp under extreme heat. This makes competitor pumps good for about a 40-50% duty cycle – while claiming a 100% duty cycle. Most of the pumps with aluminum cylinders have to be replaced in 1-2 years because they would not hold up under heavy use. Not our Air pumps! Our solid cast iron cylinders can “take the heat” and are designed to perform on heavy load demands.
• All cast iron cylinder heads. Cast iron heads are more durable and dependable for trouble free operation.
• “Disc valve design” intake and exhaust valves. Disc valves have been around for over 100 years and have been proven to perform. Most of our competitors are using “throw-away” reed valves which are not nearly as durable and can’t be re-built. Our disc valves come right out of the top of the cylinder head where they can be serviced in minutes instead of hours like reed valves.
• Top quality compression and oil rings. Our rings ensure performance with low oil carry over (1-5 PPM).
• Precision ground pistons machined to tight tolerances ensures low oil carry over.
• Premium “non-absorbent” gaskets prevent oil seepage from pump.
• All cast iron flywheel with built-in fan. The extra weight of our cast iron flywheel during run cycle gives the pump more “throw” on the compression stroke which will result in fewer loads on the electric motor. Some manufacturers use aluminum flywheels that do not have the proper weight ratio to give the proper throw on the compression stroke when the pump is running.
• Built-in head unloaders. These unloaders are built into the intake valve assembly on the compressor head and perform a valuable function. They unload or open the intake valves under constant run applications. This feature reduces internal pump heat from compression because the intake valve is held open throughout the unloading cycle. This allows fresh air to come into the cylinder chamber. Under the compression stroke, the unloader holds the intake valve open allowing the air to blow back out the intake filter. This fresh air absorbs the heat out of the pump under heavy workloads.
• Built-in inter-cooler and after-coolers. The inter-cooler allows air to be cooled between stages while the air cooled after-cooler provides a second cooling stage that cools the air before it goes into the tank. Our after-cooler also includes an all copper main feed line from the pump into the tank.

MAGNETIC STARTER

This unit has a prewired magnetic starter. A magnetic starter is necessary for any motor over 15 amps. This greater amp load puts more load on the contacts. A typical pressure switch will not handle this greater load, so a prewired magnetic starter is required. The use of a magnetic starter gives you longer life on your controls because they are not overloaded and gives you trouble-free operation.

CONTINUOUS RUN & AUTOMATIC START/STOP

Emax Compressors come equipped with “continuous run” feature that maximizes performance and reduces wear on the internal components of your motor. Under heavy workload applications such as sandblasting, your compressor can cycle on and off many times per hour. This constant cycling is causing more wear on the magnetic contacts in the motor because they are arching as the motor starts and stops. If your workload is over 50% – 60% duty cycle we recommend engaging the continuous run feature to eliminate this “start & stop” arching and wear and tear on the magnetic contactors in your motor. For normal workloads in your shop, you can turn off the continuous run and the unit will go back to automatic start/stop operation.

Specifications:

• CFM @ 100 PSI | 38
• Compressor Stage | 2
• Pump RPM | 800
• Pump Material | Solid Cast Iron
• Pump Model | APP4V1043TP
• Dimensions | 38"l x 42"w x 72"h
• Product Weight | 810 lbs
• Motor RPM | 1750
• Motor Phase | 3
• Voltage Available | 208/230/460
• Tank Size | 80 Gallon
• Tank Orientation | Vertical
• Tank Outlet Size | 3/4"
• Tank Drain | Timed Automatic
• Certifications | UL,CSA, ASME,ETL
• Warranty | 1 Year Standard, 5 Year Extended, Lifetime Extended
• Running AMP | 24 AMP @ 208/230 VOLT- 12 AMP @ 460 VOLT
• Recommended Breaker | 40 AMP @ 208/230- 20 AMP @ 460 VOLT
• Max PSI | 175
• Oil Capacity | 2.5 Quarts
• Drive Type | Belt Driven
• Tank Size | 80 Gallon

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
