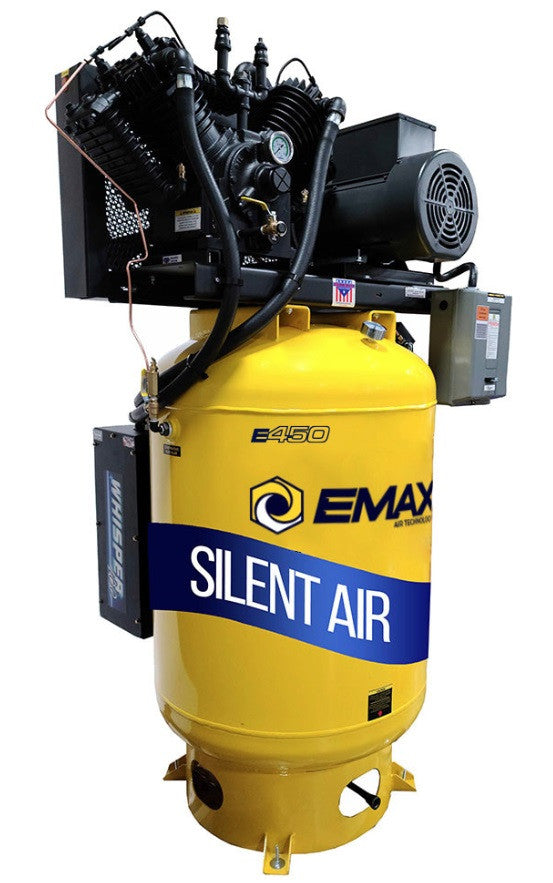

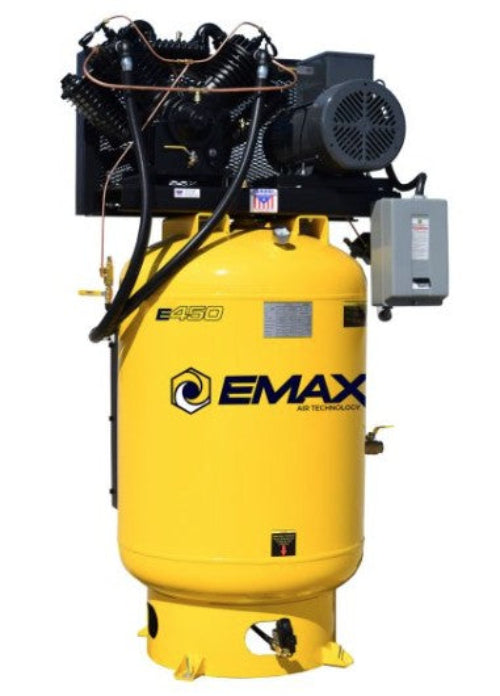

Emax 100 HP Air Compressor, 120 Gallon, 3 Phase,2 Stage Pressure Lubricated, Silent Air System

Silent Air Piston Air Compressor

This EMAX Industrial Plus 10 HP 2 Stage V4 3 Phase vertical 120 gal. Piston Air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This unit delivers 38 SCFM @ 100 PSI, top PSI of 175. Our unit features industrial TEFC electric motors, magnetic starters, automatic tank drain, powder coated ASME tank 200PSI rating, along with our continuous run functionality all paired with all cast iron 70,000 Hr. rated patented pressure lubricated reciprocating pump. This unit features our patented Whisper100 silent air system already installed. The Whisper100 dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the warranty in the industry!

• Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life rating
• Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
• Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
• Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance
• Silent Air Technology
• ETL Certified
• 208/230/460 Volt Option Available

Specifications:

• CFM @ 100 PSI | 38
• Compressor Stage | 2
• Pump RPM | 800
• Pump Material | Solid Cast Iron
• Pump Model | APP4V1043TP
• Product Weight | 810 lbs
• Motor RPM | 1750
• Motor Phase | 3
• Voltage Available | 208/230/460
• Tank Size | 120 Gallon
• Tank Orientation | Vertical
• Tank Outlet Size | 1"
• Tank Drain | Timed Automatic
• Certifications | CSA, ASME,ETL
• Warranty | 1 Year Standard, 5 Year Extended, Lifetime Extended
• Max PSI | 175
• Tank Size | 80 Gallon

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
