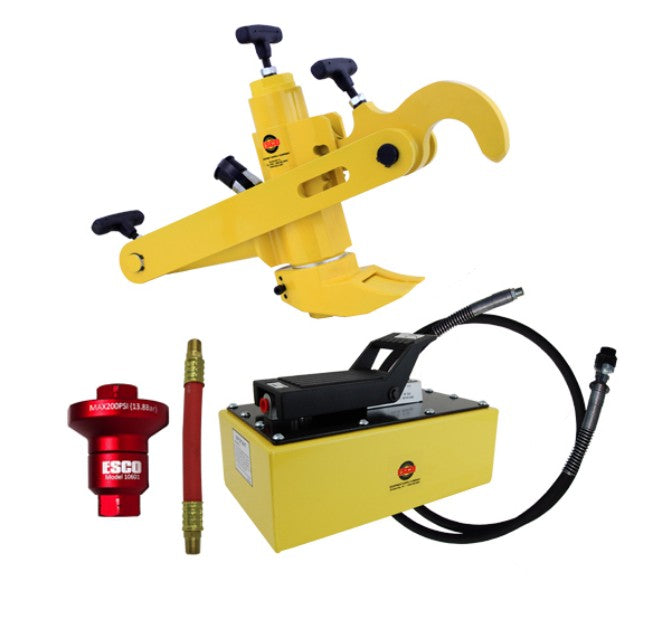

ESCO 10220 Euro Style Bead Breaker Kit - 5 Quart Hydraulic Pump

The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.

The ESCO Euro Style Bead Breaker Kit includes:

• 10107 | Euro Style Bread Breaker Tool
• 10592 | 5 Quart Turbo II Hydraulic Air Pump
• 10604 | 8' Hose assembly with Hose Coupler
• 10601K | 6″ Whip-Hose, Air Reducer

Rim Applications:

• 1 Piece Rim
• 2 Piece Rim
• 3 Piece Rim

ESCO 10107 Euro Style Bead Breaker - Aluminum Series

The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.

Features:

• Lightweight aluminum bead breaker reduces weight of the tool by approx. 20+%
• Works on all single piece, 2-piece, and 3-piece tires & rims
• 13.8 tons of bead breaking force
• Stroke: 4.25″ | 108mm
• Hook clamp specifically designed for 3-piece wheels
• Specialty designed foot pushing against bead
• Lightweight aluminum construction
• T-handle for easy use and positioning

Specifications:

• Weight | 32 lbs. (15kg)

ESCO 10592 5 Quart Metal Reservoir Air Hydraulic Pump

Features:

• Enough oil capacity to operate lifting jacks, cylinders, and then switch to bead breaking tools
• Rugged 5 quart metal reservoir
• 10,000 psi hydraulic pressure
• Specifically designed for tire service trucks
• Air inlet filter keeps air clean
• All Metal Air Motor

Specifications:

• Weight | 27 lbs. (12 kg)

ESCO 10604 Hydraulic Hose Kit

Hydraulic hose with swivel fitting, hose won’t kink. Reinforced with 2 layers of braided steel. Use with any 10,000 psi. pump, ram, or bead breaker.

Specifications:

• Length | 8' (8' Hose with 3/8″ 18 Male Ends)
• Weight | 5 lbs. (2.2 kg)

ESCO 10601K Air Reducer with 6" Whip-Hose

The ESCO Air Reducer, for Air/Hydraulic Pumps, is designed to regulate the air pressure that is received by the hydraulic pump, that is then used to power all ESCO Hydraulic Tools.

Features:

• Maintaining air pressure when using Hydraulic Equipment will increase the Proper Functioning of Hydraulic Equipment, Protect Air/Hydraulic Pumps from Over-Flow of Air, & Keep ESCO Hydraulic Products in their PRIME.
• Maintain recommended working air pressure
• Easy installation & usage
• Model #10601K comes with Air Reducer & 6″ Whip-Hose (Model #10601H)
• Can be used in conjunction with multiple ESCO products

MADE IN CHINA
