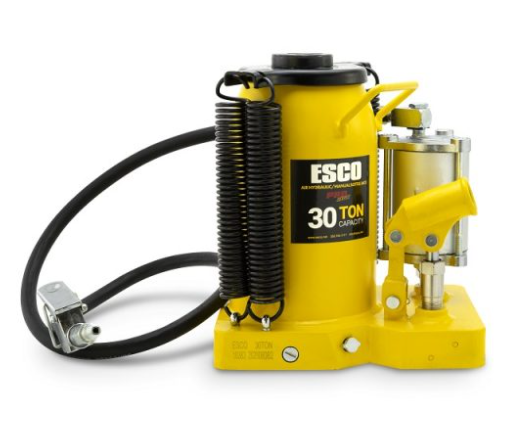

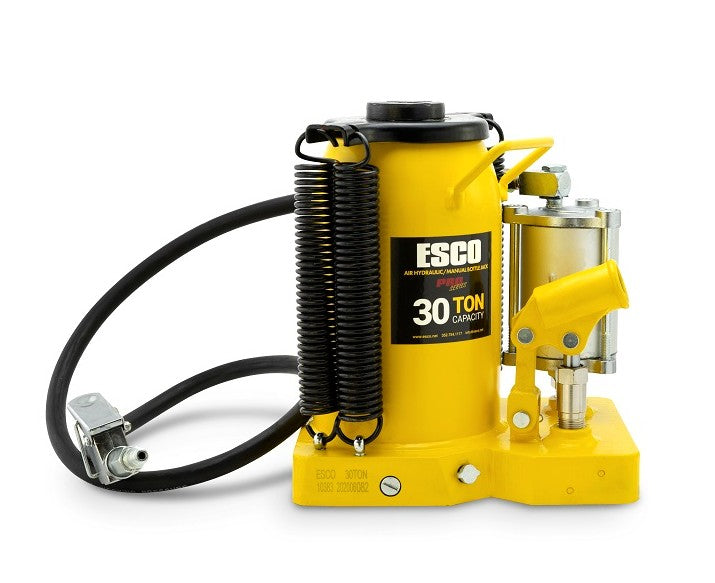

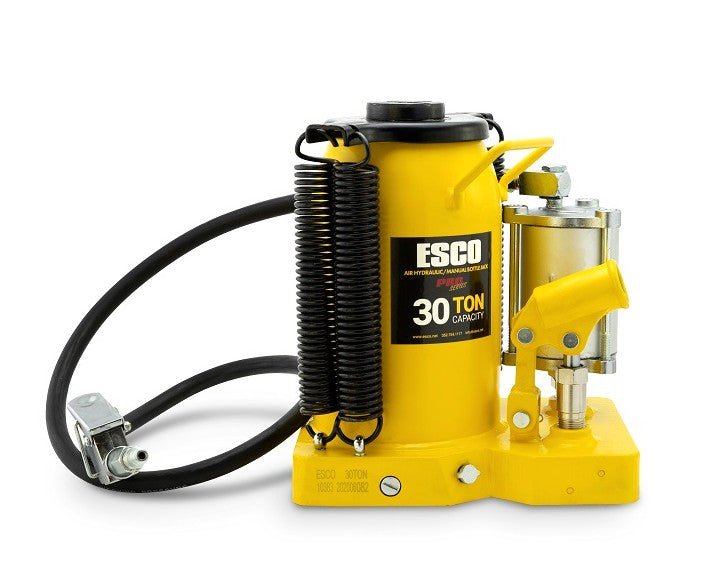

ESCO 10383 PRO Series 30 Ton Air Hydraulic Bottle Jack

The ESCO PRO SERIES 20 TON AIR HYDRAULIC BOTTLE JACK lifting equipment is designed with the heavy-duty tire service market in mind. With lifting capacities from 12 Ton and up to 30 Tons, there is a Jack that will fit any service technician’s needs. Each jack is designed uniquely for specific applications including Commercial Truck, Bus, Tractor & Farm Equipment, and much more.

Benefits:

• Fully welded cylinder and frame provide superior strength and extended service life.
• Extra thick jack base provides exceptional support and stability in severe conditions.
• The compact design makes these jacks great for multiple applications including Commercial Truck, Bus, Tractor & Farm Equipment, and much more.
• Chrome-plated piston for extra rust and corrosion resistance.
• Fitted with a safety valve to prevent overloading.
• Double spring design for controlled and safe descent while releasing pressure from the cylinder.

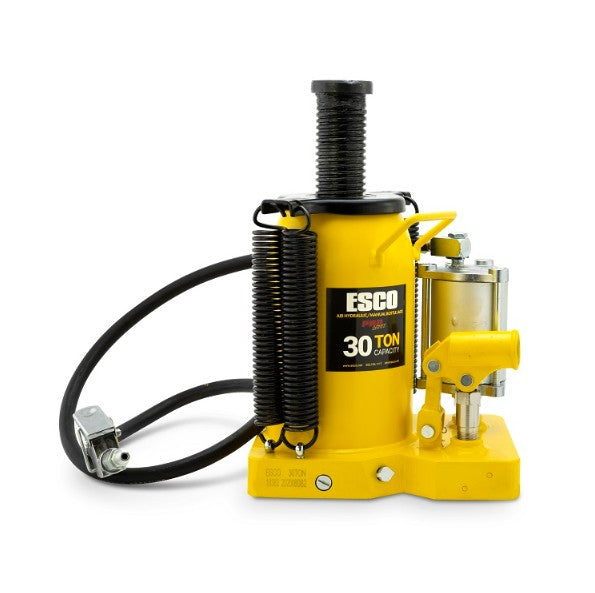

• Heat Treated Adjustable Extension Screw provides additional and precise height adjustments. Assists in not overextending cylinder to reach designed heights.

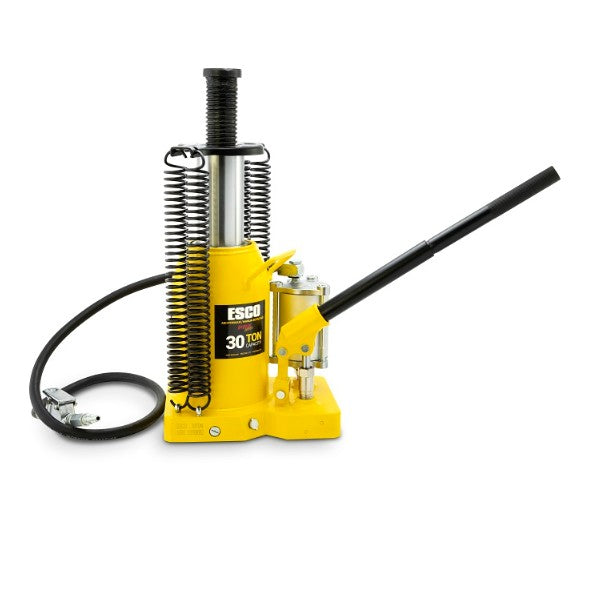

• Design to be operated using air or manually with included two-piece lifting/lowering handle.
• Includes 4 ft. swivel end air hose with easy to use handheld push-button air trigger. Air trigger includes 1/4 in. NPT fitted air inlet, in-line air filter (extends the life of air motor), and airflow latch- for easier constant airflow while raising of the jack to load.
• Fitted with a heavy-duty constructed chrome-plated air motor designed with wear-resistant parts to ensure longevity and dependability in any lifting application.

Features:

• Compact design makes these jacks great for multiple applications including: Commercial Truck,
• Bus, Tractor & Farm Equipment, and much more.
• Chrome plated piston for extra rust and corrosion resistance.
• Fitted with a safety value to prevent overloading.
• Double spring design for controlled and safe decent while releasing pressure from the cylinder.
• Design to be operated using air or manually with included two-piece lifting/lowering handle.
• Fitted with a heavy duty constructed chrome plated air motor designed with wear-resistant parts to ensure longevity and dependability in any lifting application.

Specifications:

• Capacity | 30 Ton (60,000 lbs)
• Minimum Height | 10.875 in
• Maximum Height | 20 in
• Ram Travel | 6 in
• Screw Adj | 3.75 in
• Saddle Width | 1.75 in
• Base Thickness | 1.5 in
• Base Size L x W | 9.625 x 7.125 in
• Inner Package Dimensions | NA
• Outer Package Dimensions | 11 x 10 x 12 in
• Net Weight | 63 lbs
• Gross Weight | 64 lbs
• Air Inlet Fitting | 1/4 in NPT
• Air Pressure | 110-125 psi
• Warranty | 1 year
