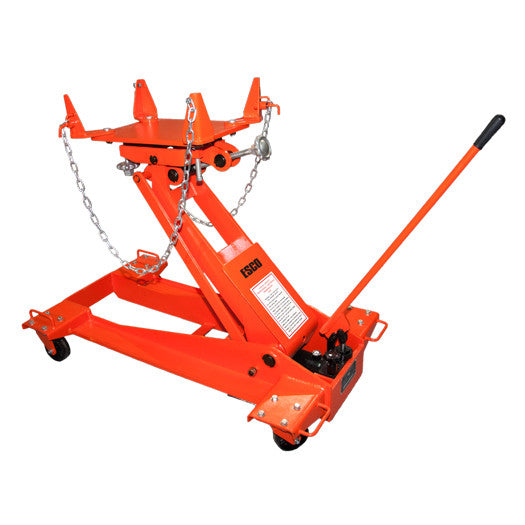

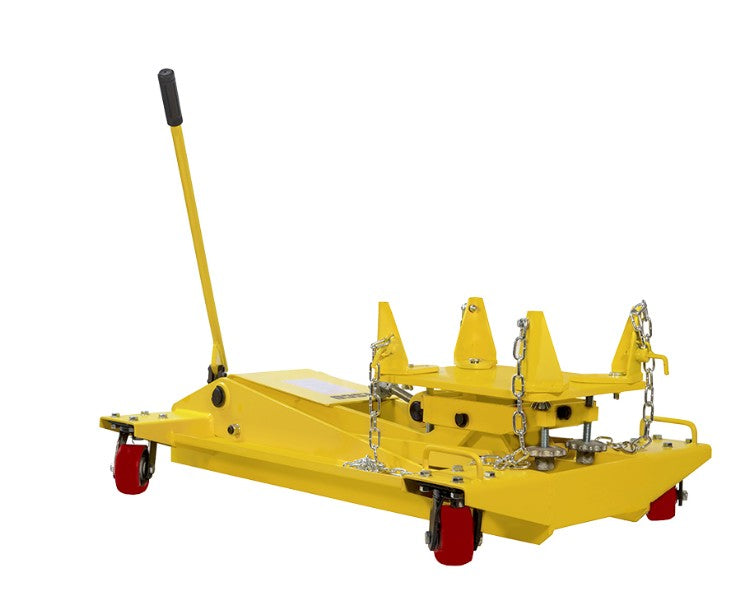

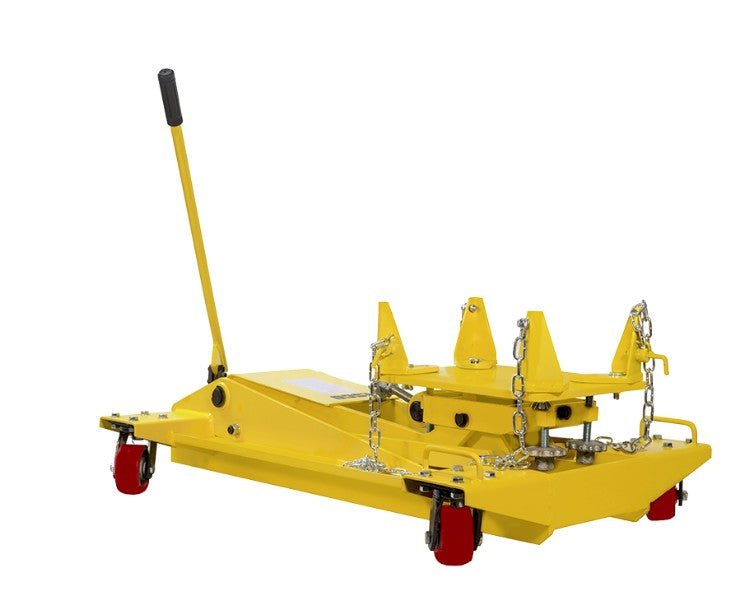

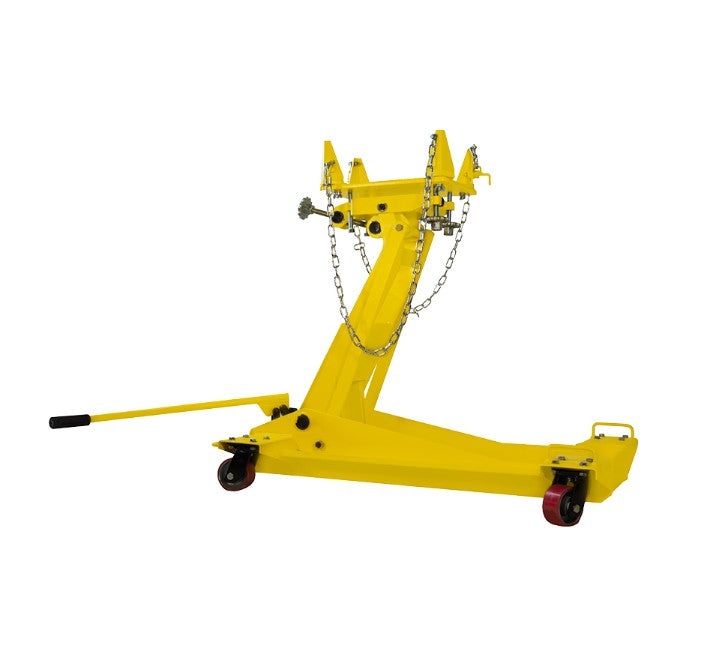

Esco 10812 Yellow Jackit 2.2 Ton Transmission Jack

The Yellow Jackit 2.2 Ton (4,400 lbs.) Transmission Jack is designed with heavy duty lifting in mind. Designed with maximum strength steel and a hefty weight capacity of 2.2 Tons (4,400 lbs.). The units also come with swiveling casters to make it easier to roll across concrete garage floors; making it easier on the technician when removing/installing the transmission, and many other maintain assistance. This product is designed for Heavy Duty Truck, Commercial Truck, Bus, Agricultural, Construction equipment and machinery. Made to Conform to ANSI Standards.

Features:

• Hydraulic System is protected with safety overload system
• Wide chassis design provides maximum stability
• Fully adjustable universal saddle, brackets and chain sling
• Four 4” swivel casters help move jack easily
• 360 degree rotatable pump handle for operation in any position
• Easy access to relief valve to lower the jack
• Sealed hydraulic unit prevents contamination

Specifications:

• Lifting Capacity | 2.2 Ton (4,400 lbs.)
• Min. Height | 8 1/2″ (216 mm)
• Max. Height | 34″ (864 mm)
• Forward Tilt | 15 Degrees
• Rear Tilt | 30 Degrees
• Lift Tilt | 12 Degrees
• Right Tilt | 12 Degrees
• Head Width | 12″ – 18″ (305 mm – 457 mm)
• Head Length | 16″ – 20″ (406 mm – 508 mm)
• Width | 26″ (660 mm)
• Length | 43″ (1092 mm)
• Weight | 355 lbs. (161 kg)
