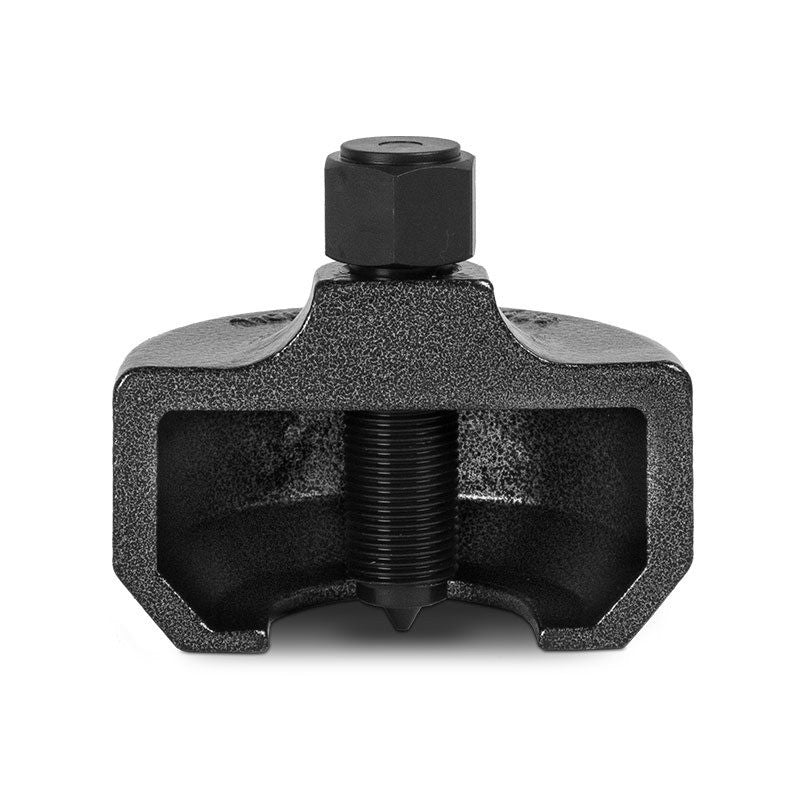

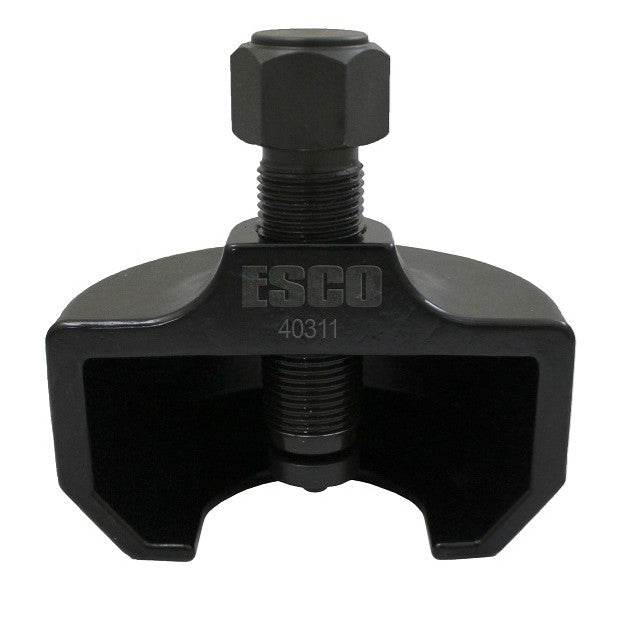

Esco 40311 Pitman Arm Puller

The ESCO Sheppard M100 Pitman Arm Puller is designed to safely and easily remove pitman arms from the output shaft on Sheppard M100 gearboxes.

Features:

• Eliminate dangerous hammering and cutting torch methods
• Designed for high capacity pulling with heavy-duty constructed casted steel
• Easy and simple design makes for simple slip on and instant results
• Can be used with impact gun (up to 3/4″)
• Designed to be used with most class 6-8 transportation trucks and equipment. (Brands such as Peterbilt, Mack, Volvo, Freightliner, Kenworth, and others)

Specifications:

• Application | Sheppard M100
• Drive Size | 1.25" (32mm)
• Material | Heavy duty casted steel
• Glove Opening | maximum of 4.165"
• Weight | 5 lbs. (2.27 kg)
