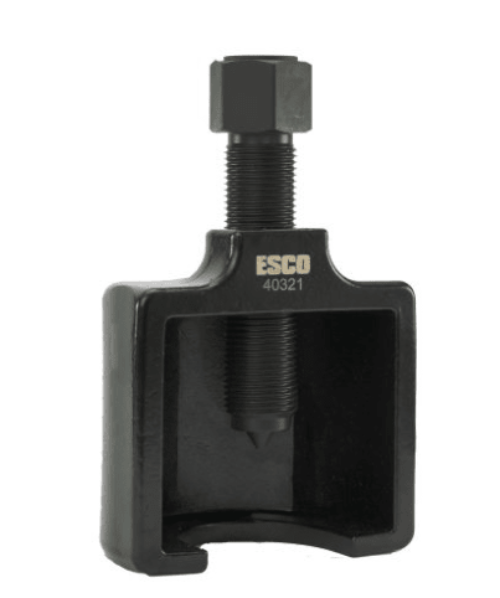

ESCO 40321 Medium Duty Pitman Arm Puller

The ESCO Pitman Arm Puller (Model 40321) is designed to remove difficult pitman arms on most medium-duty pitman arms on medium-duty trucks, transportation buses, and other vehicles. Manufactured out of a heavy-duty quality steel casting to withstand high capacity pulling and rigorous usage out in the field in all conditions.

Features:

• Maximum glove opening of 3.5 inches and 3 inches high.
• Eliminate dangerous hammering or cutting torch methods.
• Can be used with up to a ½ inch air impact wrench, hand ratchet, or breaker bar.
• Designed to be used on most class 3-5 trucks and equipment (commonly used vehicle types: Chevy 3500/5500, Dodge Ram 3500/5500, Ford F-350 / 550, Isuzu, and NPR).
• Guaranteed to easily remove even the most stubborn pitman arms on steering boxes for medium-duty trucks, school buses, and other vehicles with a nut release pitman arm.
• Made of high-quality heavy-duty steel capable of withstanding rigorous and daily use in shop environments.
• Limited Lifetime Warranty
• Designed to be used on most class 3-5 trucks and equipment (commonly used vehicle types: Chevy 3500/5500, Dodge Ram 3500/5500, Ford F-350 / 550, Isuzu, and NPR)

Specifications:

• Glove Size | 3 1/2 in. | 89mm
• Bottom Hole Opening Size | 2 1/4 in. | 57mm
• Impact Drive Size | 1 1/4 in. | 32mm
• Length of Screw | 5 in. | 127mm
• Weight | 5.4 lbs. | 2.5kg
• Packaging Dimensions | 8"l x 4.25"w x 5"h (203mm x 108mm x 127mm)
• Material | Heavy-Duty Casted Steel
