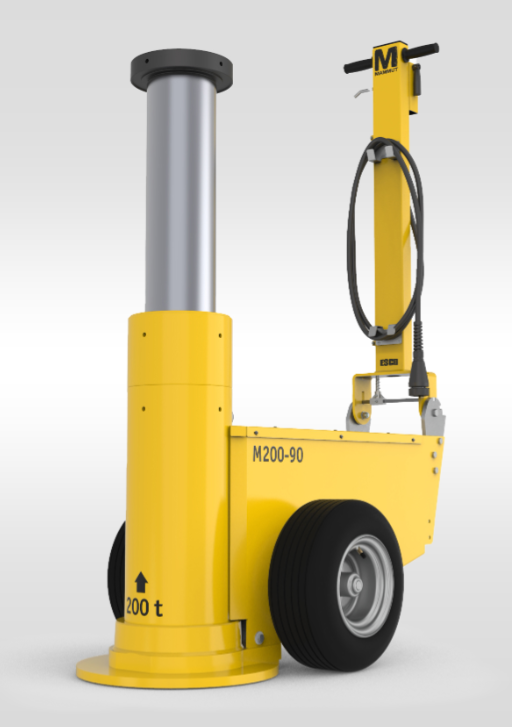

Esco 91045 Mammut Single Stage Air/Hydraulic Jack 200 Ton

The Mammut range of jacks offers service professionals a solution that is safe and easy to use, for all those operations to lift earthmoving, construction, quarry, and mining machinery, where maintenance requires professional skills and expertise. All models are air/hydraulic operated and equipped with a dual descent valve for greater control when bearing weight and automatic piston return; they can also be fitted with a manual emergency pump (on request).

Features:

• Lightweight, compact, and easy to handle/use design.
• Folding handle for easier transport and storage.
• Large wide pneumatic tires designed for use in extreme conditions.
• Special hook for transport and easy transport of jack.
• Standard remote control for lifting and lowering jack from a safe distance away from the load.
• 100% manufactured in Italy
• One Year Warranty

Specifications:

• Style | M200-90
• Capacity | 220 ton (200 t)
• Net Weight | 992 lb (450 kg)
• Working Air Pressure | 145-174 psi (10-12 bar)
• Air Consumption | 600 nl/min
• Max. Height | 57" (1450 mm)
• Min Height | 35.4" (900 mm)
• Number of Pistons | 1
• Stroke | 21.6" (550 mm)
• Application | Mine and oil field, Construction site, Industrial assembly, Agricultural, Railway applications, Military

Available Accessories (Sold Separately):

• 91029 7.875" Extension
• 91030 9.875" Extension
• 91031 11.875" Extension
• 91034 Left Extension Holder
• 91035 Right Extension Holder
• 91048 Safety Locking Device
• 91049 Tilting Plate
