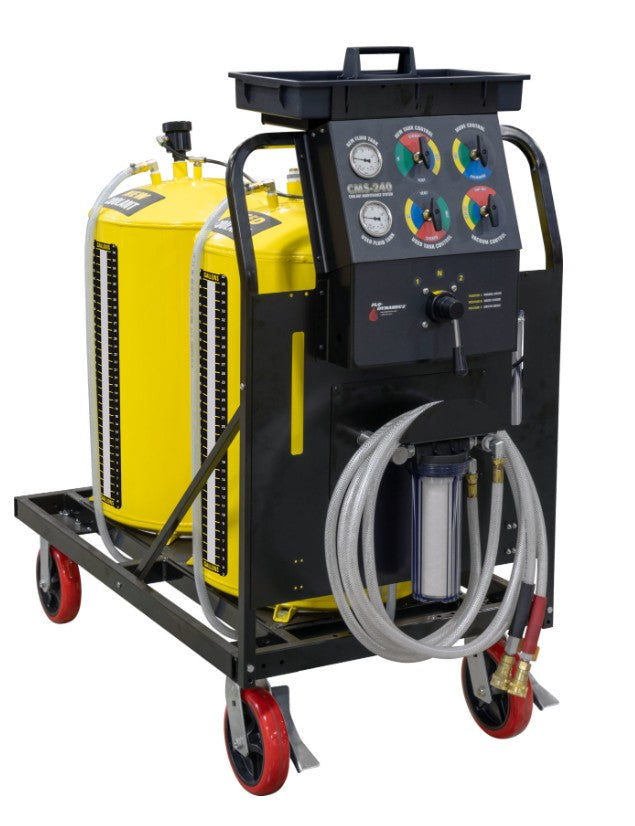

Flo-Dynamics CMS-240 Coolant Maintenance System

Efficiently and quickly service cooling systems — drain/fill/exchange
The Flo-Dynamics CMS-240 Coolant Maintenance System, with dual 40-gallon tanks, allows a technician to quickly drain, fill or exchange coolant from large capacity cooling systems in minutes without the need to air bleed. Using push/pull technology, the CMS-240 simultaneously uses pressure and vacuum, speeding up both the draining and filling processes. Refilling without the need to spend hours bleeding air from a cooling system is easy, using push/pull technology and a vehicle’s Flush-Face Quick Connect Coupler cooling system adapter. Without the need to use a drain pan, you can safely and quickly drain a 14-gallon cooling system in approximately 10 minutes, and refill without air pockets in approximately 13 minutes. With two tanks — one for “used” and the other for “new” coolant — a technician can fully exchange coolant in a 14-gallon system in less than 14 minutes without the need to switch hoses or perform hours of bleeding air. The CMS-240 will save repair time costs while creating a safer shop environment by preventing coolant spills.

Features:

• Dual 40-gallon tanks with fluid level sight tubes

• Easy mobility cart with heavy duty 8" casters

• Operates on shop air – no 120V or 12V power required

• Push/pull technology enables you to:
  -Drain a 14-gallon cooling system in approximately 10 minutes
  -Fill a 14-gallon cooling system without air pockets in approximately 13 minutes
  -Perform a coolant exchange in <14 minutes, fully air bled

• Easily switch service hoses with the turn of a valve

• Filters and cleans coolant when draining a system

• Easy to see coolant level in tank

• Internally coated tank prevents rust contamination

• 13' polyurethane service hoses

• Flush-face quick connect couplers available

Adapters Included:

• Upper Cooling System Adapter

• Volvo / Mack Coolant Adapter

• Peterbilt / Kenworth Coolant Adapter

Specifications:

• Dimensions | 56"h x 28"w x 54"d

• Shipping Weight | 288 lb.

• Fluid Tanks | Twin 40 gallons

• Power | 115 psi shop air

• Hose Length | 13′ outside of machine
