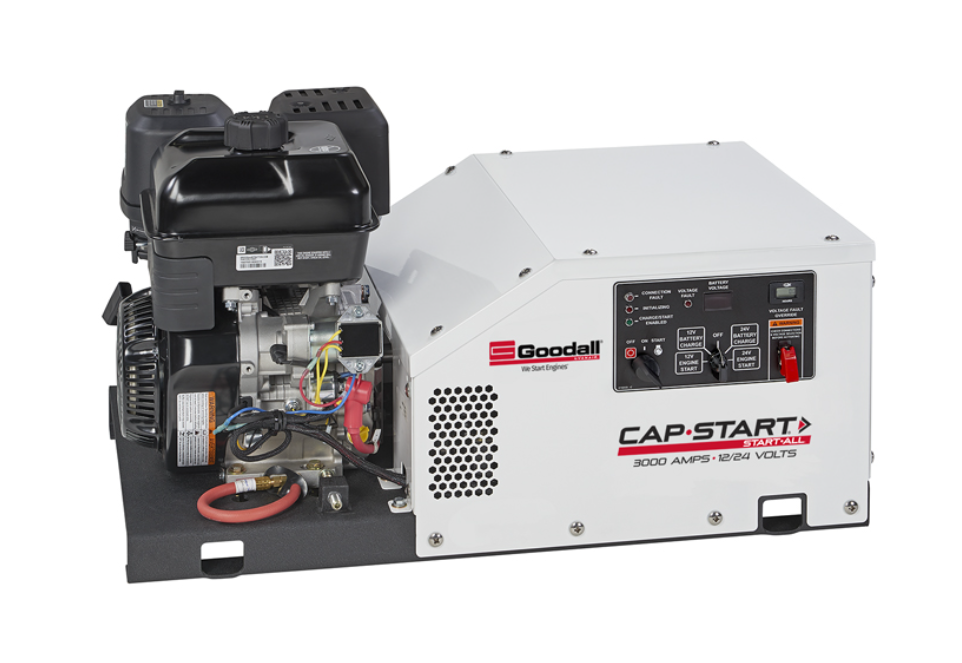

Goodall CapStart 051538 3000 AMP, 250 AMP Alternator, 12v

Inevitably, batteries fail, but that doesn’t mean work has to stop. The all-new revolutionary Vanair Cap Start 3000 delivers instantaneous starting power for all of your vehicle needs, including heavy-duty machinery, company fleets, and off-road vehicles. Completely portable, the Cap Start 3000 goes wherever you need it to go. Plus, with our innovative fast-charging Vanair Super Capacitor (VSC), you can now start and charge vehicle after vehicle within seconds of each other, eliminating lengthy lag time.

Features:

• 3000+ AMPS of Instantaneous Starting Power
• 12V Charging and Starting Capabilities
• 240 AMP 3-Stage Alternator for Fast Recharging
• Industry-leading Vanair Super Capacitor (VSC)
• Cap Start 3000 + Air Also Available, Featuring a 24 CFM Reciprocating Air Compressor

Additional Features:

• Performance |
• Vanair Super Capacitor (VSC)
• 3000 + AMPS Starting Capability
• 12V Charge & Start
• 240 AMP 3-Stage Alternator
• 14.5 HP Briggs & Stratton
• Heavy-Duty Belt Drive System
• Control Panel |
• Engine Start/Stop Function
• Hour Meter
• Voltage Output Display
• Charge/Start Mode Selector
• Mode Indicator Lights
• System Fault Lights
• Starting Cables |
• 30 Feet of 3/0 Polar-Grade Cable
• UL/AWG Specification Compliant
• Fine Stranded, Flexible Copper Wire
• Cold Weather Flexibility
• Tangle Resistant
• Chemical, Abrasion and Water Resistant
• Extruded Polarity Stripe for Safety Identification
• Convenience |
• Integrated Lifting Points
• Tough, Powder Coated Sheet Metal
• Corrosion-Resistant Galvanneal Steel Canopy
• Anderson Connector at Machine
• Gasoline Fuel
• Safety |
• Weather-Protected Electrical Enclosure
• Reverse Polarity Protection
• Open, Closed or Low Circuit Safety
• Low Engine Oil Pressure Shut Down
• Engine Over Temperature Shut Down
• Smart, Self-Regulating 3-Stage Charging System

Specifications:

• 12V Starting | Up to 3240 AMP Starting Capability
• Fuel Capacity | Integrated 1.725 Gallon Tank
• Fuel Type | Gasoline
• Engine Type | 14.5 HP* Briggs & Stratton
• Drive System | V-Belt
• Battery | Integrated
• DC Alternator | 240 AMP, 12VDC
• Dimensions with Fittings | 36"l x 21"w x 20"h
• Dry Weight | 295 lbs

Options/Accessories:

• Industrial 3/O Starting Cables (25, 30 & 35 Ft. Lengths)
• Vibration Isolators
• Cable Kits for Connection to Chassis Battery
• Maintenance Kit
• Cold Weather Kits
• 24 CFM Air Compressor
