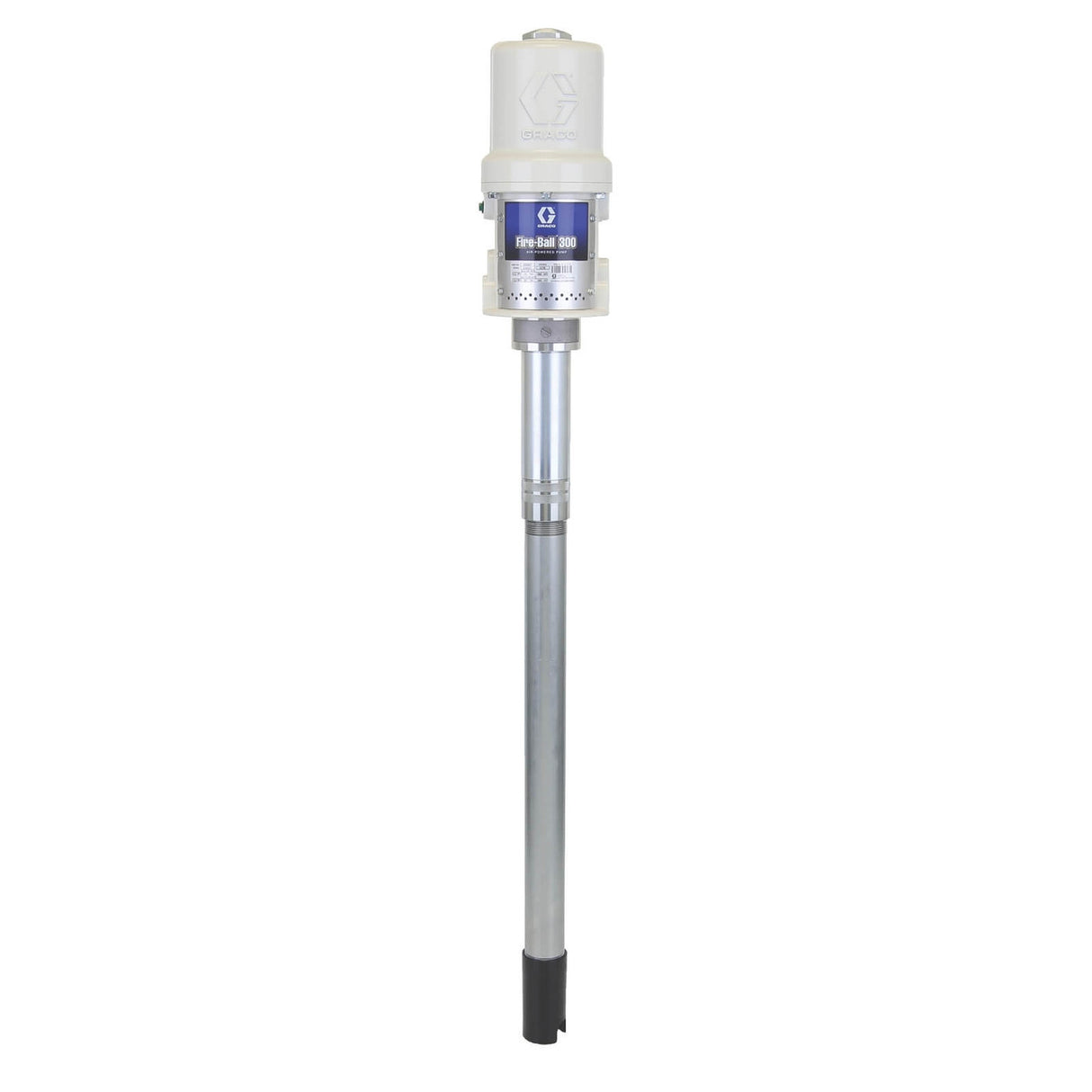

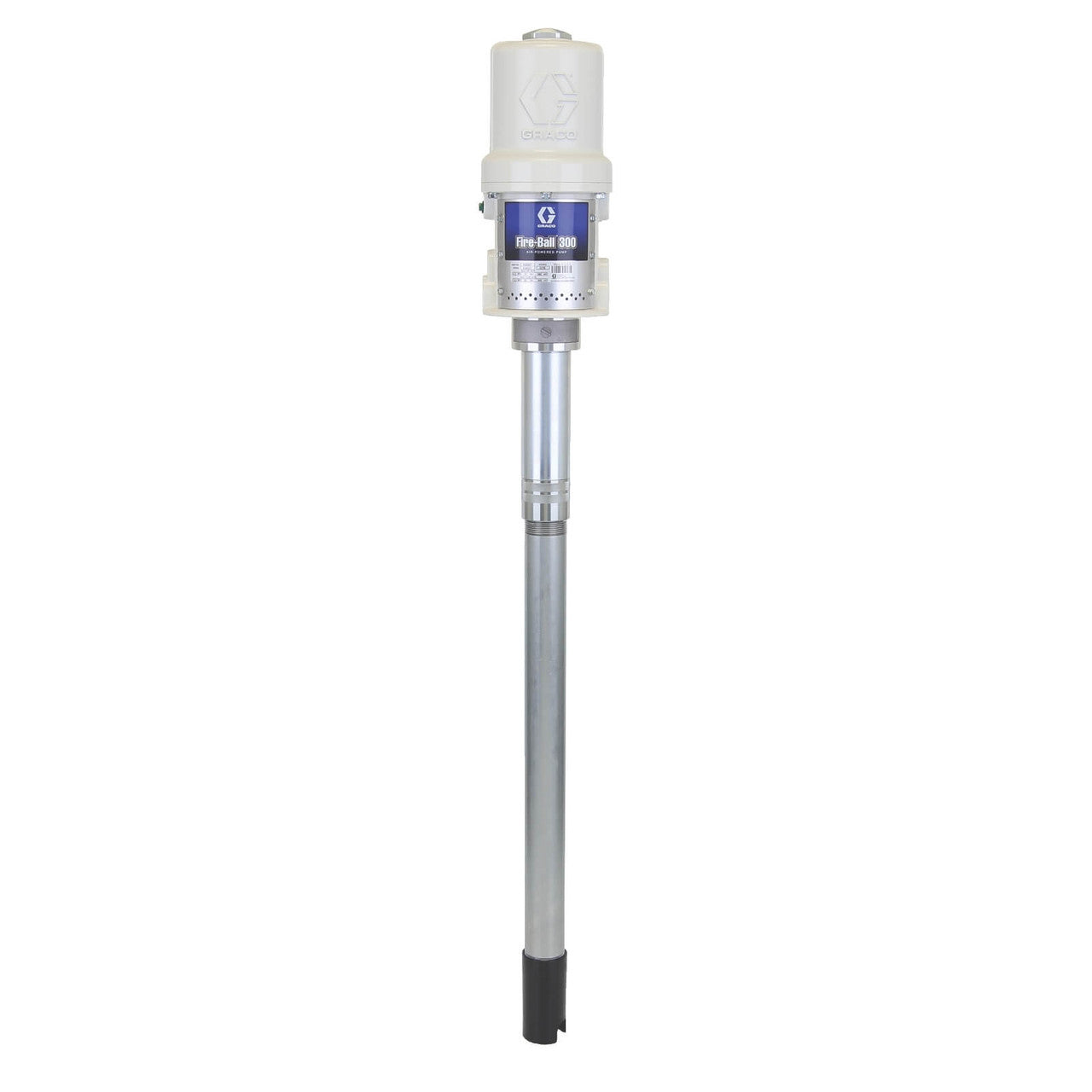

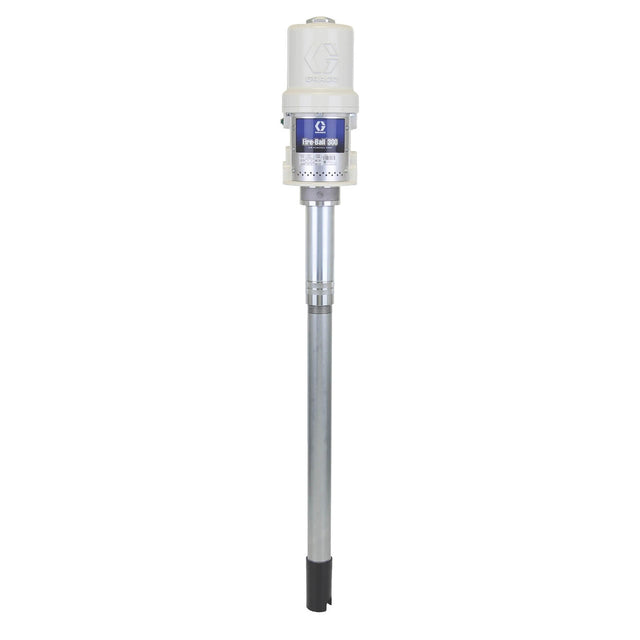

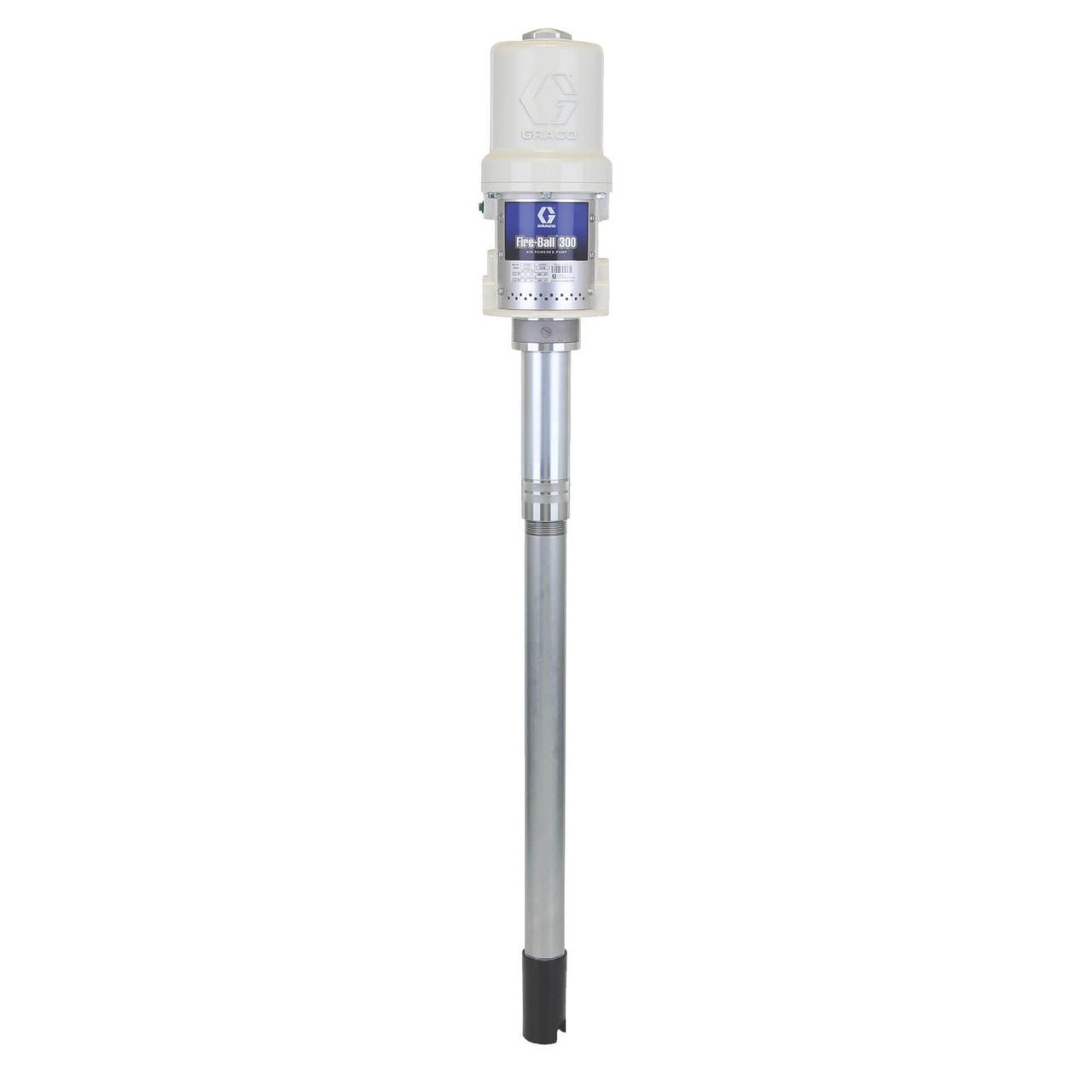

Graco 203857 Fire-Ball 300 Series 5:1 Oil Pump, 55 Gallon Drum Size - For Cover Mount

A three inch differential air motor ensures smooth pumping and the smooth double-acting pump design provides reliable fluid flow and accurate dispense.

Install the Fire-Ball 300 5:1 in high pressure, medium volume oil transfer applications such as automotive dealerships, fast lube centers, and service shops.

Features:

• Durable | Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs | Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life | In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Reduce Downtime | Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing | Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
• Reduced Icing | Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant | Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

For Use With:

• Petroleum- and synthetic-based oils (motor, gear and ATF)

Specifications:

• Air Inlet Size (in) | 3/8
• Air Inlet Thread Gender | Female
• Air Inlet Thread Type | NPT
• Air Motor Effective Diameter (in) | 3
• Application | Industrial
• Compatible Material | Oil
• Cycles Per Gallon | 30
• Fluid Inlet Size (in) | 1-1/2
• Fluid Inlet Thread Gender | Female
• Fluid Inlet Thread Type | NPT
• Fluid Outlet Size (in) | 1/2
• Fluid Outlet Thread Gender | Female
• Fluid Outlet Thread Type | NPT
• Maximum Air Consumption (SCFM) | 25
• Maximum Air Inlet Pressure (psi) | 180
• Maximum Continuous Cycle Rate (CPM) | 70
• Maximum Intermittent Cycle Rate (CPM) | 70
• Maximum Working Pressure (MPa) | 6.2
• Maximum Working Pressure (psi) | 900
• Power Type | Pneumatic
• Pump Ratio | 5:1
• Sound Power Level (dB(A)) | 85.6
• Sound Pressure Level (dB(A)) | 77.8
• Type | Pneumatic Piston Pump
• Weight (lb) | 17
• Wetted Material |
• Steel
• Polyurethane
• Aluminum
• Buna-N
