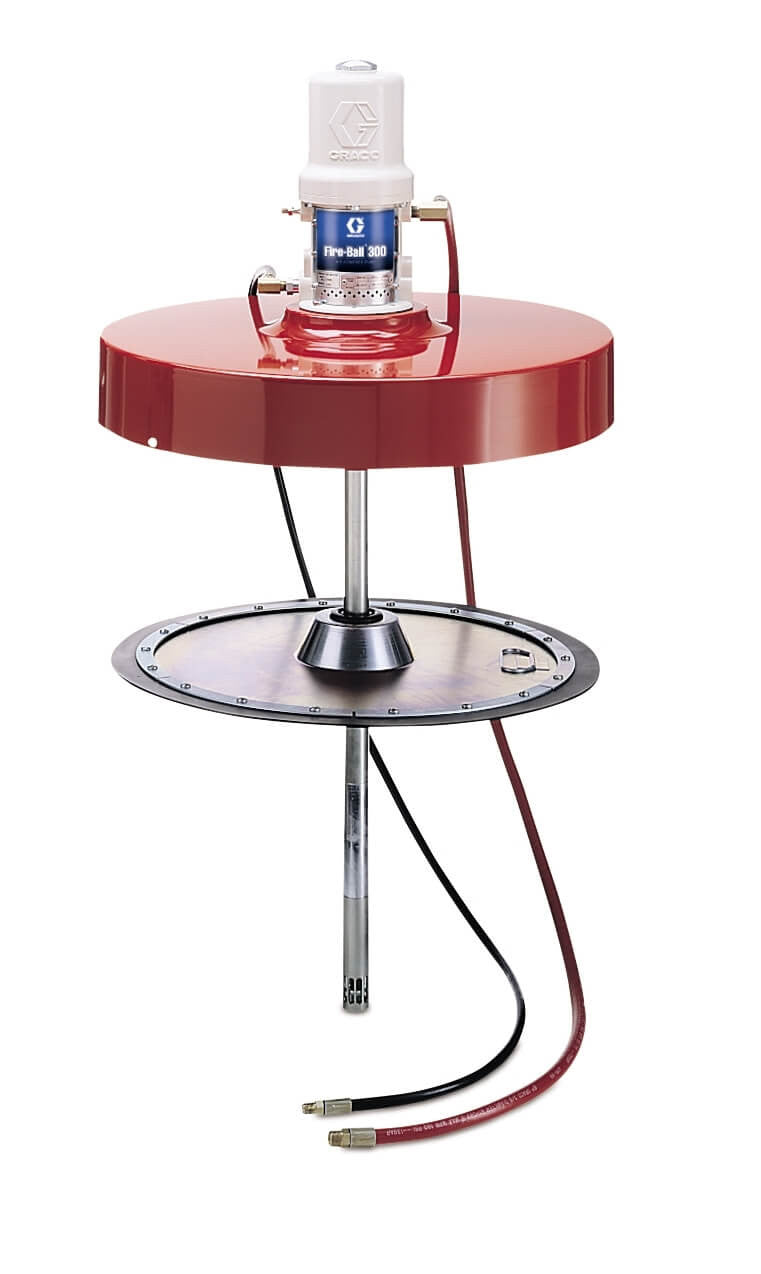

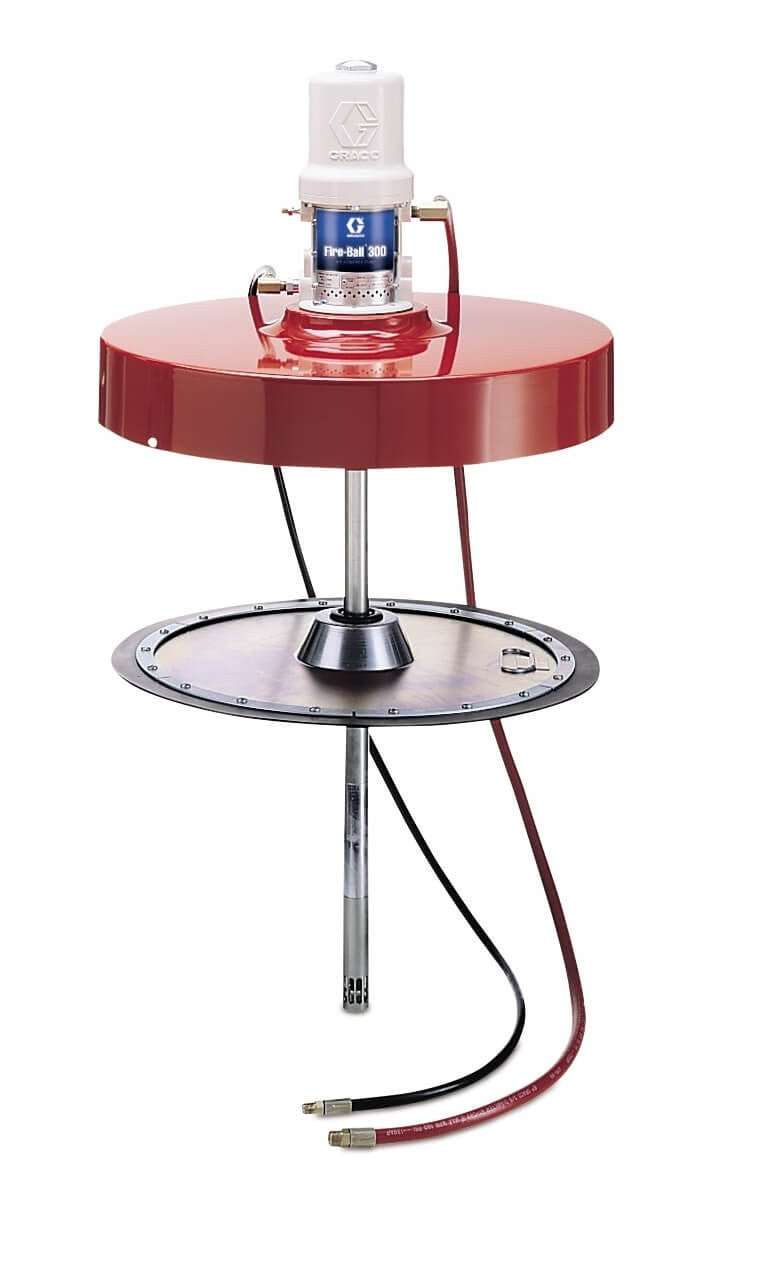

Graco 225016 Fire-Ball 300 Series 50:1 400 lb. Grease Pump Package Stationary Supply Package

A three inch differential air motor ensures smooth pumping and the smooth double-acting pump design provides reliable fluid flow and accurate dispense.

Install the Fire-Ball 300 50:1 in grease dispense applications.

Features:

• Durable | Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs | Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life | In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Reduce Downtime | Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing | Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
• Reduced Icing | Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant | Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Includes:

• Fireball 50:1 300 Pump
• Hose and Fitting Kit
• Cover
• Follow Plate

Specifications:

• Air Inlet Size (in) | 3/4
• Air Inlet Thread Gender | Female
• Air Inlet Thread Type | NPT
• Application | Industrial
• Compatible Material | Grease
• Fluid Inlet Thread Gender | Female
• Fluid Inlet Thread Type | NPT
• Fluid Inlet Type | Slotted
• Fluid Outlet Size (in) | 1/4
• Fluid Outlet Thread Gender | Female
• Fluid Outlet Thread Type | NPT
• Maximum Air Working Pressure (psi) | 140
• Maximum Working Pressure (psi) | 8400
• Motor Type | Pneumatic
• Mount Location | Drum Mount
• Power Type | Pneumatic
• Pump Ratio | 50:1
• Pump Weight (lb) | 22
• Series | 300
• Type | Piston Pump Package
• Wetted Material |
• CS
• Delrin
• Buna-N
• Polyurethane
