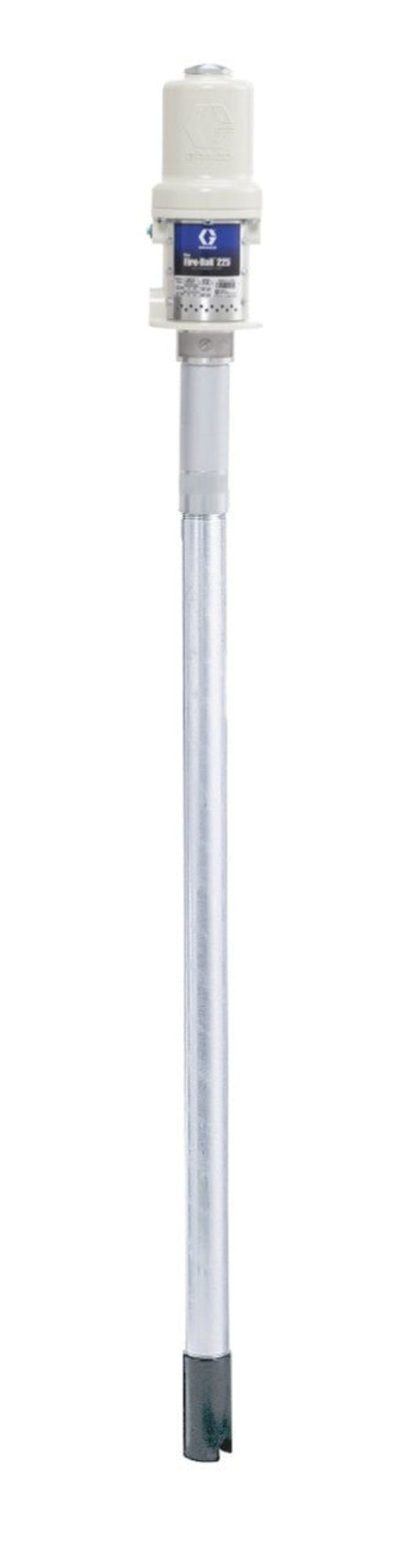

Graco 248097 Mini Fire-Ball 225 3:1 Universal Size Oil Pump with Suction Tube and Bung Adapter

You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

The Mini Fire-Ball 225 3:1 is perfect for medium pressure, low volume oil applications.

Features:

• Durable | Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs | Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life | In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Reduce Downtime | Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing | Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
• Reduced Icing | Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant | Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

For Use With:

• Petroleum- and synthetic-based oils (motor, gear and ATF)

Includes:

• Hose Installation Kit
• Drum Cover
• Air Regulator

Specifications:

• Air Inlet Size (in) | 3/8
• Air Inlet Thread Gender | Female
• Air Inlet Thread Type | NPT
• Air Motor Effective Diameter (in) | 2.25
• Application | Industrial
• Compatible Material | Oil
• Cycles Per Gallon | 43.5
• Fluid Inlet Size (in) | 1-1/2
• Fluid Inlet Thread Gender | Female
• Fluid Inlet Thread Type | NPT
• Fluid Outlet Size (in) | 1/2
• Fluid Outlet Thread Gender | Female
• Fluid Outlet Thread Type | NPT
• Material | Aluminum, Buna-N, Polyurethane, Rulon, Steel
• Maximum Air Consumption (SCFM) | 20
• Maximum Air Inlet Pressure (psi) | 180
• Maximum Continuous Cycle Rate (CPM) | 100
• Maximum Working Pressure (MPa) | 3.7
• Maximum Working Pressure (psi) | 540
• Portable | Portable
• Power Type | Pneumatic
• Pump Ratio | 3:1
• Sound Power Level (dB(A)) | 85.6
• Sound Pressure Level (dB(A)) | 77.8
• Type | Pneumatic Piston Pump
• Weight (lb) | 16
• Wetted Material | Steel, Polyurethane, Aluminum, Buna-N
