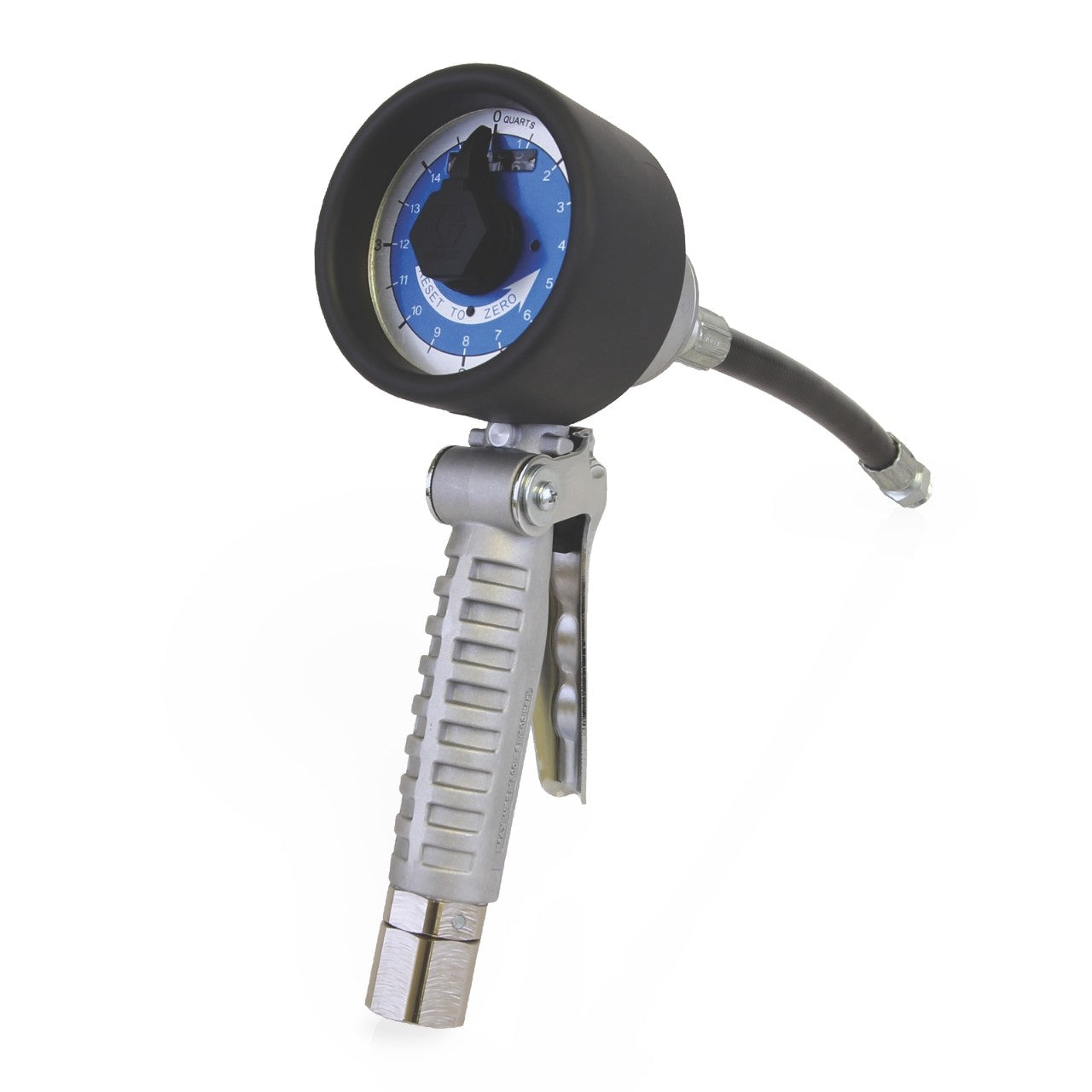

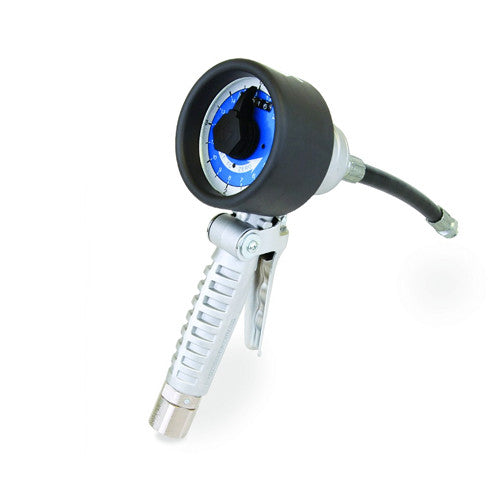

Graco 24V034 16 Quart NON Pre-Set Meter (Replaces 256556)

More Uptime to Increase Your Bottom Line Graco offers a family of engineered meters, focused on delivering a long-life, reliable solution. Each model has been vigorously tested to ensure the highest performance for your demanding applications.

Accurate dispensing for a wide variety of vehicle or machine service applications:

• Balanced, lightweight, rugged construction, and comfortable grip
• Non-resettable totalizing register helps manage material usage
• Handles a variety of petroleum and synthetic based oils and anti-freeze
• Ideal for indoor and outdoor use

Typical Application:

• Metered oil dispense
• Automotive dealerships
• Heavy-duty dealerships
• Fast lube centers
• Fleet service facilities
• Service shops
• In-plant
• Lube trucks
• Mining

Typical Fluids Handled:

• Petroleum and synthetic based oils
• Anti-freeze (Glycol)
• Transmission fluid
• Hydraulic oil

Features:

• Manual, NPT connection, 4/16 quart
• Balanced, lightweight, rugged construction with a comfortable grip
• Non-resettable totalizing register helps manage material usage
• Handles variety of petroleum and synthetic based oils and anti-freeze
• Flexible spout
• Ideal for indoor or outdoor use

Specifications:

• Maximum Flow* | 8 gpm (30.2 lpm)
• Minimum Flow* | 0.28 gpm (1.0 lpm)
• Maximum Operating Pressure | 1500 psi (103 bar)
• Operating Temperature Range | -50-160º F (-45-70º C)
• Accuracy* | ± 1%
• Weight | 3.5 lb (1.6 kg)
• Inlet | 1/2 NPT, 1/2 BSPP, 1/2 BSPT

*Tested with 10W motor oil. Minimum/maximum flow rates will vary with fluid viscosity.
