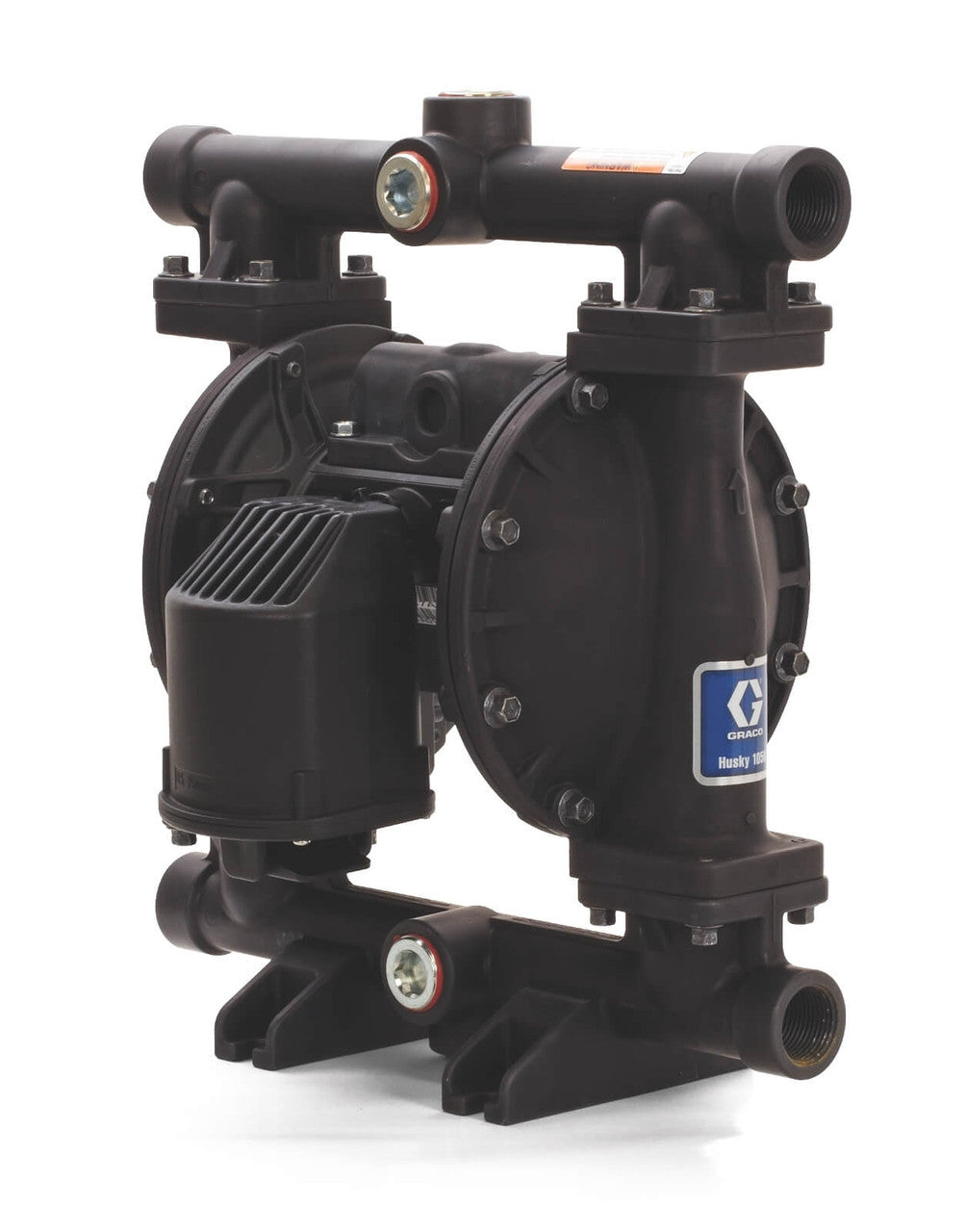

Graco 647648 Husky 1050 Series Air-Operated Double Diaphragm Transfer Pump for Fuel, TPE/AC

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

Features:

• Longer Diaphragm Life - Up to 5x longer diaphragm life for less maintenance and downtime
• Modular Air Valve - Stall-free, low pulsation operation provides smooth and rapid changeover
• One-Piece Center Section - Eliminates air leaks for more efficient operation
• Four Bolt Joint Design - Bolted design provides even sealing pressure for leak-free operation
• Multiple Ports - Increased number of ports for installation flexibility
• Optional Features - DataTrak (Runaway protection and tracks material usage), Pulse Output (Cycle count capability)
• Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
• 30% more efficient than the market leader
• 20% increase in fluid flow compared to the Husky 1040

Specifications:

• Air Exhaust Port Size (in) | 3/4
• Air Exhaust Port Thread Gender | Female
• Air Exhaust Port Thread Type | NPT
• Air Inlet Size (in) | 1/2
• Air Inlet Thread Gender | Female
• Air Inlet Thread Type | NPT
• Application | Industrial
• Ball Material | Acetal
• Center Section Material | Aluminum
• Compatible Material | Fuel
• Connection Type | Threaded
• Diaphragm Material | TPE
• Fluid Inlet Size (in) | 1
• Fluid Inlet Thread Gender | Female
• Fluid Inlet Thread Type | NPT
• Fluid Outlet Size (in) | 1
• Fluid Outlet Thread Gender | Female
• Fluid Outlet Thread Type | NPT
• Fluid Section Material | Aluminum
• For Use With Fuel | Transfer
• Manifold O-Ring Material | None
• Material | Aluminum
• Maximum Air Consumption (SCFM) | 25
• Maximum Air Pressure (MPa) | 0.35
• Maximum Air Pressure (psi) | 50
• Maximum Cycle Rate (CPM) | 280
• Maximum Flow Rate (GPM) | 38
• Maximum Fluid Pressure (MPa) | 0.35
• Maximum Fluid Pressure (psi) | 50
• Maximum Solid Size (in) | 0.125
• Overall Height (in) | 15.9
• Power Source | Air
• Pump Ratio | 1:1
• Seat Material | TPE
• Standards Met | UL
• Type | Pneumatic Diaphragm Pump
• Weight (lb) | 23
• Wetted Material | Aluminum, TPC-ET, Acetal, PTFE, Buna-N
