Graco | SKU:
GRAXDM65B
Graco XDM65B Oil Hose Reel: 1/2" x 50'
$1,275.00
Unit price
/
Unavailable
Graco XDM65B Oil Hose Reel: 1/2" x 50' is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489

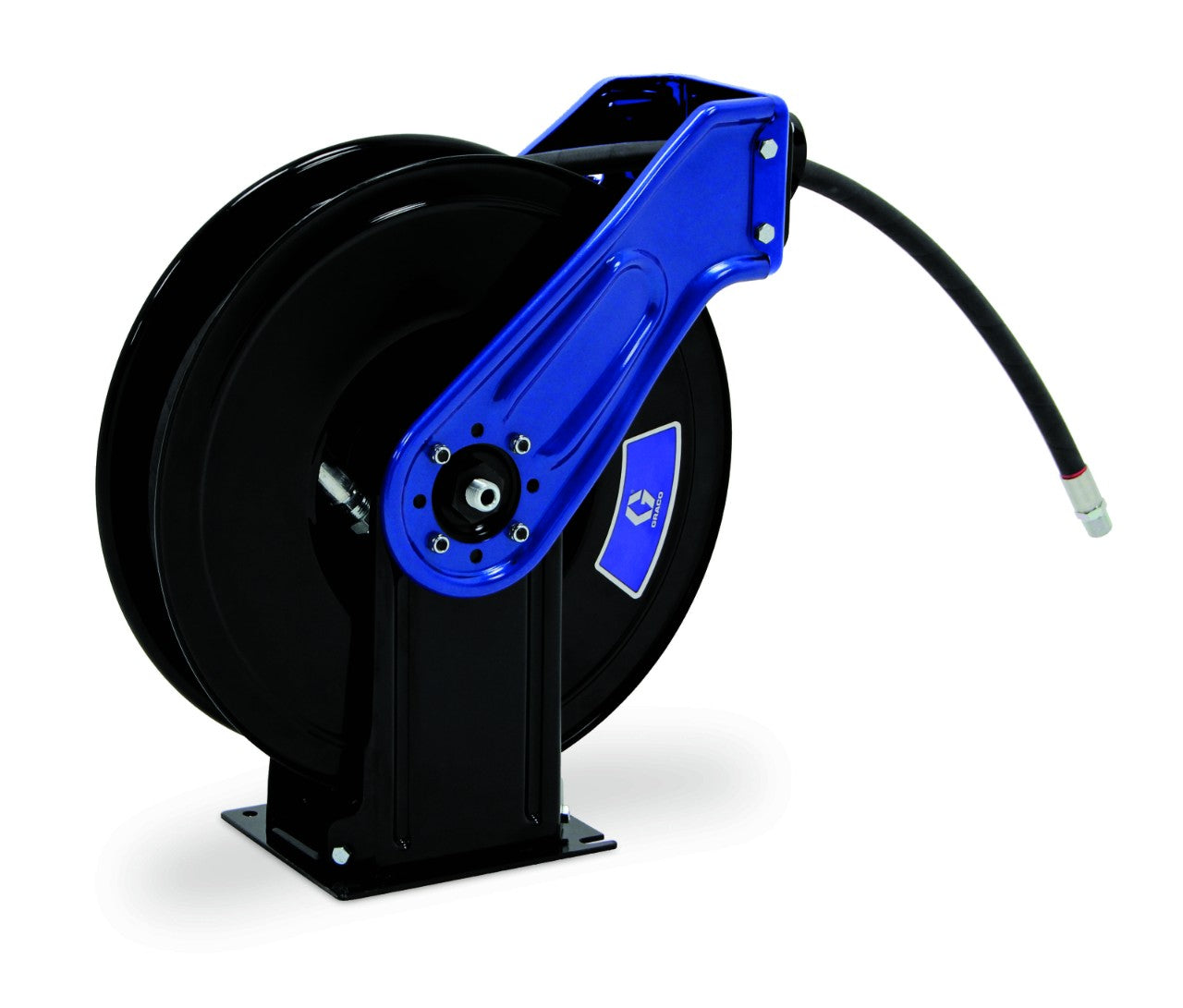

Graco XDM65B Oil Hose Reel: 1/2" x 50'
XD Series Hose Reels
Petroleum and Synthetic-based Oils, 1/2" x 50'
Specifications:
|
Applications
|
Size
|
Color
|
Pressure
|
Hose
|
Connection Size
|
Operating
Temp. |
||
|
psi (bar)
|
id
(in) |
Length
ft (mt) |
Inlet
npsm (m) |
Outlet
|
||||
|
Petroleum and Synthetic-based Oils
|
20
|
Metallic Blue
|
2,000 (138)
|
1/2
|
50 (15)
|
1/2
|
1/2 npt (m)
|
-20 - 190 F
(-28 - 87 C) |
Optional accessories: 247714 valve
Dimensions:
| XD SERIES SIZE 20 | |
| A | 7.5 in (196mm) |
| B | 18.1 in (460 mm) |
| C | 23.4 in (594mm) |
| D | 20.0 in (508mm) |
| E | 21.0 in (533 mm) |
| F | 25.2 in (640 mm) |
XD SERIES
High performance hose reels designed for heavy-duty jobs
Graco's new line of hose reels feature Graco durability, performance and value built into every reel. With its new metal spool and single or dual pedestal frames, the compact XD Series is ideal for rugged, indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance and heavy-duty service trucks.
Features:
- Designed for robust/heavy-duty applications, such as mobile lube trucks or large equipment service, yet with a narrow footprint to fit more reels into small spaces
- Dual pedestal frame provides increased strength for extreme-duty applications
- Long lasting spring is sealed for protection against the weather
- Durable steel spool rides on sealed roller bearings to ensure trouble-free performance
- Available in four colors. Metallic blue is standard.
- Available with arms removed for bulkhead mounting.
- Weight 45 lbs
