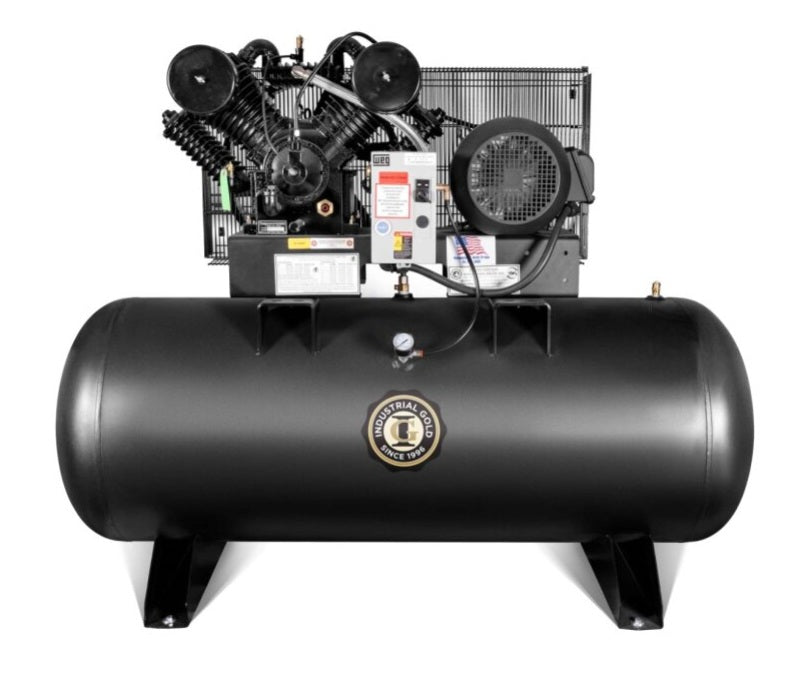

Industrial Gold CI1021E120H-P 10HP Platinum Series Industrial-duty Electric Compressor

The IG Industrial Series reciprocating compressors are designed for heavy commercial and industrial applications. Low rpm pumps provide reliable air for your applications and are manufactured for durability and long life. All of our units feature some of the most heavy duty components found in piston compressors today.

IG Platinum Series compressors feature a unique option package that makes our compressors simpler to maintain while delivering higher quality air.

Features:

• No Start-Up Kit Required
• Optional 5-Year Pump Warranty
• Access to compressor valves without compressor head removal
• All UL electrical controls
• ASME tested powder coated steel tank
• Auto start stop
• Bearings on both ends of the crank shaft
• Centrifugal unloader
• Disk and spring valves
• Fully enclosed belt guard
• Heavy-duty air filter
• Heavy-duty two-stage solid cast iron pump
• Industrial grade electric motor
• Magnetic starter mounted and wired
• Needle bearings, and inserts on rods
• Stainless steel flex air lines
• Swedish steel valves
• Torrington needle bearings
• 2-grove B width motor pulley
• 2-piece tank top plate design

Platinum Model Features:

• All basic features
• Automatic tank drain
• Belt guard after cooler
• Low oil monitor
• Tank discharge ball valve
• Vibration pads
• Freight pre-paid in the 48 states & southern Canada

Specifications:

• Model | CI1021E120H-P
• Phase | 1
• Voltage | 208-230
• Tank | 120 Gallon Horizontal
• Op Pressure | 145-175
• CFM | 34
• Dimensions (LxWxH) | 70" x 26" x 45"
• Amp Draw 230 Volt | 42
• Amp Draw 480 Volt | N/A

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
